Insignia NS-UZ17XSS9 Quick Setup Manual

QUICK SETUP GUIDE
Wi-Fi Connected
17 / 21 Cu. Ft.

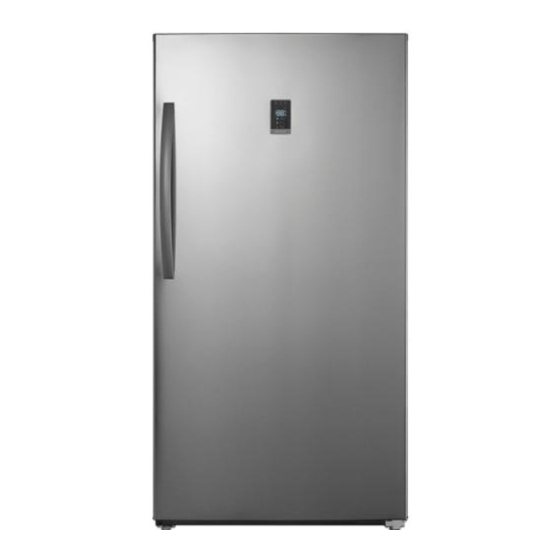

Upright Freezer
NS-UZ17XWH7 / NS-UZ21XWH7 /
NS-UZ17XSS9 / NS-UZ17XWH7-C
PACKAGE CONTENTS
• 17 or 21 cubic foot upright freezer with Wi-Fi connection
• Door handle, screws, and hex wrench
• Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, enter your model in the search box, then press ENTER. Next to
Features, click Support & Downloads, then next to User Guide, click the language you want.
Before using your new product, please read these instructions to prevent any damage.
SETTING UP YOUR FREEZER Installing the door handle
1 Unplug the freezer.
Before using your freezer
2 Screw the extended-head screws into the door
• Remove the exterior and interior packing.
holes with a Phillips screwdriver. Do not
• Let the freezer stand upright for approximately
overtighten. The screw heads should extend above
two hours before connecting it to power.
the surface of the door.
• Wipe the inside.
• When moving your freezer, do not tilt it beyond
45° from upright.
Finding a suitable location
• This freezer is designed to be free standing only,
and should not be recessed or built-in.
• Place your freezer on a floor that is strong enough
to support the freezer when it is fully loaded.
• If your freezer is located too far from your Wi-Fi
router, the signal may be too weak for a good
connection. If that's the case, a Wi-Fi range
extender should improve connectivity.
• Allow 7.9 inches (20 cm) of space between the
sides of the freezer and the walls, 3.9 inches (10
cm) between the back of the freezer and the wall,
and 11.8 inches (30 cm) between the top of the
freezer and the ceiling.
• If you locate the freezer next to a fixed wall, allow
sufficient space on the hinge side for the door to
3 Loosen the hex screws on the top and bottom of
swing open.
the handle with the hex wrench (provided) so that
• Locate the freezer away from direct sunlight and
you can fit the handle over the extended head
sources of heat, such as a stove, heater, or radiator.
screws in the door.
Direct sunlight may affect the acrylic coating and
heat sources may increase electrical consumption.
Extremely cold temperatures may also prevent the
freezer from performing properly.
• Avoid locating the freezer in moist areas.
Leveling your freezer
• If the feet are not adjusted during installation, the
doors may not close or seal properly, causing
cooling, frost, or moisture problems.
• To level your freezer, rotate the leveling feet
clockwise (to raise) the freezer or
counter-clockwise (to lower). The front of the
freezer should be slightly higher than the back.
4 Place the door handle over the heads of the
screws, then tighten the hex screws.
USING YOUR FREEZER
1 Plug in your freezer. Wait for 30 minutes, then
open the freezer door to determine if the freezer
is working properly.
2 Press and hold the Lock button for three
seconds, then + or – to set the temperature
inside the freezer. A beep sounds when the
maximum or minimum temperatures are
reached.
Using the Lock button
• To prevent accidental activation, the control
panel automatically locks after 30 seconds of
inactivity. To use the control panel, press and
hold the Lock button for three seconds.
Switching between Freezer and Refrigerator
modes
This freezer has an advanced design feature that
lets you change it from a freezer to a refrigerator.
You can only use the control panel to switch
modes. You cannot use the Insignia Connect App
to switch modes.
1 Press and hold the Lock button for three
seconds.
2 Press and hold the Freezer/Fridge button for
three seconds. The panel beeps and the indicator
changes to the new mode.
Quick Freezing foods
• The quick freeze mode lowers the temperature
below the normal operating temperature to
quickly freeze foods. You can only use the control
panel to quick freeze foods. You cannot use the
Insignia Connect App.
1 Press and hold Lock for three seconds.
2 Press the Quick Freeze button to enter quick
freeze mode. The blue snowflake turns on.
Hex screws are here.
• The quick freeze mode turns off after three hours
Extra hex screws are provided.
if the temperature falls below -13° F (-25° C). If
the temperature does not fall below -13° F (-25°
C), the quick freeze mode turns off after 24 hours.
You can press the button a second time to exit
quick freeze mode.
Switching between Fahrenheit and Celsius
Using the control panel on the freezer
1 Press and hold Lock for three seconds to unlock
the control panel.
2 Press and hold + and – for three seconds to
switch settings.
INTRODUCING THE INSIGNIA
CONNECT APP
Download the Insignia Connect app to use
additional features such
as open-door and temperature alerts.
App download is optional – your freezer
works normally without it!
APP FEATURES
• Simple setup requires no additional hardware or
hubs
• Adjust temperature and Quick Freeze
notifications from your phone or tablet
• Insignia Connect app keeps you in control
wherever you are
SYSTEM REQUIREMENTS
• Home Wi-Fi network
• Insignia Connect app (free download at
connect.bestbuy.com/setup)
The Insignia Connect app tracks status information for all
your smart home devices in one place. Signing into a Best
Buy account is required for remote access and to keep
your data secure.
• To control this HomeKit-enabled accessory, iOS
10.3.2 or later is recommended.
Compatibility: iOS 10.3.2 or later
Android 6.0.1 Marshmallow or later
SETTING UP YOUR CONNECTED FREEZER
1 Connect your mobile device to a Wi-Fi network.
2 Type connect.bestbuy.com/setup in the search
bar of your device's browser and follow the
on-screen instructions to download the app.
3 Open your app and follow the on-screen
instructions to complete setup.
