Installation Guide – AC Surge Protection
DANGER
Electrical Shock or Burn

Install only in a restricted access enclosure or control cabinet that requires a key or tool to open.

This SPD should only be installed and serviced by qualified electrical personnel.

All National and Local Electric Codes must be observed.

Confirm that the SPD is rated for the voltage of the application.

Before installation, turn off all power to equipment to prevent accidental electrical shock or
injury.

Replace all covers and doors before restoring power to this equipment.

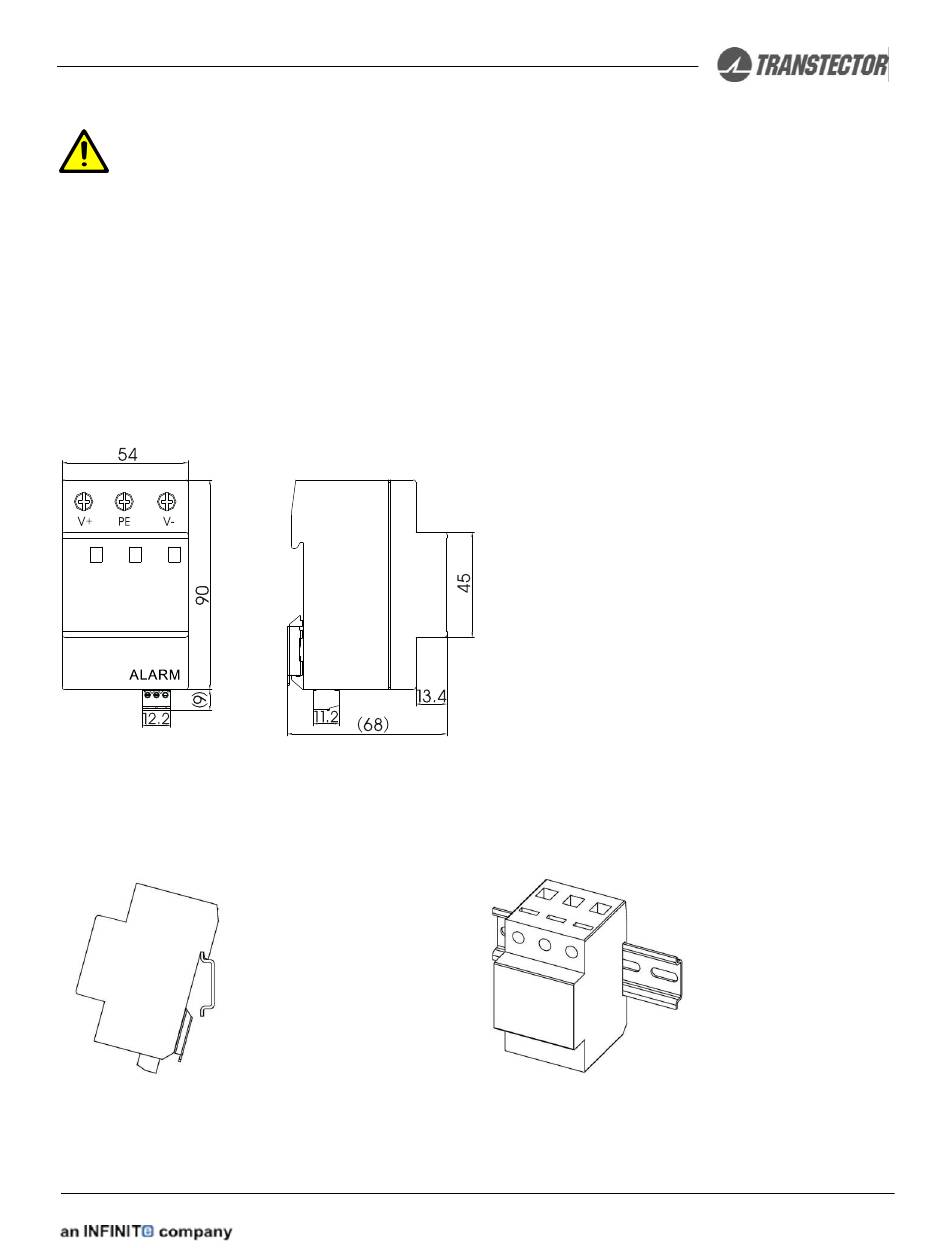

Structure and Dimensions
2
Figure 1. I R SPV 1000 3-40
Attaching the SPD to the DIN Rail
Position the SPD on the top edge of the 35mm DIN rail, then press down until a 'click' is heard.
Figure 2. Locating on DIN Rail
1104-11-101-M Rev D
Figure 3. Ready for Wiring
