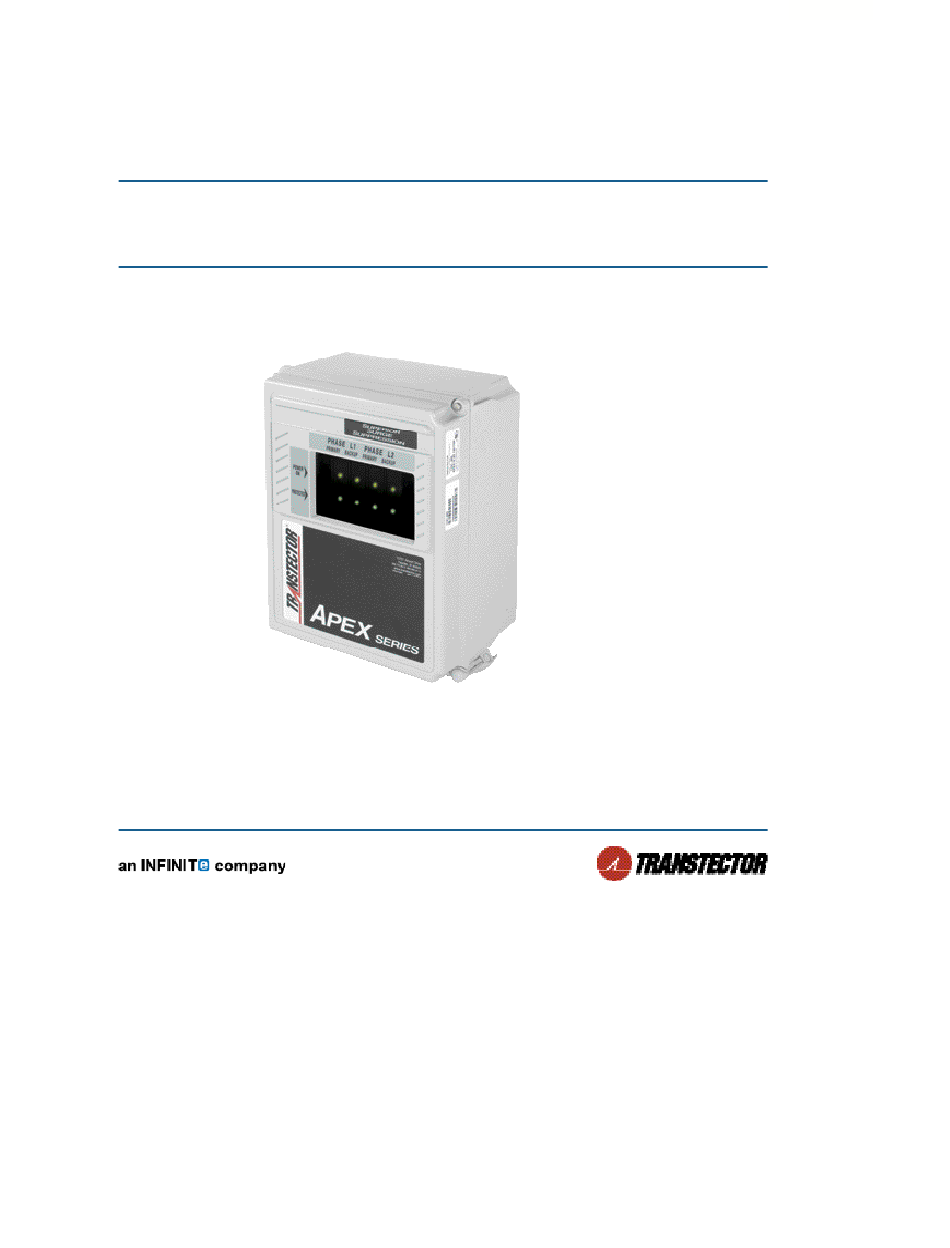

- Page 1 Installation Manual APEX Series Silicon and MOV Panel Protection APEX Series 800.882.9110 | 208.772.8515 | www.transtector.com...
-
Page 2: Table Of Contents
WARNING: Wiring conductors utilized to attach Phases L1, L2, L3, the Neutral and Safety Ground from the AC power source to the APEX Series should be color-coded to conform with appropriate electrical codes and/or accepted wiring practices. It is very important to make no assumptions that wiring colors on existing electrical installations correspond to proper phase, neutral, or ground connections. -
Page 3: Mechanical Installation
APEX Series Installation The APEX Series surge suppressor models are designed specifically to operate on the following configurations: Configurations 120V 1Ø 240V 3Ø Delta 120/240 Split 1Ø 220/380 3Ø Wye 120/208 3Ø Wye 230/400 3Ø Wye 240V 1Ø 240/415 3Ø Wye Suppression is accomplished in parallel between phase conductors and/or between phase and the neutral conductors, depending upon the voltage configuration. -
Page 4: Figure 1 - Mounting Details
Step 5: Refer to the mounting illustration (Figure 1) for the APEX Series suppressor. Drill four (4) mounting holes anyplace on the mounting surface. Insure mounting holes are spaced 8” (20.38 cm) apart from each other horizontally and are separated 13”... -
Page 5: Electrical Installation
Electrical Installation NOTE: These instructions are intended to guide the equipment installer through a step-by-step procedure resulting with the surge suppressor being electrically connected in parallel with its AC power source. Figure 2 - 120T configuration - typical installation consists of two phase conductors with one neutral Figure 3 - 120S configuration - typical Installation consists of one phase conductor with one neutral 1200-185... -
Page 6: Figure 4 - 240S Configuration
APEX Series | Installation Guide Figure 4 - 240S configuration - typical Installation consists of two phase conductors with no neutral NOTE: Phase L, or Phase L2 can be substituted for neutral in international applications. Figure 5 - 120W, 240W configuration - international installation consists of voltages ranging from 380 to 415 between phase conductors;... - Page 7 Step 5: Disconnect power at the AC power source at the point where the APEX Series will be connected. Verify that AC power is disabled. NOTE: The mechanical and electrical installation illustrations are referenced in Figures 1 through 6 and are applicable with the remaining electrical installation procedural steps.
- Page 8 If the APEX Series suppressor is positioned within two (2) feet (61 cm.) from the AC power source, then a minimum of #6 (4.1 mm.) sized wiring conductors are recommended.
-
Page 9: Figure 7 - Card Installation
WARNING: the card interlock pins must be separated before removing individual cards for services. Figure 7 - card installation NOTE: Depending on the configuration of your Apex Series suppressor, this unit could have between 1 and 6 cards to install. 1200-185...
