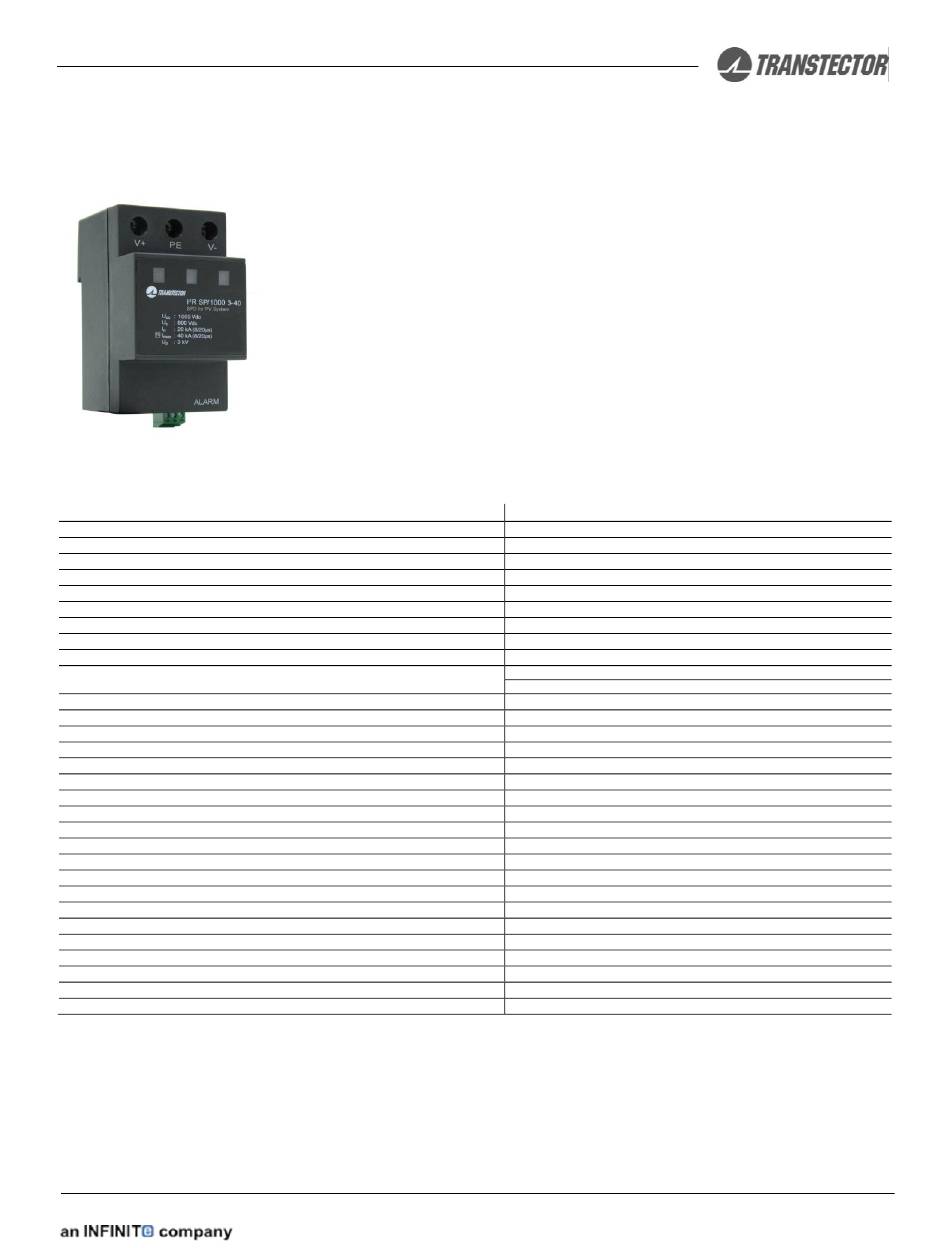

Transtector I2R SPV1000 3-40 Installation Manual

Installation Guide – AC Surge Protection
Solar Applications
I2R SPV1000 3-40
Part# 1104-11-101
Main Technical Data
Electrical Performance
Number Of Ports
Technology
Nominal Operating Voltage U
Maximum Continuous Operating Voltage U
Nominal Discharge Surge Current I
Maximum Discharge Surge Current I
Voltage Protection Level U
p
Response Time
Recommended Over-Current Protection Device
Status Indication
Maximum Contact Switch Rating
Mechanical
Location Category
Method of Mounting
Dimension (H x W x D)
Weight (Max)
Maximum Wire Size
Stripping Length Terminals
Torque Terminals
Maximum Wire Size Contacts
Stripping Length Contacts
Torque Contacts
Environmental
Operating Temperature
Relative Humidity
Enclosure Protection Level
Housing Inflammability Rating
Certifications
DIN rail mounted DC surge protection device, designed with MOV
technology to meet Type 2 requirements. Equipped with suppression status
visual indication and electrically isolated 'Form C' dry contacts to allow
remote monitoring.
n
c
(8x20µs)
n
(8x20µs) Type 2
max
Single port device
MOV
1000 Vdc
1350 Vdc
20 Ka
40 kA
5 kV
< 25 ns
32A circuit breaker with C tripping characteristic (per IEC 60364-4-43)
Visual indication LED: Black = normal, Red = replace
Contact switch for remote annunciation
250 Vac / 3 A
Indoor only
Fixed 35mm DIN rail
90mm x 54mm x 68mm (3.6" x 2.2" x 2.7")
0.33kg (0.74lb)
2
25 mm (#4 AWG)
10mm (0.375")
4.5 Nm (3.3ft-lb)
2
1.5mm (#16AWG)
7mm (0.25")
1Nm (0.75ft-lb)
-40ºC to +70ºC
≤95% non condensing
IP20
PA66; UL94 V-0
RoHS compliant
1104-11-101-M Rev D
