OJ Electronics MSW4-10 Instruction

I N S T R U C T I O N
Type MSW4-10
67264 04/14 - (LOA)
English
MSW4 is a gateway between the Comfort
System4™ and a WiFi router. The Gateway
features a graphical user interface, allowing you
to remote controll the functions of the Central
Controller in the heating system,
Wireless communication with the Central Con-
troller ensures simple installation.
The Gateway is for wall mounting close to the
router.
NOTE: The Gateway requires a Central Con-
troller with software version 1.12 or newer.
PrOduCT PrOGraMME
MSW4-10: Ethernet Gateway to remote control
the heating system, CS4
Ø 9 mm
WarNING – Important safety instructions
Never attempt to open the Gateway.
Disconnect the power supply before perform-
ing installation or maintenance work on the unit
or its associated components. This control unit
and its associated components can be installed
by anyone. Electrical installation must be in ac-
cordance with relevant regulations.
INSTallING ThE GaTEWay
dO NOT open the Gateway.
1. Mount the Gateway on the wall.

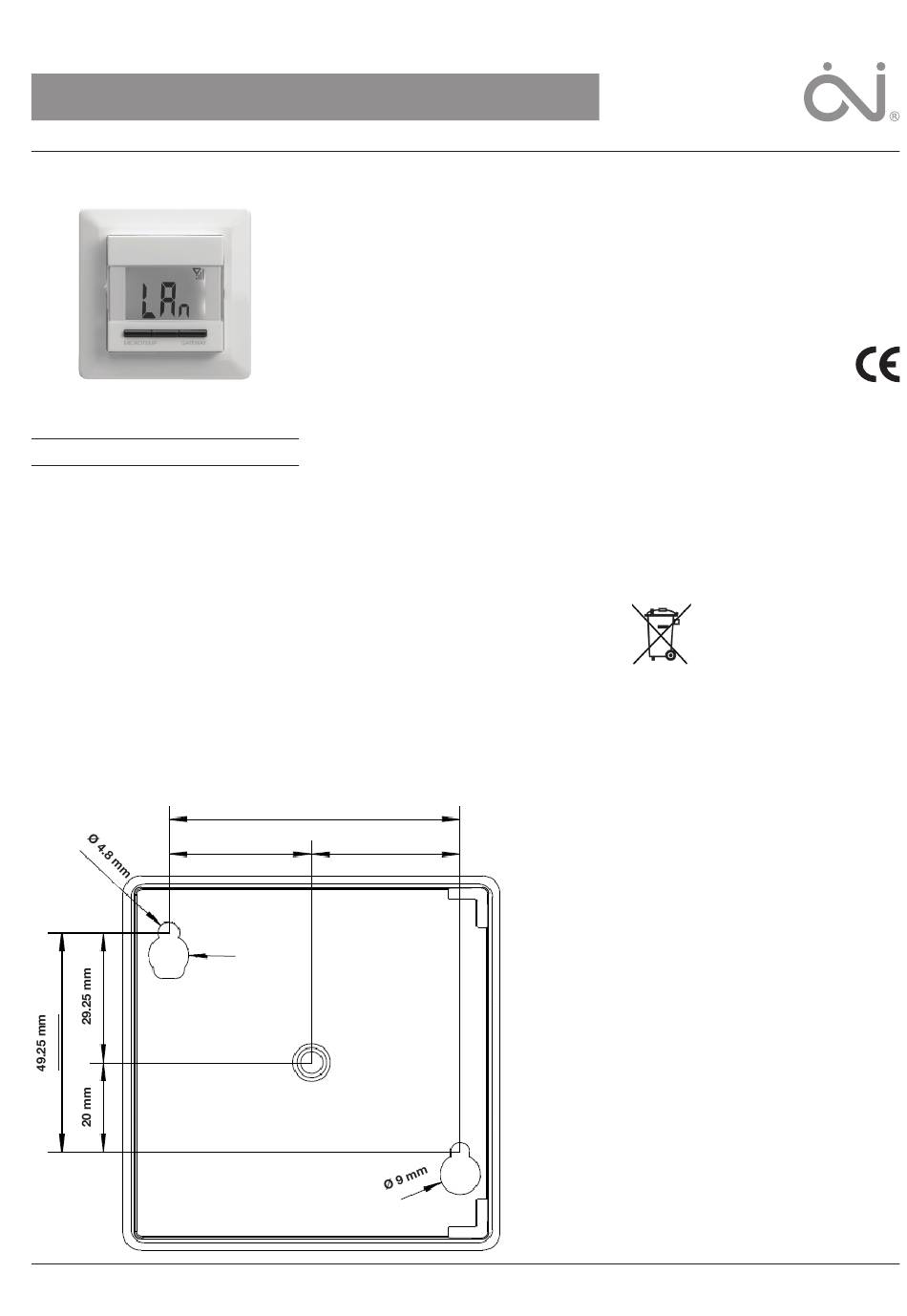

There are "keyholes" on the rear of the hous-
ing for screws – see the drilling template
below for details.
2. Distance between the wall and the rear face
of the screw head should be 3.5 mm.
3. Connect the cables as shown in the wiring
diagram (fig. 1).
SETuP
1. Make sure the Central Controller is in "listen-
ing mode" (Press Menu/System settings/Add
unit).
2. Switch on the power to the Gateway.
3. "Con" flashes on the Gateway.
CS4 . 4. "Adr/99" flashes.
TM
the Gateway will display the assigned
dress. Must be 99.
5. "LAn" and the arriel symbol is displayed in
the Gateway; Communication ok.
6. Readout the IP-address for the Gateway
(IP . IP
1 2
buttons.
7. The Gateway is now ready to use via the
web-server. Set the server to search for the
IP-address of the Gateway.
TM
(See the User Manual for further information).
65 mm
32 mm 33 mm
The Central Controller and
ad-
. IP . IP ), by pressing the navigation
3 4
© 2014 OJ Electronics A/S
ErrOr COdES
If a error occurs, the Gateway will display an
error code as follows:
Con: Searching for connection to the Central
Controller.
OFL: No connection to the network router.
Err: The Central Controller does not support
the Gateway (Software version too old).
E6: Communication error. No connection to
the Central Controller.
CE MarKING
According to the following directives:
LVD 2006/95/EC, EMC 2004/108/EC,
R&TTE 1999/5/EC.
ClaSSIfICaTION
The product is a Class II device (double insu-
lated) and must be connected in the following
way:
Input: Power supply.
Ethernet (RJ45): For connection to router. Cable
length must not exceed 3 metres. (See fig. 1).
ENvIrONMENT aNd rECyClING
Please help us to protect the environment by
disposing of the packaging in accordance with
the national regulations for waste processing.
rECyClING Of ObSOlETE aPPlIaNCES
Appliances with this label must not
be disposed of with general
household waste. They must be
collected separately and disposed
of in compliance with local
regulations.
TEChNICal daTa
Gateway:
Supply voltage ........................................ 9 VDC
Standby power ......................................... 2.3 W
RF frequency band ............................ 868.3 MHz
RF-Transmission range..... 100 metres/open field
Ambient temperature ............................. 0/+40°C
Pollution degree ................................................ 2
Enclosure rating ........................................ IP 20*
Dimensions ..................... H/84, W/84, D/58 mm
Display ...................... H/25, W/38 mm, segment
EU registered design .......... 001534462-0001/2
to EN 60730-2-9
* IP 20 applies only to the complete product
after mounting on wall.
Power unit:
Supply voltage .................230 VAC ±10%, 50 Hz
Output voltage .............................9 VDC nominel
DC switch .......................2.0 mm centre hole (+)
and 5.5 mm shell (-)
Overvoltage ................................................ Cat II
Current .................................................... 500 mA
Network cable (rJ-45)
Category .................................................... Cat. 5
Length ....................................................... 0.5 m
Max. network cable length ............................3 m
The Gateway is maintenance free.
OJ ElECTrONICS a/S
Stenager 13B · DK-6400 Sønderborg
Tel: +45 73 12 13 14 · Fax: +45 73 12 13 13
oj@ojelectronics.com · www.ojelectronics.com
