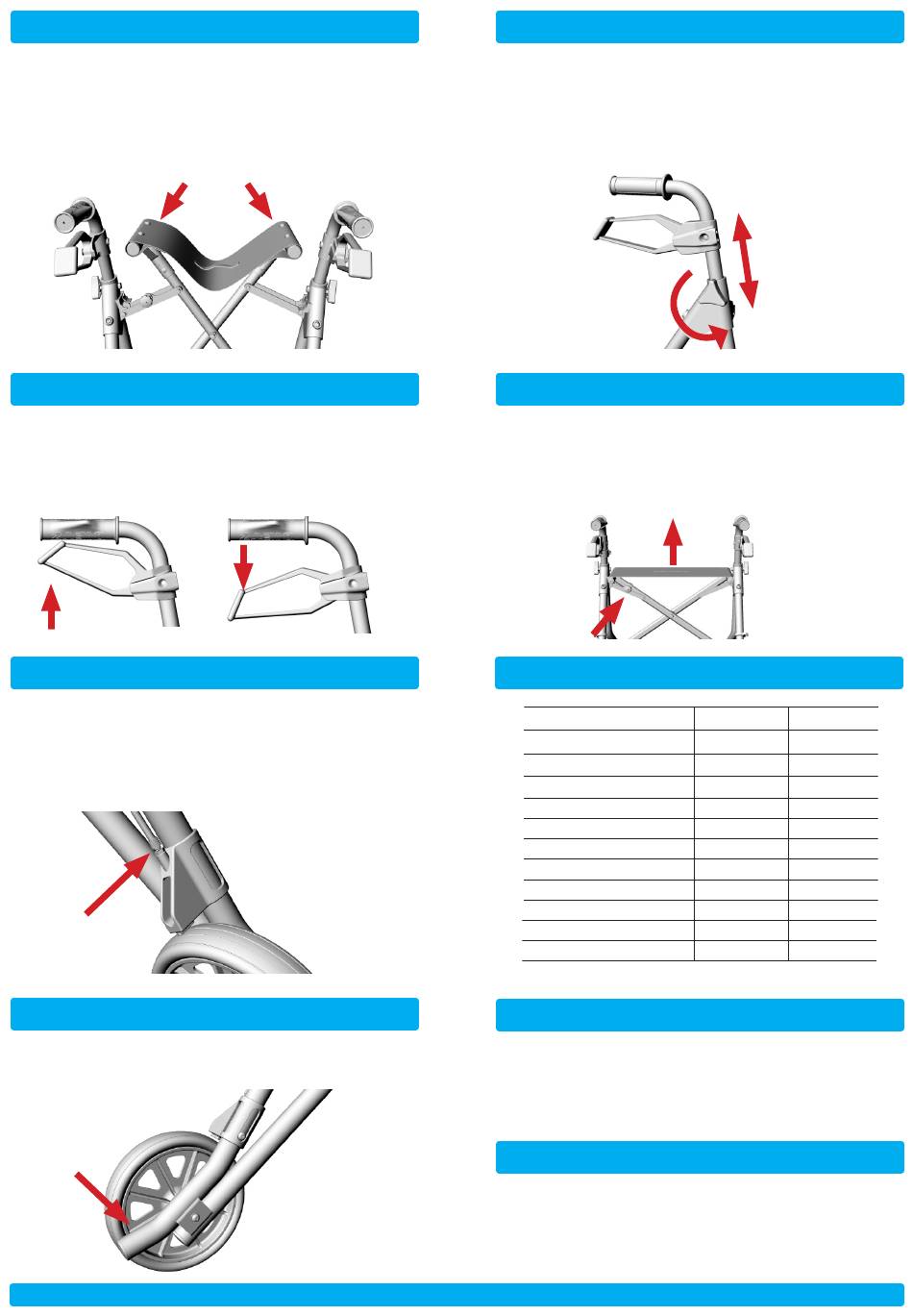

Technical Data - Dietz TAIMA User Manual

1. Setting up/unfolding your rollator
Place the rollator in front of you in the direction of travel and put
the parking brake on.
Using both hands, press the tubes on either side of the seat down
to the left and right until the folding mechanism clicks into place.
Then attach the mesh bag, bag or basket to the appropriate
fittings.
2. Brakes
Service brake (when pushing): Pull the brake lever up.
Parking brake (for parking): Press the brake lever down.
3. Brake settings
The brake is set correctly if there is no play in either the brake
lever or the Bowden cable and if the wheels turn without rubbing or
grating.
The braking strength can be adjusted using the set screw on the
Bowden cable for the brake blocks on the back wheel.
4. Curb climber
Pressing your toe down on the extended frame makes it easier to
lift the front wheels (to negotiate curbs, for example).
5. Grip handle adjustment
Loosen the height adjustment screw and remove it from the frame.
Adjust the push handles to the correct height.
Place the screw in the correct position and tighten it firmly.
6. Folding up your rollator
Loose the locking pin under the seat.
Pull the folding strip in the middle of the seat and the rollator will
fold up.

Technical data

Height
Height folded
Seat height
Lenght
Width
Width folded
Max. user weight
Weight
Tyre dimensions
Grip handles adjustment
Meshbag max. weight
Scope of delivery
- Rollator TAi MA
- Cane holder for L or R side use
- Shopping bag
- Users manual
Warranty
The TAIMA rollator has a five-year warranty on the aluminum frame
and a 24-month warranty on all other parts.
Parts subject to wear or misuse are excluded from warranty.
DIETZ TAiMA Users Manual I Version 1.1 I Stand 16.08.12
TAiMA_S TAiMA_M
79 - 95 cm
76 - 86 cm
76 cm 81 cm
51 cm 59 cm
63 cm 67 cm
58 cm 63 cm
22 cm 22 cm
150 kg 150 kg
6.5 kg
6.5 kg
20 x 3.5 cm 20 x 3.5 cm
5 x 2.5 cm 5 x 4 cm
5 kg 5 kg
