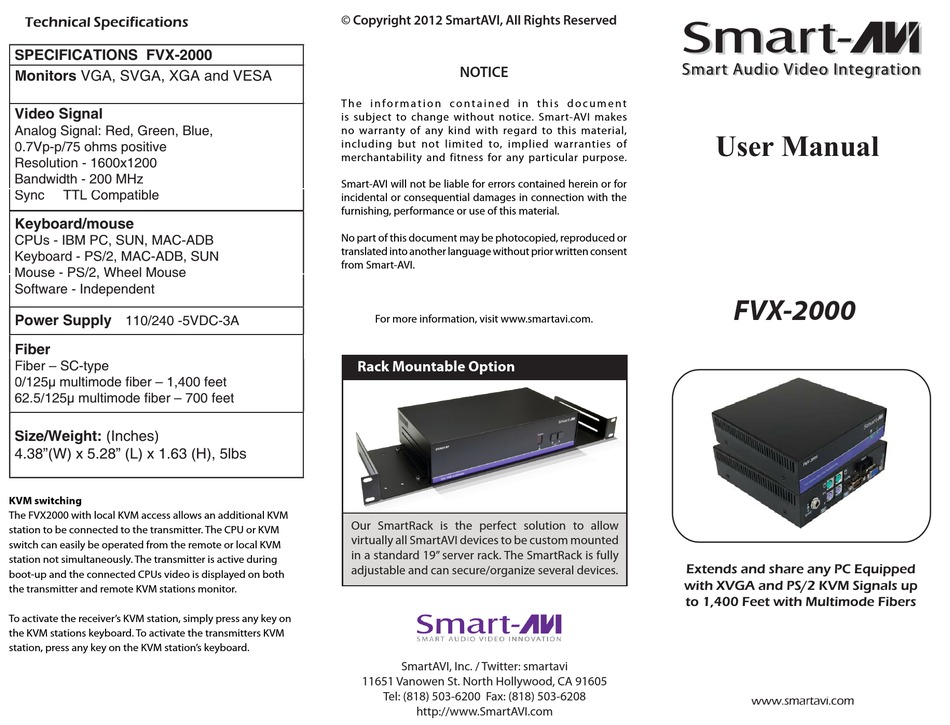

SmartAVI FVX-2000 User Manual

Technical Specifications

SPECIFICATIONS FVX-2000
Monitors VGA, SVGA, XGA and VESA
Video Signal
Analog Signal: Red, Green, Blue,
0.7Vp-p/75 ohms positive
Resolution - 1600x1200
Bandwidth - 200 MHz
Sync TTL Compatible
Keyboard/mouse
CPUs - IBM PC, SUN, MAC-ADB
Keyboard - PS/2, MAC-ADB, SUN
Mouse - PS/2, Wheel Mouse
Software - Independent
Power Supply
110/240 -5VDC-3A
Fiber
Fiber – SC-type
0/125μ multimode fiber – 1,400 feet
62.5/125μ multimode fiber – 700 feet
Size/Weight: (Inches)
4.38"(W) x 5.28" (L) x 1.63 (H), 5lbs
KVM switching
The FVX2000 with local KVM access allows an additional KVM
station to be connected to the transmitter. The CPU or KVM
switch can easily be operated from the remote or local KVM
station not simultaneously. The transmitter is active during
boot-up and the connected CPUs video is displayed on both
the transmitter and remote KVM stations monitor.
To activate the receiver's KVM station, simply press any key on
the KVM stations keyboard. To activate the transmitters KVM
station, press any key on the KVM station's keyboard.
© Copyright 2012 SmartAVI, All Rights Reserved © Copyright 2004 Smart-AVI, All Rights Reserved
Notice
NOTICE
The information contained in this document is
subject to change without notice. Smart-AVI makes
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
no warranty of any kind with regard to this material,
is subject to change without notice. Smart-AVI makes
including but not limited to, implied warranties of
no warranty of any kind with regard to this material,
merchantability and fitness for any particular
including but not limited to, implied warranties of
purpose.
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein
Smart-AVI will not be liable for errors contained herein or for
or for incidental or consequential damages in
incidental or consequential damages in connection with the
connection with the furnishing, performance or use
furnishing, performance or use of this material.
of this material.
No part of this document may be photocopied, reproduced or
No part of this document may be photocopied,
translated into another language without prior written consent
reproduced or translated into another language with
from Smart-AVI.
out prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.
For more information, visit www.smartavi.com.
ORDER INFO
Rack Mountable Option
Model Description
FVX-2000 KVM vga/ps2 fiber
extender. Includes:
[FVX-TX2000,
FVX-RX2000,
(CCKVMMF06) and
2x (PS5VD3A)]
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19" server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
SmartAVI, Inc. / Twitter: smartavi 2840 N. Naomi Ave.
Burbank, California 91504
11651 Vanowen St. North Hollywood, CA 91605
Phone: (818) 565-0011
Tel: (818) 503-6200 Fax: (818) 503-6208
Facsimile: (818) 565-0020
m_fvx2000-112409
http://www.SmartAVI.com

User Manual

FVX-2000
Extends and share any PC Equipped
with XVGA and PS/2 KVM Signals up
to 1,400 Feet with Multimode Fibers
www.smartavi.com
