SmartAVI SWP-T10 User Manual

Wall plate extender 1080p hdbaset
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SWP-T10
Wall Plate Extender
1080p HDBaseT
Extends VGA, stereo audio, HDMI, IR and RS232
signals with CAT5e/6 up to 70 meters.
USER MANUAL
(rev 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWP-T10 and is the answer not in the manual?

Questions and answers

Related Manuals for SmartAVI SWP-T10

Summary of Contents for SmartAVI SWP-T10

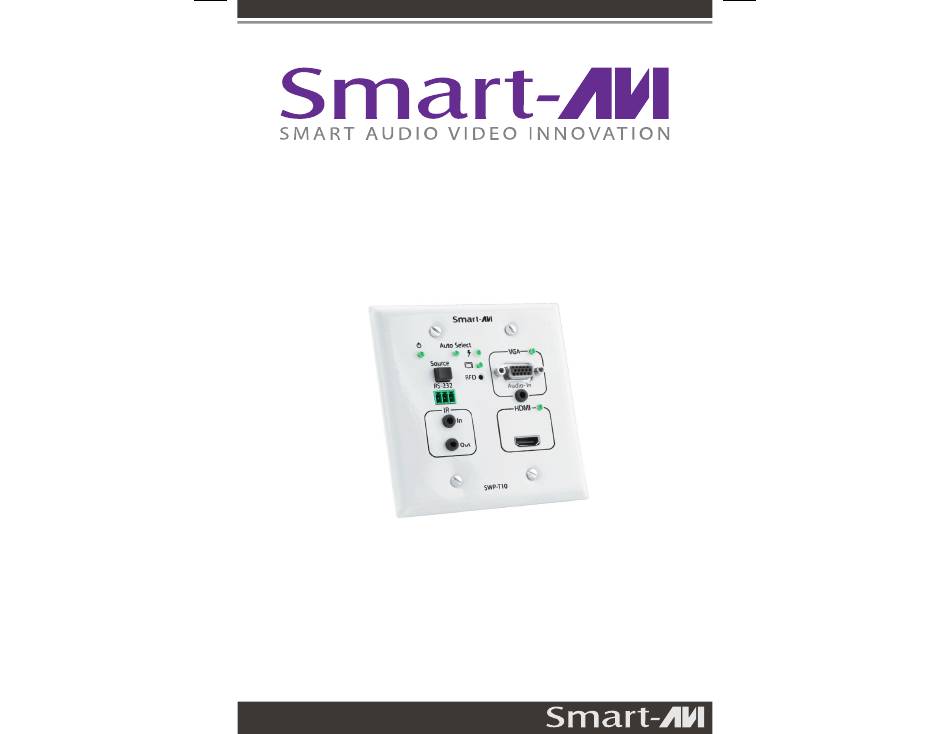

  • Page 1 SWP-T10 Wall Plate Extender 1080p HDBaseT Extends VGA, stereo audio, HDMI, IR and RS232 signals with CAT5e/6 up to 70 meters. USER MANUAL (rev 1.0)

  • Page 2: What's In The Box

    WHAT’S IN THE BOX PART NO. DESCRIPTION SWP-T10 HDBaseT Wall Plate Transmitter PS12V1.25A Power Supply SWP-T10 Quick Start Guide CONNECTING THE HDX-WPRO   1.  Install the SWP‐T10 transmitter and place the SmartAVI HDX RX receiver  unit in close proximity to the output device.  2.  Connect a Cat5e/6 cable between the TX and RX units (up to 70m).  3.  Connect a signal source to the SWP‐T10 via HDMI, VGA, Stereo Audio,  RS232 or IR connectors.  4.  Connect the HDX RX unit to the desired output device.  5.  Connect a 12V power supply to either the SWP‐T10 or the HDX RX unit.  The other device will be powered via POE (Power over Ethernet).  6.  Use the TX front panel SELECT SOURCE button to switch between source  signals. Using automatic selection will select the last source connected.   ...
  • Page 3 SWP-T10 FRONT SWP-T10 BACK SWP-T10 © 2016 SmartAVI, Inc.

  • Page 4: Technical Specifications

    0.75lbs Operating 0° to +40°C (32° to 104°F) Temperature Storage -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F Temperature Humidity 10% ~ 90% ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) SWP-T10 © 2016 SmartAVI, Inc.

  • Page 5: Front Panel Button

    The Select/Auto button selects an input source. If you press and hold the button, the SWP-T10 will enter the automatic switching mode and the Auto- Switch LED lights up. If you press and hold the button again, the SWP-T10 will exit the automatic switching mode.
  • Page 6 IR Function Control devices like HDTVs, BluRay players, and more with IR Cable Pin Assignment IR Receiver (RX) IR Emitter (TX) SWP-T10 © 2016 SmartAVI, Inc.
  • Page 7 Notes: SWP-T10 © 2016 SmartAVI, Inc.
  • Page 8 800.AVI.2131 Tel: (818) 503-6200 Fax: (818) 503-6208 11651 Vanowen St. North Hollywood, CA 91605 SmartAVI.com Many industry-leading companies have recognized the innovation and power of SmartAVI’s technologies and have successfully implemented them within their systems. Users of SmartAVI technology include:...
