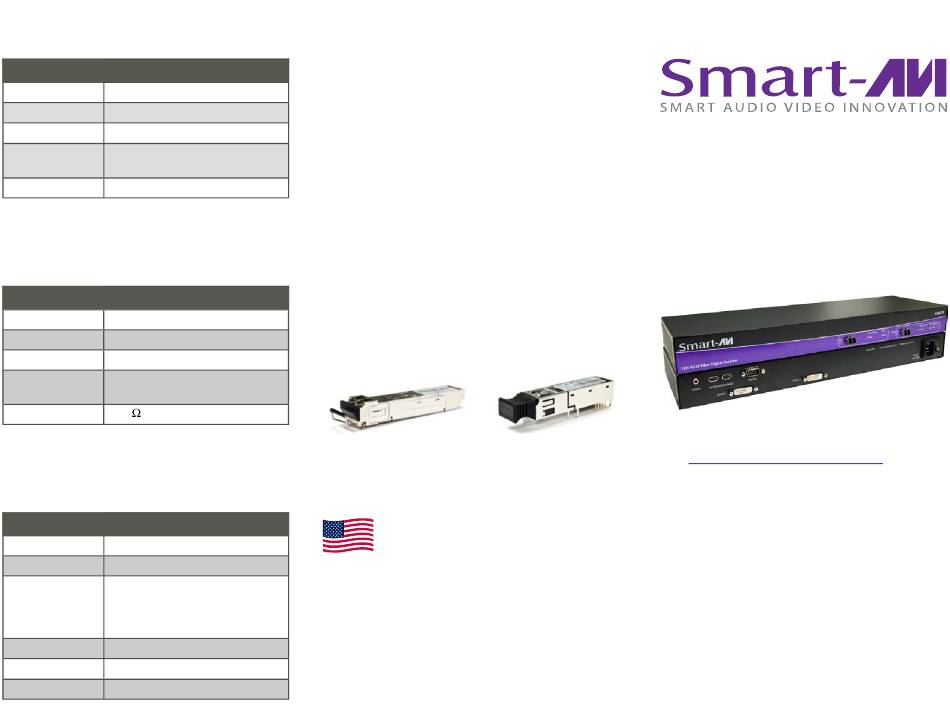

SmartAVI FDX-S2U User Manual

TECHNICAL SPECIFICATIONS
VIDEO
Input Interface (2) DVI-D 29-Pin Female
Output Interface (2) DVI-D 29-Pin Female
Max Resolution 1920x1200 @ 60Hz
DDC Internal Table;
Can be reprogrammed
Format DVI-D Single-Link
AUDIO AUDIO
Input Interface 3.5 mm Stereo Audio
Output Interface 3.5 mm Stereo Audio
Signal Type Stereo Audio
Frequency 20 Hz to 20 KHz
Response
Impedance 600
OTHER
RS-232 Data up to 115200bps
USB USB Keyboard and Mouse ONLY
Fiber Extender Fiber
• 225m @ Single mode 62,5µ
• 450m @ Single mode 50µ
• Fiber-Plug type LC
Dimensions 4.5"x5.5"x1.70"
Weight 1 lb.
Power Internal 100-240 VAC
WHY FIBER OPTIC?
SmartAVI has created a full line of fiber optic ex-
tender products, understanding that this technology
is superior to traditional cabling.
Fiber optic cables are: i p r
•Capable of transmitting over very long distances
with no signal loss.
•Immune to electromagnetic interference. In situa-
tions where there is considerable interference, fiber
optic cabling is the only solution.
•Much more secure because they cannot be easily
tapped. For this reason, military and law enforce-
ment
agencies use fiber optic cables for the transmission
of sensitive data.
•Relatively inexpensive and small enough to be
routed through small spaces.
We only use the highest quality fiber optic transceivers
Designed and Manufactured in the USA
FDX-S2U
Dual DVI-D Fiber Extender
Audio and USB Keyboard and Mouse
Extends two DVI-D Signals, Audio and
USB Keyboard & Mouse up to 10 miles over two
Fiber Optic Cables

USER MANUAL

with
