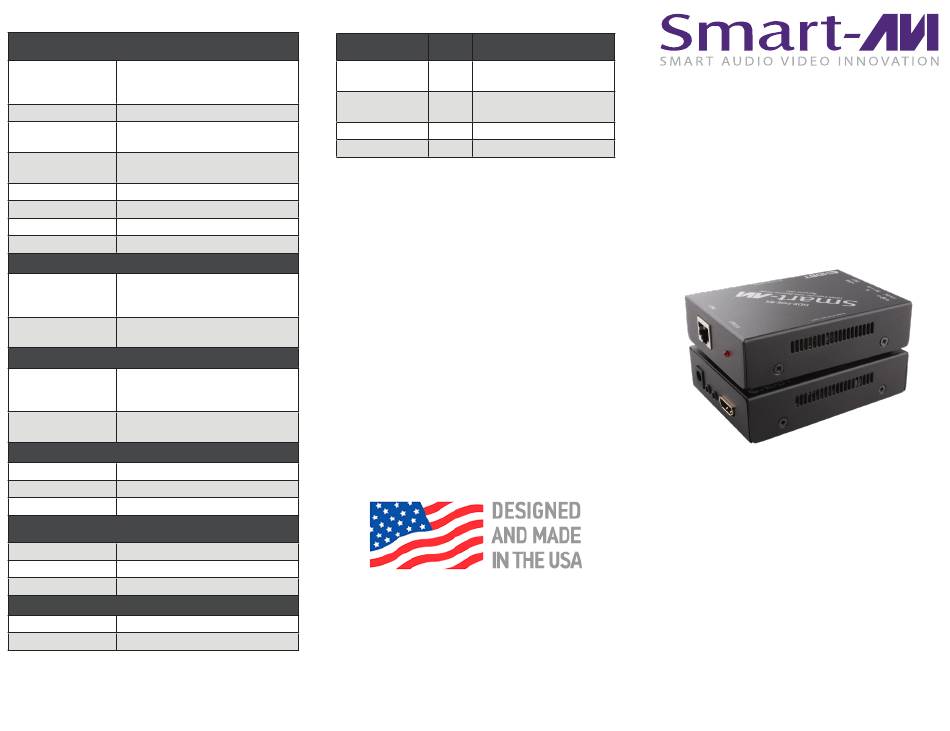

SmartAVI HDX-POE Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO

800X600, 1024X768 , 1280X1024,
Resolution 1366X768, 1920X1200, 480i,
720p, 1080i, 1080p and 3D
Transmission 70 meters
Deep Color 36/30/24 Bit at 1080p
Color Depth
and 3D
Up to PCM 8 channel, Dolby Digital
Audio Format
TrueHD, and DTS-HD Master Audio
IR Range 38kHz, 56kHz
Video Bandwidth 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts(TTL)

I/O CONNECTOR (TX)

1 x HDMI-A 19PIN Socket
Input 5 x 2.5mm
1 x 3.5mm Jack for IR Receiver
1 x RJ45 Jack
Output
1 x 3.5mm Jack for IR Emitter

I/O CONNECTOR (RX)

1 x RJ45 Jack
Input 1 x 3.5mm Jack for IR Receiver
5 x 2.5mm
1 x 3.5mm Jack for IR Emitter
Output
1 x HDMI-A 19PIN Socket

MECHANICAL

Dimensions 0.9" H x 2.9" W x 3.7" D
Weight 0.26 lb
Power External 12V2.5A

ENVIRONMENTAL

Operating Temp. 32-104°F (0-40 °C)
Storage Temp. -4-140°F (-20-60 °C)
Humidity Up to 85% (non-condensing)

SAFETY

Certificate FCC, CE, RoHS
Power Adapter UL, CE, FCC, RoHS
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDMI, IR, CAT5/5e/6
HDX-POE-TX 1
Transmitter
HDMI, IR, CAT5/5e/6
HDX-POE-RX 1
Receiver
Power Supply 2 PS5VDC2A
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
HDX-POE
HDMI, IR and Power Extender
Over Single CAT5/5e/6 Cable
WATCH AND CONTROL
HDTV 1080P VIDEO
UP TO 250FT FROM
THE SOURCE VIA CAT5/5E/6
USING POE TECHNOLOGY
Quick Start Guide
