5.2 Sponge Wheel and Synchronous Belt

Replace the Sponge Wheels and Synchronous Belt if they are badly worn or broken
OPEN
OPEN
（Pic.5.2.2）

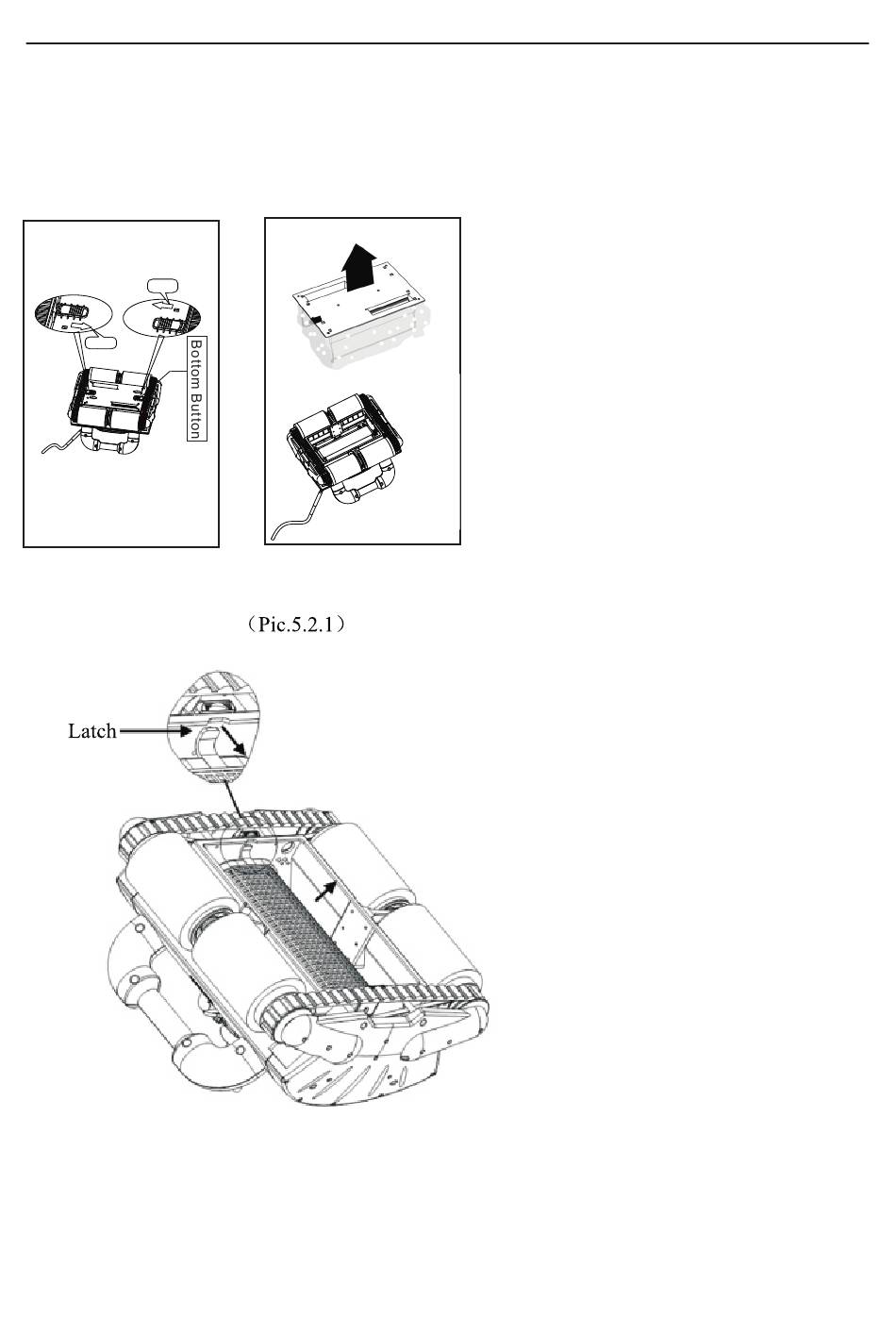

Step 1
※Invert the iCleaner-120 on
the floor, remove the Base
Plate.(Push latch to unlock
the Base Plate).(Pic.5.2.1)
Step 2
※ Remove the Filter Net
from the iCleaner-120 while
pressing the Latch according
to the diagram.(Pic.5.2.2)
- 11 -
