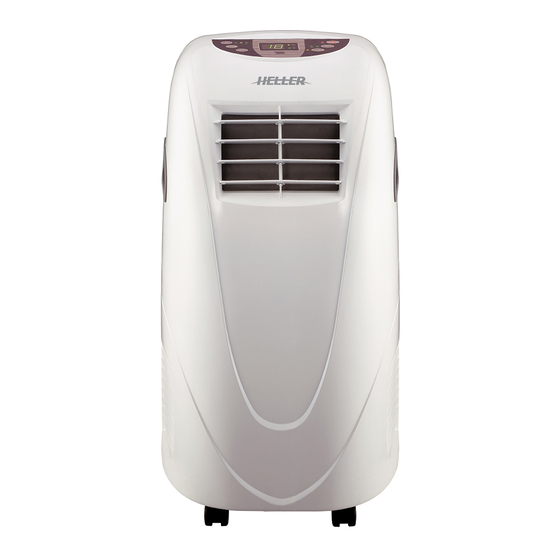

- Page 1 Instruction Manual 10,000 BTU Portable Air Conditioner Model: HPAC10 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Important Safeguards
Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference. For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. -
Page 3: Special Recommendations
• Never immerse the appliance in water or any other liquid. Special Recommendations • Ensure that the appliance is positioned on a flat, large, dry surface without any obstacles nearby. A minimum distance from furniture and walls is 50cm in all directions. •... - Page 4 Assembly Fix the exhaust pipe into the adapter, and then fix the other side of the exhaust pipe into the air outlet vent of the unit (anti-clockwise) as per diagram 2 below. Fix the adapter into the window slider kit, and then half open the window to meet the width of the window slider kit.
- Page 5 Identification Front 1. Control panel 2. LCD Display 3. On/Off button 4. Remote control receiver 5. Air outlet vent 6. Louver 7. Castor 8. Air inlet 9. Remote control 10. Handle Back 10. Exhaust air outlet vent 11. Power cord 12.
- Page 6 Accessories Control Panel 1. POWER button: press this button to turn the unit on/off. 2. SPEED button: press this button to select high/low/fan speed 3. TIMER: when in stand-by mode, press this button to set and automatic time on; for running time press this key to set automatic time off.
- Page 7 Remote Control 1. Power 2. Celsius and Fahrenheit exchange button 3. Fan button 4. Mode Button 5. Auto mode button 6. Temp down button 7. Temp up button 8. High fan speed button/Up 9. Low fan speed button/Down 10. Max cool button 11.
-
Page 8: Operation
Operation Cooling mode 1. After operating the machine press the Mode button to choose Cool mode, the Cool mode indicator will flash. 2. Press the UP or DOWN button to set room temperature between 17℃ to 30℃. 3. Press FAN SPEED button (or High/Low button) to select high/low fan speed. Fan mode 1. -
Page 9: Maintenance
Maintenance Note: Turn off the unit and unplug it before any maintenance or repair, in order to avoid electric shock. Cleaning • Unplug the unit before any cleaning. • Clean the housing with a soft damp cloth. Do not use chemical solvents (such as benzene, alcohol, or gasoline). -
Page 10: Troubleshooting
Troubleshooting Before contacting the retailer for a replacement, please check the below to see if it can solve the problem. Problem Cause Solution Connect to power supply outlet and No power supply. switch on. The air conditioner does “FL” flashes on the display screen Drain water. -
Page 11: Specifications
Specifications Model: HPAC10 Permissible excessive operating pressure (Suction/Discharge): 1.5MPa/5.5MPa Cooling capacity: 2.93kW Maximum allowable pressure (Low pressure side/High pressure side): 1.7MPa/5.5MPa Refrigerant/Charge: R410a/500g Air Flow: 360m3/h Power Supply: 220-240V/50Hz Noise: 55dB(A) Rated input (cooling): 1050W Net weight: 25kg Dimensions (WxHxD): 433 x 795 x 330mm...
