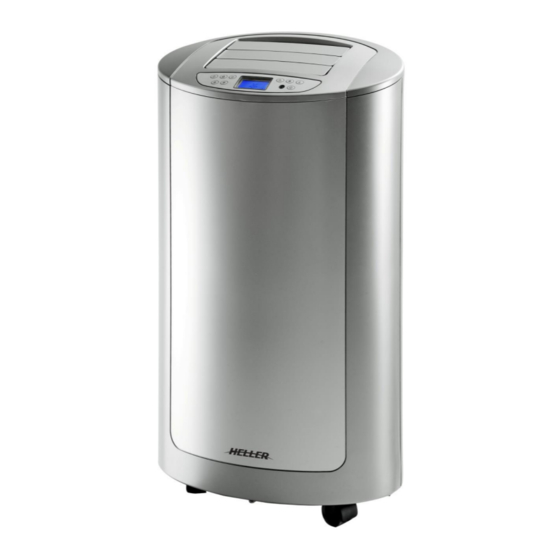

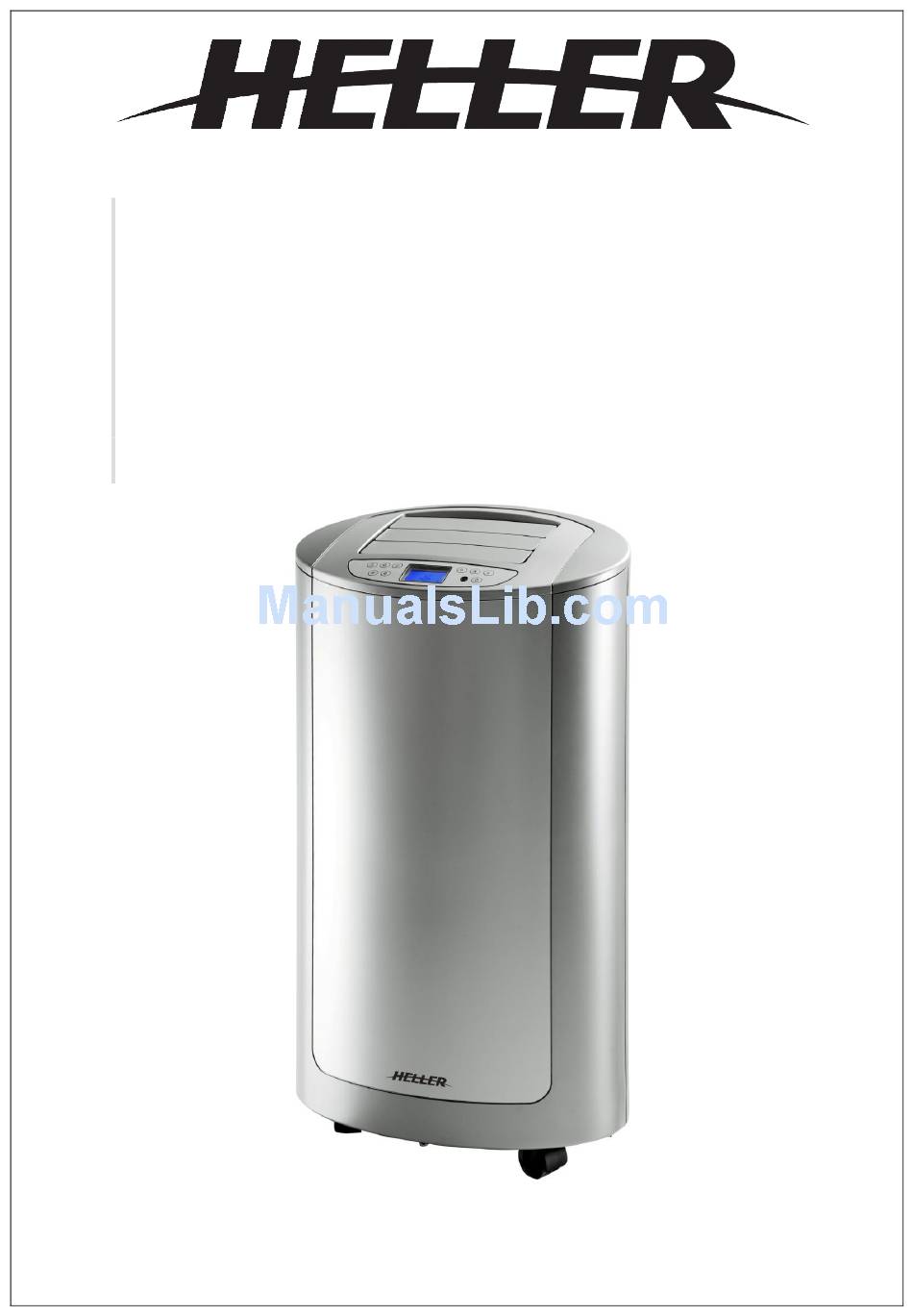

- Page 1 Instruction Manual 15,000 BTU Portable Air Conditioner Model: HYAC15 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Important Safeguards
Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference. For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. -
Page 3: Special Recommendations
• Always unplug the appliance before cleaning or changing any parts of the appliance, or when it’s not in use. • Never immerse the appliance in water or any other liquid. • The appliance must not be used if the guards are not fastened according to instructions. •... -
Page 4: Before First Use
BEFORE FIRST USE Before use, remove all packaging and inspect the appliance for any damage. If there appears to be any damage, please take the unit back to place of purchase for a replacement. PARTS & FEATURES 1. Tope cover 9. -
Page 5: Installation
INSTALLATION WARNING: Before using this unit, please keep it upright at least 2 hours. The unit can be moved easily among the rooms, but please note the following: 1. Assemble hose adaptor (Figure 1). Part A Part A + Part B Figure 1 Part B a. - Page 6 3. Installation of window kits. Partially open the window and then fix the window kits to the window (Figure 3 & 4 below). The window kits can be installed on most normal and vertical windows, and it is adjustable. Figure 3 Figure 4 4.
-
Page 7: Controls And Settings
NOTE: Always use the hose that comes with the unit, any other hose that is not compatible with the unit will overheat the unit. CONTROLS & SETTINGS • This unit HYAC15 (Cooling model only) has two functions: cooling and fan. • Fan has three speeds: high speed, middle speed and low speed. • Setting temperature is 18°C-30°C •... - Page 8 Under cooling mode: Under fan model: same as cooling mode. iii. If switch between cooling and fan, fan speed won’t change. Press it, icon will flash, “88” areas indicate 24:00; you can set your time through buttons. The HOUR number will change from 1,2,3…25; the Minute number will change from 10, 20, 30…50.
- Page 9 Press this key to turn on/off the button. Press this key to choose cooling and fan. Press this key to turn up the temperature or adjust time. Press this key to turn down temperature or adjust time. Press this key to set low/ middle/ high fan speed. Press this key to control the swing function.
-
Page 10: Water Drainage
Under cooling mode, press this key to achieve maximum output. Once set, press this key to use of something like a pin to lock the button, as the screen will show image: , press this key again to unlock (This function can prevent the child from playing with the unit). - Page 11 • Your appliance must be switched OFF via the main power supply and unplugged before proceeding with any cleaning. • Clean the housing with a damp cloth, a vacuum cleaner or a dusting brush. • It is recommended that you clean the water tank every 2 weeks and the flume every week. •...
-
Page 12: Troubleshooting
TROUBLE SHOOTING Don’t repair or disassemble the unit by yourself, unstable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession. TROUBLE REASON SOLUTION No power supply. Power-on and turn on the unit. Water-full indicator illuminate. -
Page 13: Specifications
Disposal: Do not dispose this product as waste. Please contact the council for information regarding disposal of this unit. SPECIFICATIONS Model Description Voltage Rated Frequency Cooling Air Flow Input Capacity HYAC15 15,000 BTU 220-240V~ 1650W 50Hz 4.4Kw 475m³/h Portable Air Conditioner CUSTOMER SERVICE Australian Customer Service GAF Control (Sales) Pty Ltd P.O Box 19...
