Voyager 3N

Quick start guide

Ver. 1.1
Saint Petersburg, 2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the Voyager 3N and is the answer not in the manual?

Questions and answers

Related Manuals for ritm Voyager 3N

Summary of Contents for ritm Voyager 3N

  • Page 1: Quick Start Guide

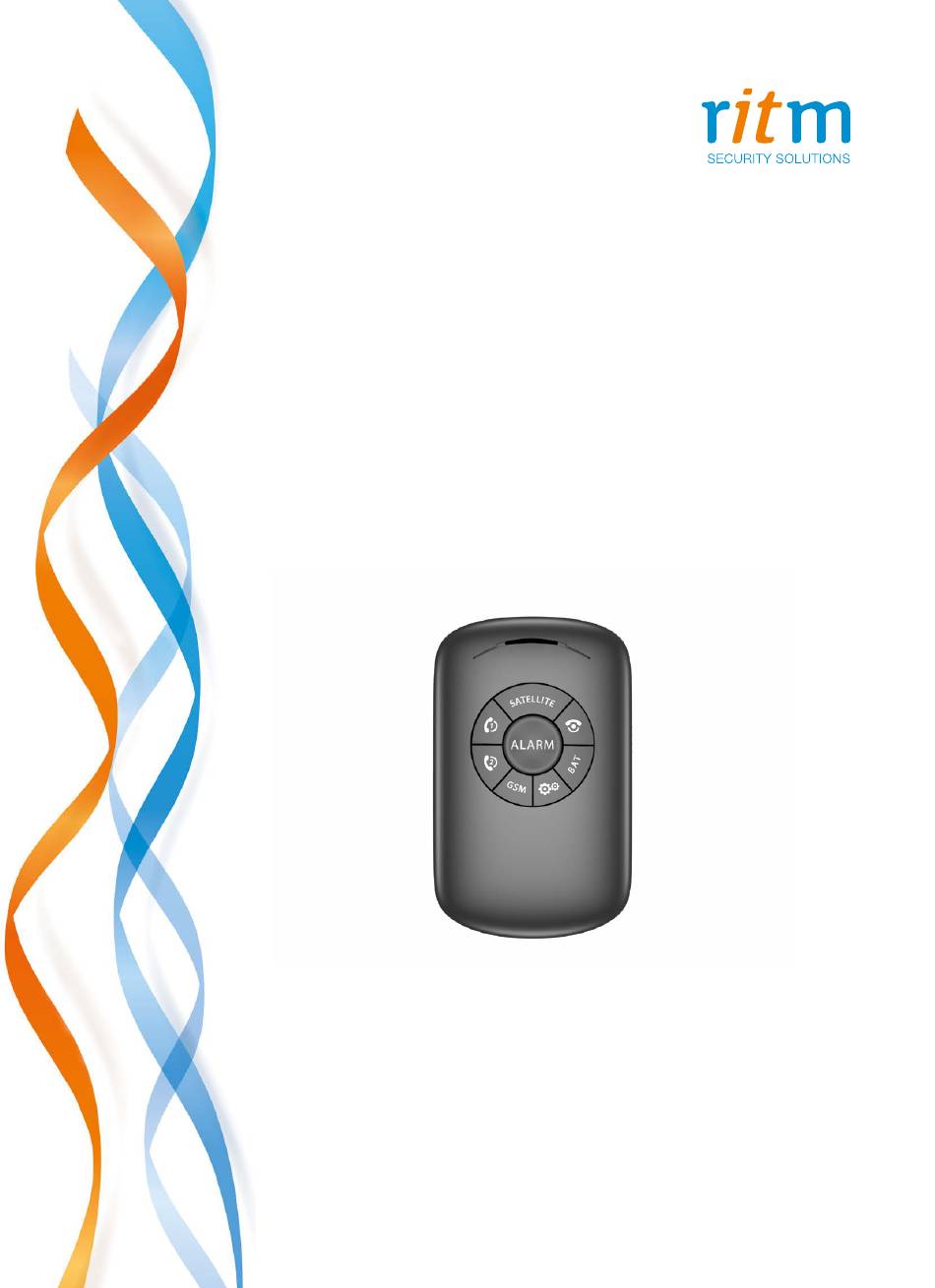

    Voyager 3N Quick start guide Ver. 1.1 Saint Petersburg, 2018...
  • Page 2 Voyager 3N. Quick start guide. Prepare your device Prepare your device for connection according to the Data sheet. • Open your Voyager 3N. • Put the SIM card to holder (under the battery). Make sure, that your SIM card does not require a password.
  • Page 3 Online Configuration The easiest and the fastest way to configure the device is via Online Configuration. Go to www.eu.ritm.ru. You can choose the language in the upper right corner. Click the “Registration” link to sign up. Fill out the registration form.
  • Page 4 Click on the button “Open Monitoring interface”. You can select “Run Object Add Wizard automatically”, or open this wizard later. Now you should see the main page of GEO.RITM interface. www.ritm.ru/en...
  • Page 5 Voyager 3N. Quick start guide. If you didn’t open the “Add Object Wizard” yet, you can click on “plus” button. And add a group and an object. You will see this page. Just click “Next”. www.ritm.ru/en...
  • Page 6 Voyager 3N. Quick start guide. Here you should put the IMEI of your device. You can find it out from the Data sheet of your device, or written on the modem in your device. Click “Next”. www.ritm.ru/en...
  • Page 7 Voyager 3N. Quick start guide. Click “Next“. If you see this page, the server now identified your Voyager 3N. www.ritm.ru/en...
  • Page 8 Vehicles and Real Estate, so you can choose a Vehicle. Click “Next”. Your Voyager 3N is ready to work. You can see your device on the map, when you put the tick on your device in the left menu.
  • Page 9 Voyager 3N. Quick start guide. You can click on the image of your Voyager 3N on the map and see the events, general report and object’s card (you can open it from the left menu as well). When you will open object’s card, you can choose the “Equipment”...
  • Page 10 Voyager 3N. Quick start guide. www.ritm.ru/en...
  • Page 11 Voyager 3N. Quick start guide. Configure your device After the successful connection you will see this page. If you have an item Available update (red color), you should click on it. Then click on “start updating”, you will see updating progress.
  • Page 12 Voyager 3N. Quick start guide. When you change some settings, you have to click on “Save changes” before you leave the current page! www.ritm.ru/en...
  • Page 13 The alternative way to set-up your device is via the USB-cable. Prepare your device for set-up: • Connect your Voyager 3N to the PC by MicroUSB cabel. Download the software • Go to our website www.ritm.ru, in the right top corner you can choose the English language.

  • Page 14: Install The Software

    Voyager 3N. Quick start guide. Install the software Unzip archive Drivers, and Install the downloaded Driver (Drivers\CP210x_VCP\CP210x_VCPInstaller_x64 or Drivers\ CP210x_VCP\CP210x_VCPInstaller_x32), depending on the version of your operating system: • Accept the agreement, click “Next”. • Click “Finish”. www.ritm.ru/en...
  • Page 15 Voyager 3N. Quick start guide. Also, you will need to install driver of virtual COM port (from \ Drivers\ST_VCP\VCP_V1.3.1_setup, or \Drivers\ST_VCP\VCP_ V1.3.1_setup_x64), depending on your operating system: • Same steps: click next, and finish. www.ritm.ru/en...
  • Page 16 Voyager 3N. Quick start guide. Check the connection of the device to your PC Open the PC manager. Click on the Device Manager and look at COM ports. Port for RITM USB is called “Silicon labs CP210x USB to UART Bridge (COM4)”. www.ritm.ru/en...
  • Page 17 Voyager 3N. Quick start guide. Please remember the number of your COM port, it will be important in the future. The number of your COM port may vary from that shown in the illustration. Open the configuration wizard Run the downloaded configuration program from the file, it will look like this: In the right bottom corner you can choose the language.
  • Page 18 Go to Device Details, where you can find common information about your Voyager 3N. Here you should copy the IMEI of your Voyager 3N, and check the registration in GSM network. If you have bad reception conditions of GSM, or SIM card doesn’t work, you will see, that SIM has “No registration in GSM network”.
  • Page 19 Voyager 3N. Quick start guide. You have to configure your GPRS connection. Go to the section GPRS parameters and fill it accordingly to your own settings. You can find it out from your GSM provider. Make sure, there is no tick for “Specify APN configuration automatically”.
  • Page 20 2. Type the number of your object, leave the password as default. 3. Then type in the box your “IP address of the main coordinate receipt server or its domain name” dev1.eu.ritm.ru 4. And in the box “Port of the main coordinate receipt server” port number 9426.

  • Page 21: Change History

    Voyager 3N. Quick start guide. Change History Revision Revision date Description 28.02.2017 Full revision of document 25.10.2018 Small edits in the section "Prepare your device" www.ritm.ru/en...
