Rain Bird XCZ-LF-100-PRF Installation And Operation

Replacement Parts

The PRF filter comes with a 200 mesh stainless steel filter installed.
RBY-200-SS-MX 200 mesh stainless steel filter element

Operation Range

Flow 0.2 to 5.0 gpm (0,8 to 18,9 L/m)
Inlet Pressure 20 to 120 psi (1,8 to 8,3 bar)
Outlet Pressure Regulated at 30 psi (2,1 bar)
Water Temperature 33°F (0,5°C) to 110°F (43°C)
Ambient Temperature 33°F (0,5°C) to 125°F (52°C)
Valve Voltage 24 VAC 50/60 Hz (cycles/sec)

Related Products

XFD-xx-xx-xxx XF Series Dripline
Available in 0.6 or 0.9 GPH at 12", 18", or 24" spacing.
Rain Bird Corporation
970 West Sierra Madre Avenue, Azusa, CA 91702, U.S.A.
Phone: (626) 812-3400 Fax: (626) 812-3411
Rain Bird Corporation
6991 East Southpoint Road, Tucson, AZ , 85706, U.S.A.
Phone: (520) 741-6100 Fax: (520) 741-6522
Rain Bird International, Inc.
P.O. Box 37, Glendora, CA, 91740-0037, U.S.A.
Phone: (626) 963-9311 Fax: (626) 852-7343
www.rainbird.com
The Intelligent Use of Water™ -- Visit www.rainbird.com to learn about our efforts
® Registered trademark of Rain Bird Corporation
© 2008 Rain Bird Corporation 7/08

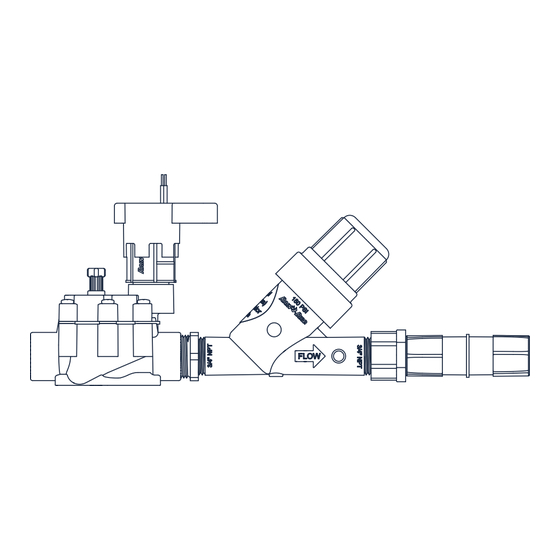

1" Low-Flow Control Zone Kit
P/N 177630
Rev A
with PR Filter
Model:
XCZ-LF-100-PRF
Installation and Operation
