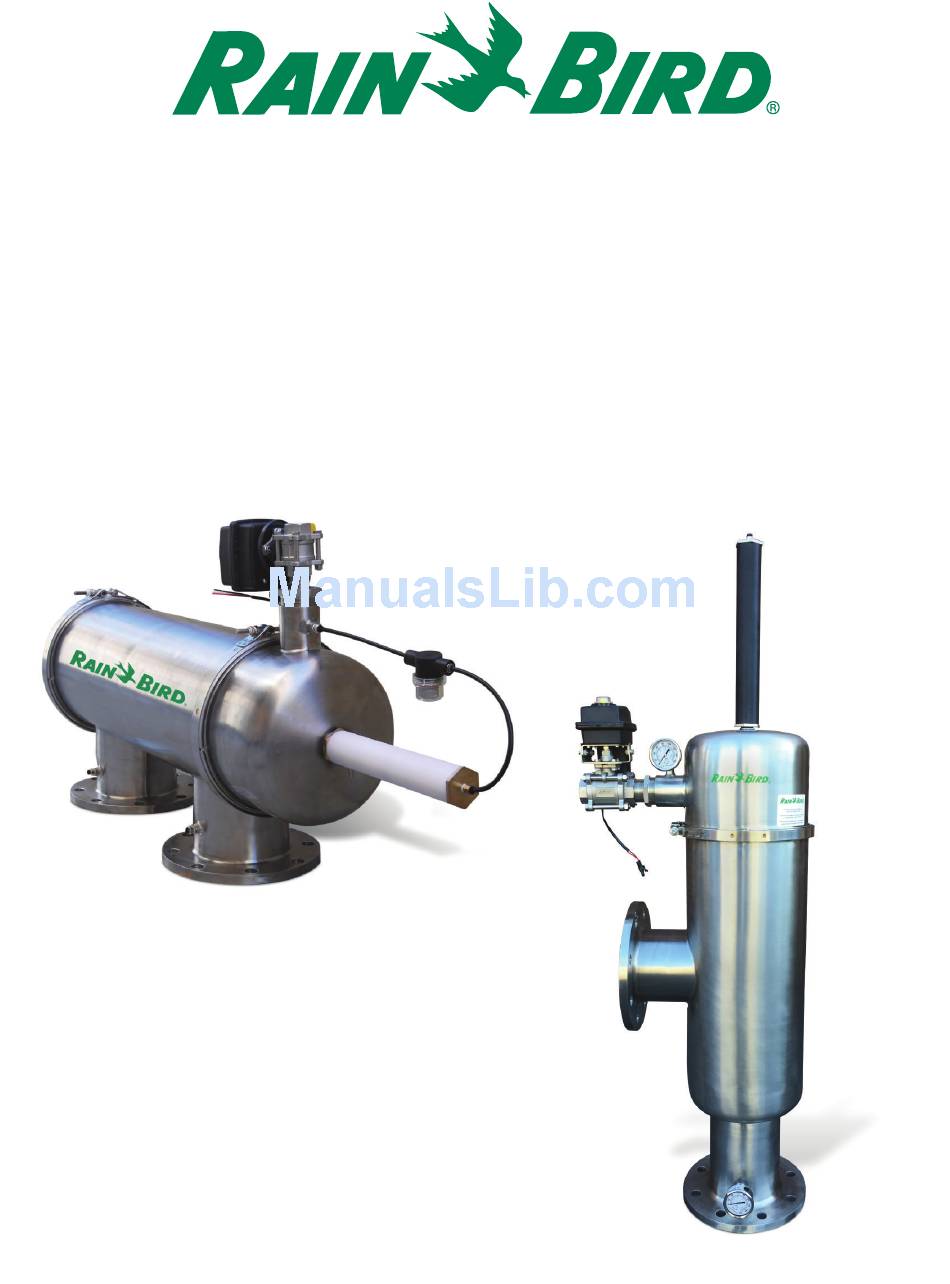

- Page 1 C+ SERIES SELF CLEANING WATER FILTER OPERATION & MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
Hydraulic Connections Hydraulic Piston Filter Performance Normal Operation Backwash Cycle Flow & Pressure Requirements Maintenance & Spare Parts Startup Shutdown Periodic Maintenance Spare Parts Particle Remover Hydraulic Piston Installation & Wiring C+ Series Filter 2x C+ Series Filters in Parallel Warranty... -
Page 3: Filter Basics
Filter Basics The Rain Bird C+ Series is a self cleaning screen water filter. The major components include the Filter Housing (1), Coarse Screen Pre-Filter (11), Fine Screen Filter Element (2), Particle Remover (3), Hydraulic Piston (8), and Backwash Valve (12). -
Page 4: Installation Requirements
Installation Requirements C+ Series filters may be mounted directly on the inlet (N1) and outlet (N2) flanges, and positioned in any orientation. Isolation valves should be installed at the inlet and outlet, and a bypass valve should be installed between the flanges. -
Page 5: Hydraulic Connections
C+ SERIES FILTER - NORMAL OPERATION This drop in outlet pressure is monitored by the differential pressure gauge, which at seven PSID (pounds per square inch differential) sends a signal to the controller to initiate a backwash cycle. -
Page 6: Backwash Cycle
This creates a low pressure path inside the particle remover, which acts as a vacuum at the end of the suction nozzles, removing the built up debris from the inside of the fine screen. C+ SERIES FILTER - BACKWASH CYCLE FLUSH INTERIOR OF FILTER... -
Page 7: Flow & Pressure Requirements
Maintenance & Spare Parts STARTUP When pumping water through the Rain Bird C+ Series for the first time or after it has been emptied, it is important to follow a correct sequence of valve actuation in order to prevent damage to the filter components. -
Page 8: Shutdown
Verify that the piston rod is moving smoothly in and out, and inspect the piston tip for wear. C+ SERIES FILTER - PERIODIC INSECTION Remove the hydraulic motor from the rest of the particle remover by accessing it through the piston-side cover. -
Page 9: Spare Parts
SPARE PARTS Spare parts for maintenance for two years include: Screen O-rings (6) Cover Seal (5) Suction Nozzles (3.5) Bushing (4) Differential Pressure Gauge (18) Piston Shaft Tip (8.9) Piston Seal Kit (8K) Mini-Filter (16) Valve (p/n 12) Fine Screen (2) Particle Remover (3) Spacer (7) PARTICLE REMOVER - PART LIST... -
Page 11: Installation & Wiring
F2-110/220 DWELL ALARM 1 /4 MANUAL START/ ADVANCE COUNTER (HOURS) RESET BACKWASH COUNT 1 80 ALARM RESET 1 20 (SEC) POWER (SEC) W R W W R W FLUSH Valve Connections Red-----------W(left) Black-------W(right) White---------------1 Filter Differential Isolation Isolation Pressure Valve Valve Bypass Gauge... -
Page 12: C+ Series Filters In Parallel
F2-110/220 DWELL ALARM MANUAL START/ ADVANCE COUNTER (HOURS) RESET BACKWASH COUNT ALARM RESET POWER (SEC) (SEC) Y OR Y FLUSH Valve Connections Red-----------W(left) Black-------W(right) White---------------1 Filter Differential Isolation Isolation Pressure Valve Valve Bypass Gauge Valve INLET OUTLET Valve Valve Isolation Isolation Filter Valve Connections... -
Page 13: Warranty
18 months from the date of original shipment. Rain Bird will replace any part found defective during the warranty period, provided the equipment in question was handled, installed, and operated in accordance with the operation and maintenance manual and sound engineering practices. - Page 14 Azusa, CA 91702 Phone: (520) 741-6100 Phone: (626) 812-3400 Phone: (626) 963-9311 Fax: (520) 741-6522 Fax: (626) 812-3411 Fax: (626) 852-7343 Filter Support www.rainbird.com 1-877-648-9532 (U.S. and Canada) lters@rainbird.com Registered Trademark of Rain Bird Corporation ® © 2016 Rain Bird Corporation 11/16...
