Securely close the back cover. If not closed
securely, the back cover may come off and the
battery pack may fall out due to vibration. Also, the
waterproof/dust-proof performance may be
impaired, resulting in allowing water to seep or
dust to get in.

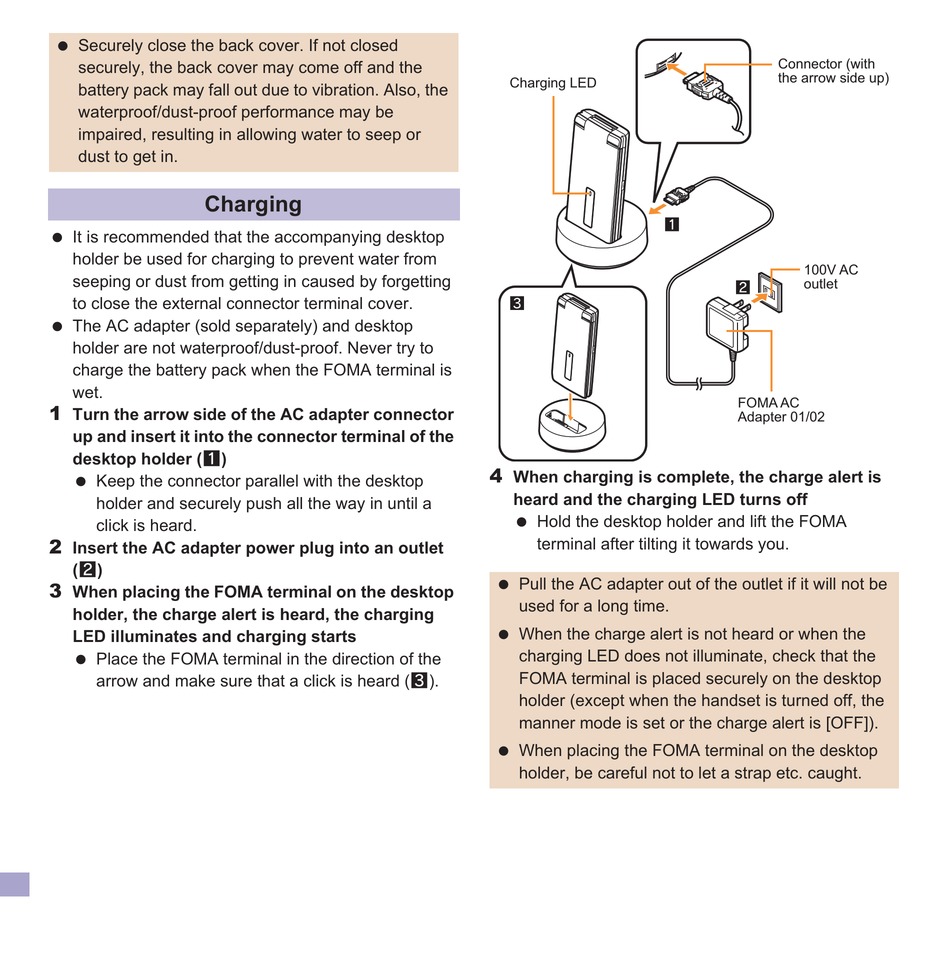

It is recommended that the accompanying desktop
holder be used for charging to prevent water from
seeping or dust from getting in caused by forgetting
to close the external connector terminal cover.
The AC adapter (sold separately) and desktop
holder are not waterproof/dust-proof. Never try to
charge the battery pack when the FOMA terminal is
wet.
1
Turn the arrow side of the AC adapter connector
up and insert it into the connector terminal of the
desktop holder (1)
Keep the connector parallel with the desktop
holder and securely push all the way in until a
click is heard.
2
Insert the AC adapter power plug into an outlet
(2)
3
When placing the FOMA terminal on the desktop
holder, the charge alert is heard, the charging
LED illuminates and charging starts
Place the FOMA terminal in the direction of the
arrow and make sure that a click is heard (3).
104
Charging
Charging LED
4
When charging is complete, the charge alert is
heard and the charging LED turns off
Hold the desktop holder and lift the FOMA
terminal after tilting it towards you.
Pull the AC adapter out of the outlet if it will not be
used for a long time.
When the charge alert is not heard or when the
charging LED does not illuminate, check that the
FOMA terminal is placed securely on the desktop
holder (except when the handset is turned off, the
manner mode is set or the charge alert is [OFF]).
When placing the FOMA terminal on the desktop
holder, be careful not to let a strap etc. caught.
Connector (with
the arrow side up)
100V AC
outlet
FOMA AC
Adapter 01/02
