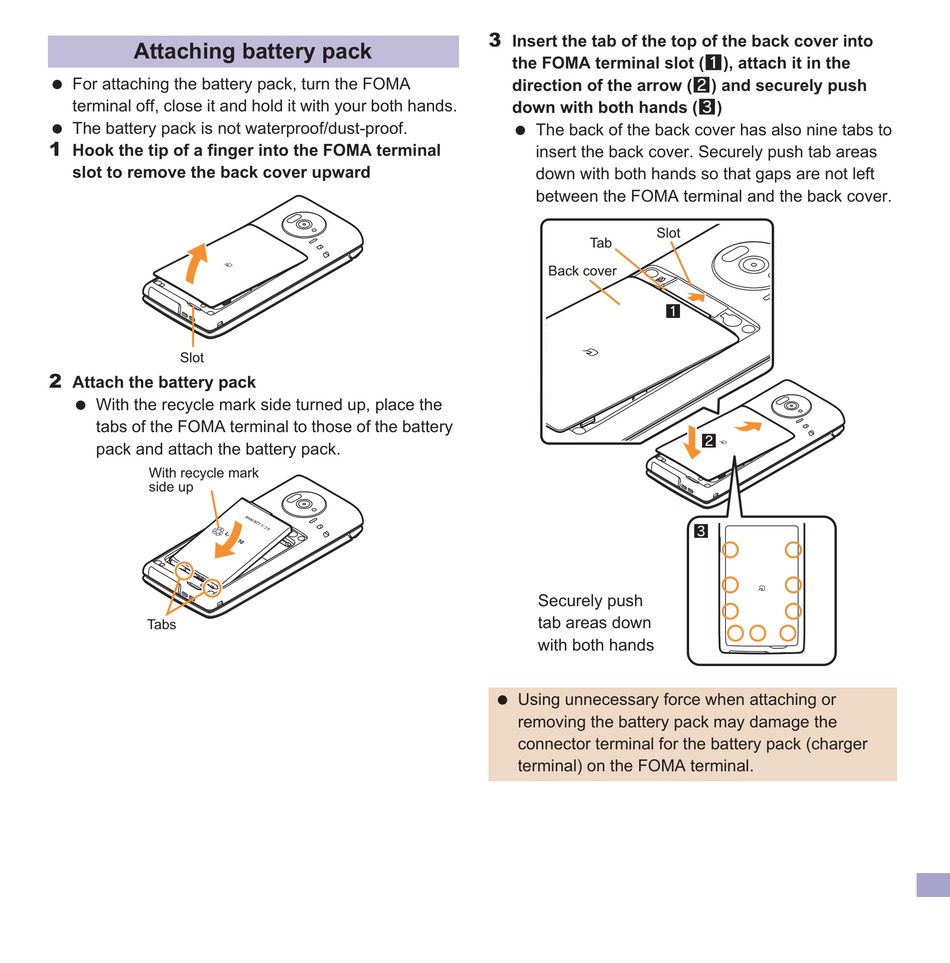

Attaching battery pack
For attaching the battery pack, turn the FOMA
terminal off, close it and hold it with your both hands.
The battery pack is not waterproof/dust-proof.
1
Hook the tip of a finger into the FOMA terminal
slot to remove the back cover upward
Slot
2
Attach the battery pack
With the recycle mark side turned up, place the
tabs of the FOMA terminal to those of the battery
pack and attach the battery pack.
With recycle mark
side up
Tabs
3
Insert the tab of the top of the back cover into
the FOMA terminal slot (1), attach it in the
direction of the arrow (2) and securely push
down with both hands (3)
The back of the back cover has also nine tabs to
insert the back cover. Securely push tab areas
down with both hands so that gaps are not left
between the FOMA terminal and the back cover.
Slot
Tab
Back cover
Securely push
tab areas down
with both hands
Using unnecessary force when attaching or
removing the battery pack may damage the
connector terminal for the battery pack (charger
terminal) on the FOMA terminal.
103
