deView electronics CF-Series Quick Start Manual

CF-Series
540TVLine High Resolution

Box Camera

Quick Start Guide

This camera is the ideal solution for home security and
surveillance needs. It provides excellent image quality
even in low-light conditions, by using a software night
mode to reduce color noise in reduced light.

Important Notes

Safety Information

This product is intended for security and surveillance
CCTV applications. It must be installed and maintained
in accordance with good installation practice.
Installation and servicing must only be carried out
by qualified personnel.
To avoid risk of damage or electric shock, do not
attempt to service this product or open the chassis.
This product contains no user-serviceable parts.
Low voltage cameras must be powered from a UL
listed class 2 power supply.
For outdoor use, please employ an IP65 (or better)
certified protective housing.
Mains cameras are not evaluated by UL.
CAUTION: To prevent risk of fire or electric shock,
do not expose this product to rain or moisture.
This camera is designed for indoor general-purpose
CCTV applications only. Do not expose to extreme
conditions such as temperatures outside the range of
-10ºC~50ºC (14ºF~122ºF).
This camera must be used in a clean, dry, dust-free
environment unless enclosed in an IP65 (or better)
certified housing.
Electromagnetic Compatibility (EMC)
The manufacturer declares that this product is compliant
with EMC directive 89/336, and Low Voltage Directive
LVD 73/23 EEC, conforming to the requirements of
standards EN 55022 for emissions, IEC801 parts 2, 3 and
4 for immunity, and EN 60065 for electrical equipment
NOTE: This is a class B product. In a domestic
environment this product may cause radio interference.

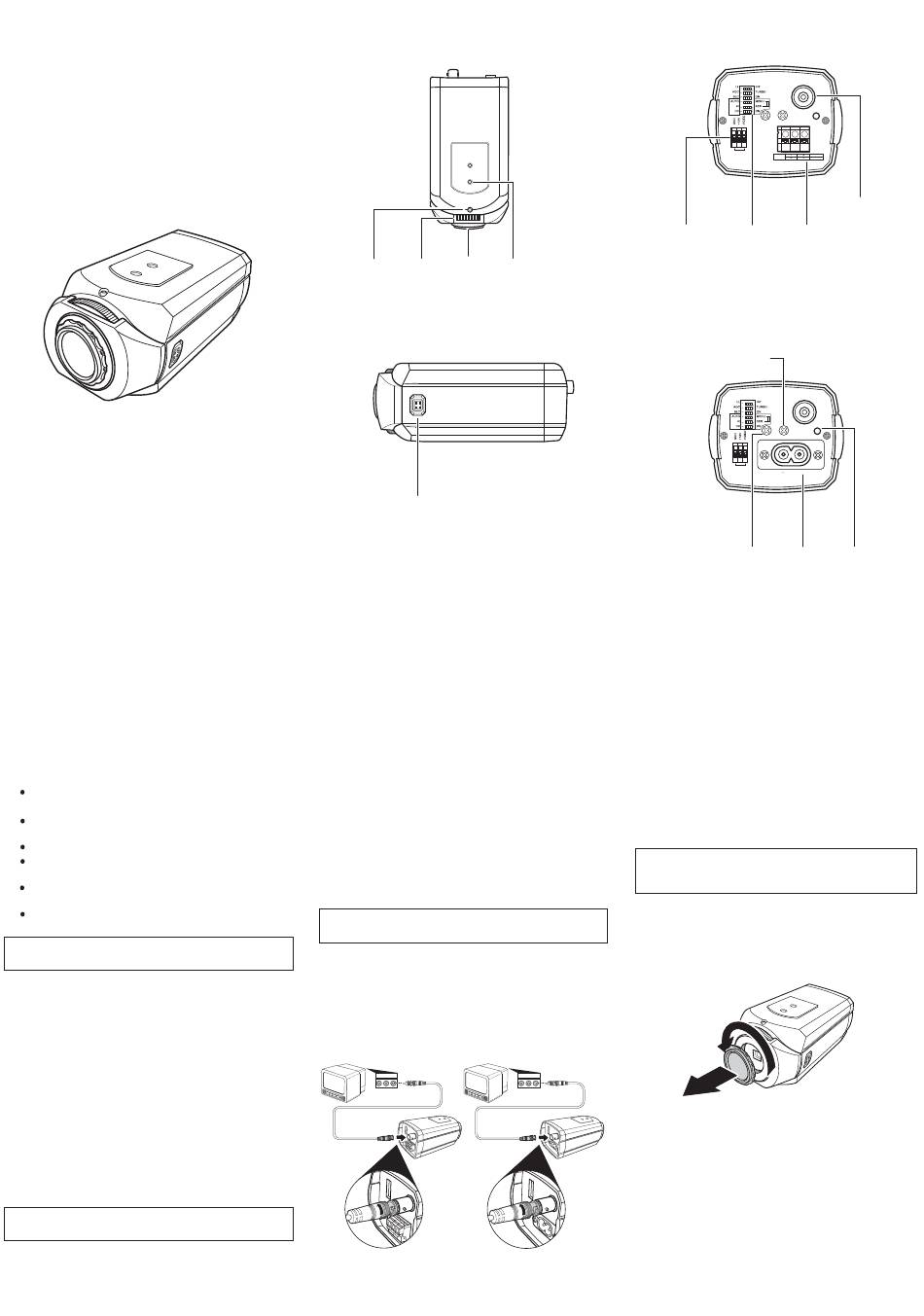

Getting to Know Your Camera

Focus Focus Lens
Lock Adjust Mount
Screw
Top View
DC Lens
Connector
Side View
Getting Started

Connecting to a Power Supply

Cameras are available in two types, AC mains and
AC/DC low voltage. Your camera type is clearly labeled
on the rear panel.
Mains Power Supply: This camera operates directly
from the mains supply come with a detachable power
supply cord. The operating voltage is 100~250VAC
Low Voltage Power Supply: This camera operates
between 11~28 VDC and 20-29VAC. Connections are
indicated above the terminals on the rear panel of the
The power LED on the rear panel is lit when the camera
is connected to a power source.
NOTE: The typical power consumption of a camera
is less than 5 Watts.

Connecting to a TV / Video

Connect a video coaxial cable terminated with a 75 Ohm
BNC connector to the BNC socket labeled VIDEO OUT.
Connect the other end of the cable to the VIDEO IN
socket of your video or television equipment.
R L VIDEO
Getting to Know Your Camera (cont.)
Video Lens Drive
Terminal Block
Bracket
Mount

Mounting Your Camera

Your camera can be mounted from the top or bottom,
either on a bracket or tripod. The mounting points accept
standard photographic mounting bolts (1/4" BSW or 20
UNC).
The mounting bracket must be capable of supporting
the camera and the lens.
Should the lens be substantially heavier than the camera,
it is recommended to use the mounting point on the lens
itself.
NOTE: Ensure the bracket hardware and mounting
surface can support the load of the camera and
bracket.

Installing Lenses

Before installing a lens, you must first remove the lens
cover from the camera.
R L VIDEO
VIDEO
POWER
- +
L H
V-PHASE ALC
VIDEO LENS
DC 12V
GND
AC 24V
BNC Composite
Video Output
Function Power Input
Switches Terminal Block
Rear Panel Connections
(AC/DC low voltage)
DC Lens
Adjustment
VIDEO
POWER
- +
L H
V-PHASE ALC
VIDEO LENS
100VA
V-Phase Power Power
Adjustment Socket LED
Rear Panel Connections
(AC mains)
