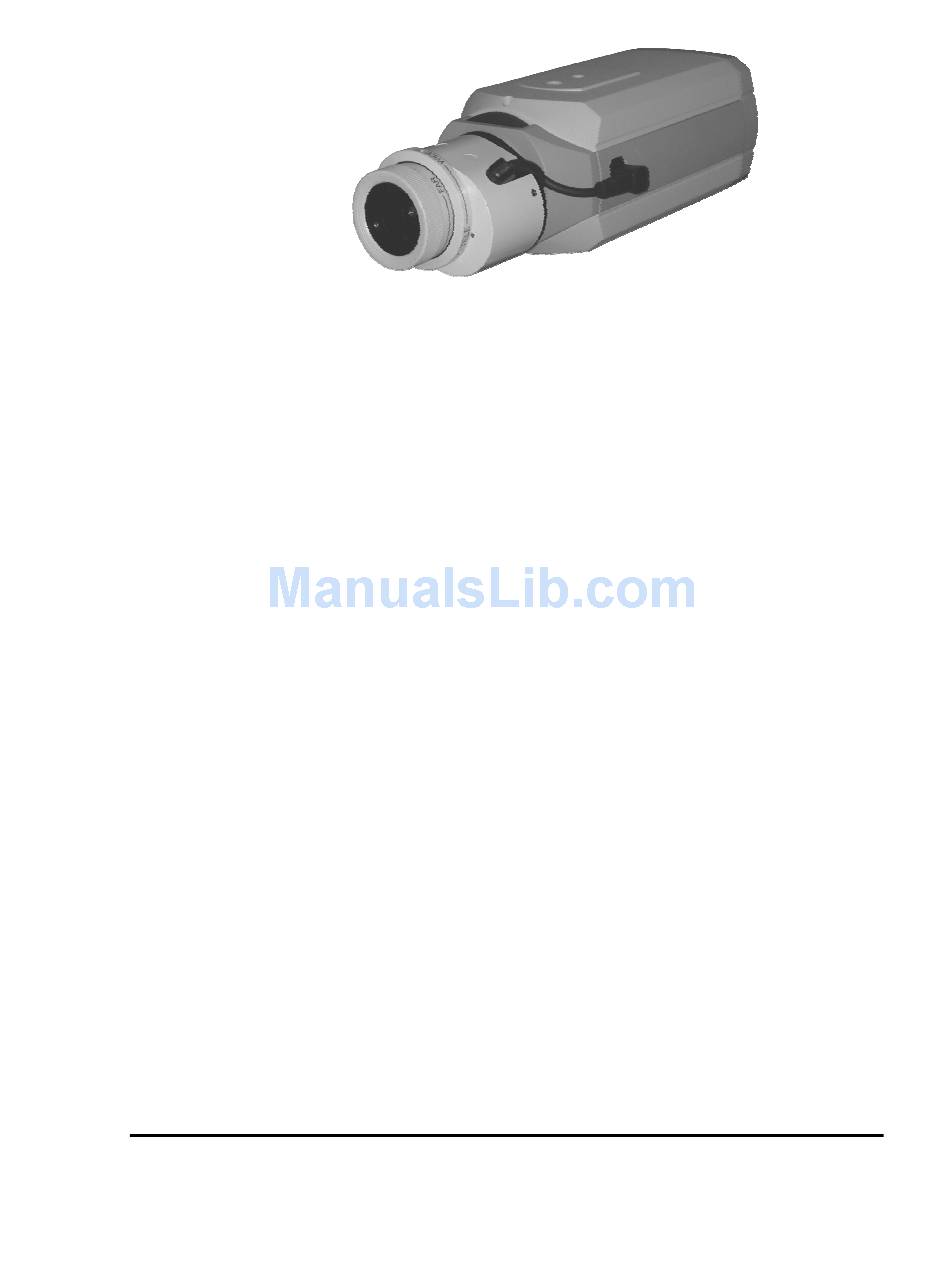

Lens not Included
CF /BF SERIES CAMERAS
L
INSTRUCTION MANUA
Wide Dynamic NTSC Hi-Resolution Dual Power
Wide Dynamic PAL Hi-Resolution Dual Power
Wide Dynamic PAL Hi-Resolution Mains Power
PAL Hi-Resolution Mains Power
PAL Hi-Resolution Dual Power
NTSC Hi-Resolution Dual Power
PAL STD-Resolution Mains Power
PAL STD-Resolution Dual Power
CCIR Hi-Resolution Mains Power
CCIR Hi-Resolution Dual Power
EIA Hi-Resolution Dual Power
CCIR STD-Resolution Dual Power
CCIR STD-Resolution Main Power
EIA STD-Resolution Dual Power
Please Read this Instruction First !!!
Advertisement
Table of Contents
Related Manuals for deView electronics CF Series
Summary of Contents for deView electronics CF Series
- Page 1 Lens not Included CF /BF SERIES CAMERAS INSTRUCTION MANUA Wide Dynamic NTSC Hi-Resolution Dual Power Wide Dynamic PAL Hi-Resolution Dual Power Wide Dynamic PAL Hi-Resolution Mains Power PAL Hi-Resolution Mains Power PAL Hi-Resolution Dual Power NTSC Hi-Resolution Dual Power PAL STD-Resolution Mains Power PAL STD-Resolution Dual Power CCIR Hi-Resolution Mains Power CCIR Hi-Resolution Dual Power...
-
Page 2: Product Safety
PRODUCT SAFETY Warning Installation and servicing is only carried out by suitable qualified and experienced personnel. Mains cameras contain hazardous voltage. Do not open covers as there is a risk of injury or death by electric shock. No servicing part inside camera. Low voltage cameras must be powered from a UL listed class 2 power supply. -
Page 3: Table Of Contents
CONTENTS Product Safety Electromagnetic Compatibility (EMC) Manufacturer's Declaration of Conformance Contents Introduction Packing List Part Descriptions Controls and Switches Backlight compensation Sharpness on/off Gamma Selection Automatic Gain Control on/off Electronic Iris (EI) on/off Synchronizations Selection (LL / INT) Power LED on/off Line Lock Phase Adjustment Potentiometer Auto-iris lens Type Selector Switch (Video Drive or Direct DC Drive) Auto-iris lens Connector... -
Page 4: Introduction
INTRODUCTION Read all of these instructions before using this camera. Retain them for reference for the lifetime of the camera. Note that not all cameras have all of the features described in this manual. Refer to the table below for the features of individual cameras. - Page 5 PART DISCRIPTION AND DIMENSION 1. Lens Mount. 8. Variable Resistor for Line Lock Phase Adjustment. 2. Back Focus Adjustment. 9. Variable Resistor for DC Lens Adjustment. 3. Back Focus Lock Screw. 10. LED for power Indication. 4. Bracket Mounting Screw Hole 11.
-
Page 6: Controls And Switches
CONTROLS AND SWITCHES Refer to the figure below for the various adjustments, controls and functions selectable from the 6pin DIP-switch switches. LL / INT This switch is used to select the synchronization mode of the camera. When the camera is connected to an AC supply, the Line-lock (LL) mode can be used. - Page 7 Auto / Manual Lens Type Selection ( Not available for Wide Dynamic Camera ) When set to AUTO the camera will automatically detect which type of lens is attached and configure itself accordingly. Plugging a DC lens into the side connector will enable DD lens drive. Connecting a Video Iris lens to the connector on the rear will select Video Iris drive.
-
Page 8: Power Led On/Off
POWER LED ON/OFF In normal operation, the LED on the rear panel of the camera is illuminated when power is connected to the camera. COMPOSITE VIDEO OUTPUT BNC CONNECTOR Connect a video coaxial cable terminated with a 75 Ohm BNC connector to the BNC socket marked VIDEO OUT. POWER SUPPLY Cameras are available in AC mains, and AC and DC low voltage types. -
Page 9: Installing Direct (Or D.c.) Drive Lenses
Installing Fixed IRIS lenses & Manual Iris lenses Turn the back focus adjustment ring fully clockwise (when viewed from the front -see Back Focus Adjustment), if using a C-mount lens. Fit the lens to the camera. Ensure the Electronic Iris (EI) and Automatic Gain Control (AGC) features are both turned ON (AUTO or MAN &... -
Page 10: Camera Mounting
Set the lens type selector switch to AUTO (or MAN and AI). Set the AGC switch to AGC. If the lens has a focusing ring fitted, set it to infinity (00) and then adjust the back focus. With typical scene illumination, set the Lens Level adjustment potentiometer on the lens for the correct exposure. -
Page 11: Specifications
SPECIFICATIONS Wide Dynamic PAL Dual Power General Wide Dynamic NTSC Dual Power Wide Dynamic PAL Main Power Image Size 1/3 Format Interline CCD Sensor Ye, Cy, Mg, G, color complementary mosaic filter 768 (H) × 494 (V) approx. 380K pixels 752 (H) ×... - Page 12 PAL Hi-Resolution Dual Voltage PAL STD-Resolution Dual Voltage CCIR Hi- Resolution Dual Voltage General PAL Hi-Resolution Mains Voltage PAL STD-Resolution Mains Voltage CCIR Hi- Resolution Mains Voltage 1/3 Format Interline CCD Sensor Ye, Cy, Mg, G, 1/3 Format Interline CCD Image Size color complementary mosaic filter Solid State Image Sensor...
- Page 13 General NTSC Hi-Resolution Low Voltage NTSC STD-Resolution Dual Power Image Size 1/3 Format Interline CCD Sensor Ye, Cy, Mg, G, color complementary mosaic filter Pixel Element 768 (H) × 494 (V) approx. 380K pixels 510 (H) × 492 (V) approx. 250K pixels Scanning Frequency NTSC 2 : 1 Interlace / H : 15750Hz , V : 59.94Hz Operation Temperature...
- Page 14 General EIA Hi-Resolution Dual Power Image Size 1/3 Format Interline CCD Solid State Image Sensor Pixel Element 768 (H) × 494 (V) approx. 380K pixels Scanning Frequency EIA 2 : 1 Interlace / H : 15750Hz , V : 59.94Hz Operation Temperature -10˚C ~ +50˚C Storage Temperature...
- Page 15 Drawing and Dimension - standard Range Camera...
- Page 16 Drawing and Dimension – Wide Dynamic Camera...
