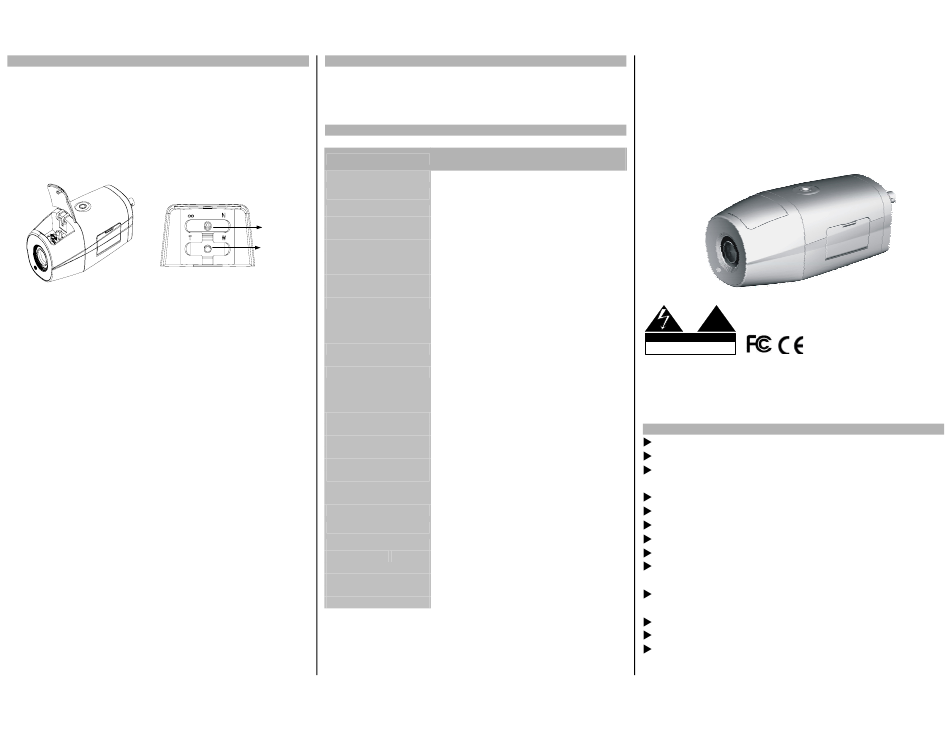

deView electronics CIH49 Manual

Camera Setup
A. Focus and View Angle Adjustment
The following adjustment should be made by qualified service
personnel or system installers.
1. Open the Vari-Focal Lens Cover on topside of camera head.
2. Move the zoom adjust screw to reach view angle of the image.
3. Adjust the focus forward or backward to have sharp picture on the
monitor.
4. After finished the focus and zoom adjust fix the screw to prevent
optical shift during shock or vibrations.
Caution:
Do not fix the lens screw too tight, otherwise the optical
mechanize unit might be damaged. Just finger tight only.
B. Level ( DC IRIS Level)
To adjust the level of DC auto iris lens.
C. Synchronization Mode Selector (INT, L/L):
Selects the camera synchronization mode in either internal sync mode
(INT) or line-lock mode (L/L). Use INT setting for special applications
only, as picture roll may occur in certain applications. It is highly
recommended to use L/L and supply the camera with 24 VAC.
Note : If the AC line contains noise (spike noise, etc.), the
stability of the vertical phase of the camera video output signal
may be disturbed.
D. V-Phase:
Line lock synchronization phase adjustment. Used to adjust the phase
when the synchronization select switch is set to "L/L".
How to make sure the Phase:
Set the oscilloscope to the vertical rate and expand the vertical sync
portion on the oscilloscope.
Rotate the VR of the V-Phase to match the vertical phase for both video
output signals as closely as possible.
E. Fleckless Mode
When interference from the fluorescent light source at install
environment, Switch to fleckless mode ON (FLE) to avoid this
phenomenon.
F. Back Light Compensation (BLC)
When strong, unwanted background lighting interferes with the clarity
of important areas, turn this switch to the "ON" position. The BLC is
center-balanced meaning that the BLC that compensates to the
backlight conditions outside the central area.
G. AGC Turbo
Switch to ON to increase the AGC to max. gain ( approx. 36dB).
Package
Camera
Instruction manual
Main Power Cable ( Main power model only )
RJ-11 Male Connector
Specifications
NTSC Hi-Resolution / NTSC STD-Resolution
General
EIA Hi-Resolution / EIA STD-Resolution
Image Size 1/3 Format Interline CCD Sensor
Hi-Resolution Model : 768H x 494V
Pixel Element
STD-Resolution Model : 510H x 492V
Scanning Frequency 2:1 Interlace, H : 15750Hz, V : 59.94Hz
Video Output 1.0Vpp Composite Video Output / 75 Ohm BNC
Focus
Audio Output 600mVpp
Exposure Control DC Drive Auto IRIS Lens
Zoom
BLC Central Area For Auto IRIS Lens
White Balance Auto White Balance ( Color Model Only )
Auto White Balance Range 2700K ~ 9100K ( Color Model Only )
SYNC System INT / Line-Lock Selectable
Resolution NTSC Hi-Resolution : 480 TV Line
EIA Hi-Resolution : 570 TV Line.
NTSC STD-Resolution: 330 TV Line.
EIA STD-Resolution : 400 TV Line
Minimum Illumination Hi-Resolution Model : 0.8 Lux @ F1.2 max.
STD-Resolution Model : 0.3 Lux @ F1.2 max.
S/N Ratio Color Hi-Pixel Model : 48dB.
Color STD-Pixel Model : 48dB.
B/W Hi-Resolution : 50dB.
B/W SDT-Pixel Model : 50dB.
Operation Temp. -10°C ~ +50°C, 80% RH.
Storage Temperature -20°C ~ +60°C, 95% RH.
Power Indicator 3Ø Green LED on Rear Panel
Power Source 9.6VDC ~ 14.4VDC / 19.2VAC ~ 28.8VAC, 60Hz
Power Consumption 4.2W Max.
Output Terminal BNC for Composite Video Output
RCA for Audio Output
RJ11 with Power Input / Video Output / Audio Output
Focal length 4mm ~ 9mm
Wide : F1.6 ~ 360.
Iris aperture
Tele : F2.4 ~ 360.
Auto Iris type Direct Drive (DC)
Angle of View Diagonal 92.6° ~ 39.4°
Horizontal 71.0° ~ 31.6°
Vertical 51.8° ~ 23.6°
Minimum Object Distance 50cm
External Dimension 63mm (W) x 55mm (H) x 136mm (D)
5
1 pcs.
1 pcs.
1 pcs.
LENS INTEGRATED
2 pcs.
！
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
To prevent fire or electric shock hazard, do not expose this
appliance to rain or moisture.
Feature
Artistic Design.
1/3'' Hi Performance CCD Sensor.
Integrated 4 ~ 9mm Auto IRIS Vari Focal Lens.
Allow View Angle 31.6° ~ 71.0° Horizontal.
DSP Technology Process.
High Quality Picture Performance.
Wide Range of Auto White Balance.
Audio Function Included.
Quick Cabling with RJ11 Connection.
Full Operation Power Range. Dual Power 24VAC/12VDC and
100VAC ~ 253VAC.
Flickerless Mode Improves Image In Fluorescent Lighting
Conditions
AGC Turbo Function Provide 2 Times Sensitivity.
AC Line Lock Capability (AC Power Input).
Part Number : 531-I1001-000
Back Light Compensation.
Version Number : 20030920-01B
6
CIH49
CAMERA
