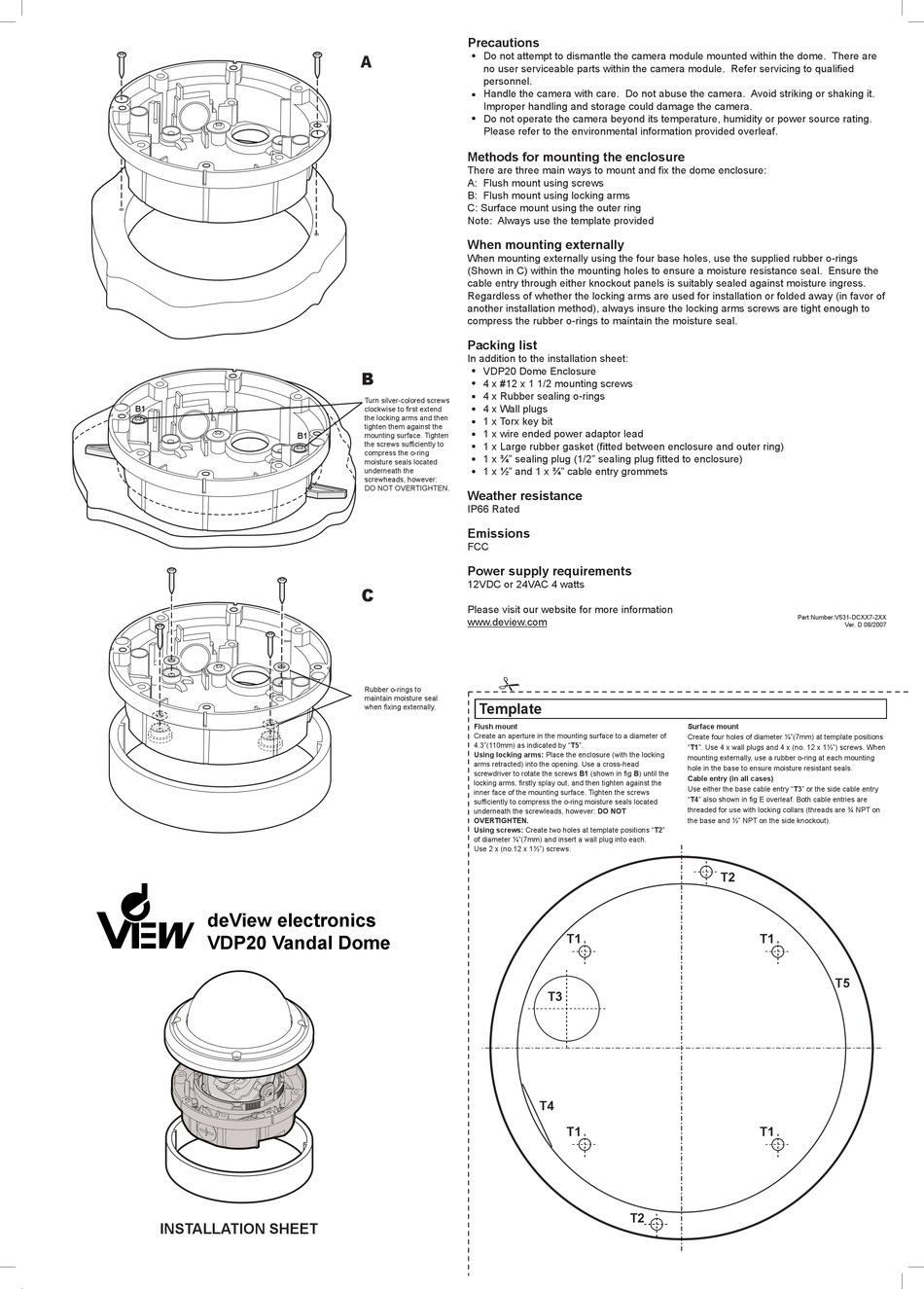

deView electronics vdp20 vandal dome Installation Sheet

B1
B1
deView electronics
VDP20 Vandal Dome
INSTALLATION SHEET
Precautions
•
Do not attempt to dismantle the camera module mounted within the dome. There are
A
no user serviceable parts within the camera module. Refer servicing to qualified
personnel.
• Handle the camera with care. Do not abuse the camera. Avoid striking or shaking it.
Improper handling and storage could damage the camera.
•
Do not operate the camera beyond its temperature, humidity or power source rating.
Please refer to the environmental information provided overleaf.
Methods for mounting the enclosure
There are three main ways to mount and fix the dome enclosure:
A: Flush mount using screws
B: Flush mount using locking arms
C: Surface mount using the outer ring
Note: Always use the template provided
When mounting externally
When mounting externally using the four base holes, use the supplied rubber o-rings
(Shown in C) within the mounting holes to ensure a moisture resistance seal. Ensure the
cable entry through either knockout panels is suitably sealed against moisture ingress.
Regardless of whether the locking arms are used for installation or folded away (in favor of
another installation method), always insure the locking arms screws are tight enough to
compress the rubber o-rings to maintain the moisture seal.

Packing list

In addition to the installation sheet:
•
VDP20 Dome Enclosure
B
•
4 x #12 x 1 1/2 mounting screws
•
4 x Rubber sealing o-rings
Turn silver-colored screws
•
4 x Wall plugs
clockwise to first extend
the locking arms and then
•
1 x Torx key bit
tighten them against the
• 1 x wire ended power adaptor lead
mounting surface. Tighten
the screws sufficiently to • 1 x Large rubber gasket (fitted between enclosure and outer ring)
compress the o-ring
• 1 x ¾" sealing plug (1/2" sealing plug fitted to enclosure)
moisture seals located
• 1 x ½" and 1 x ¾" cable entry grommets
underneath the
screwheads, however:
DO NOT OVERTIGHTEN.
Weather resistance
IP66 Rated
Emissions
FCC
Power supply requirements
12VDC or 24VAC 4 watts
C
Please visit our website for more information
www.deview.com

Rubber o-rings to
maintain moisture seal
Template
when fixing externally.
Flush mount
Create an aperture in the mounting surface to a diameter of
4.3"(110mm) as indicated by "T5".
Using locking arms: Place the enclosure (with the locking
arms retracted) into the opening. Use a cross-head
screwdriver to rotate the screws B1 (shown in fig B) until the
locking arms, firstly splay out, and then tighten against the
inner face of the mounting surface. Tighten the screws
sufficiently to compress the o-ring moisture seals located
underneath the screwleads, however: DO NOT
OVERTIGHTEN.
Using screws: Create two holes at template positions "T2"
of diameter ¼"(7mm) and insert a wall plug into each.
Use 2 x (no.12 x 1½") screws.
Surface mount
Create four holes of diameter ¼"(7mm) at template positions
"T1". Use 4 x wall plugs and 4 x (no. 12 x 1½") screws. When
mounting externally, use a rubber o-ring at each mounting
hole in the base to ensure moisture resistant seals.
Cable entry (in all cases)
Use either the base cable entry "T3" or the side cable entry
"T4" also shown in fig E overleaf. Both cable entries are
threaded for use with locking collars (threads are ¾ NPT on
the base and ½" NPT on the side knockout).
T1
T3
T4
T1
T2
Part Number:V531-DCXX7-2XX
Ver. D 08/2007
T2
T1
T5
T1
