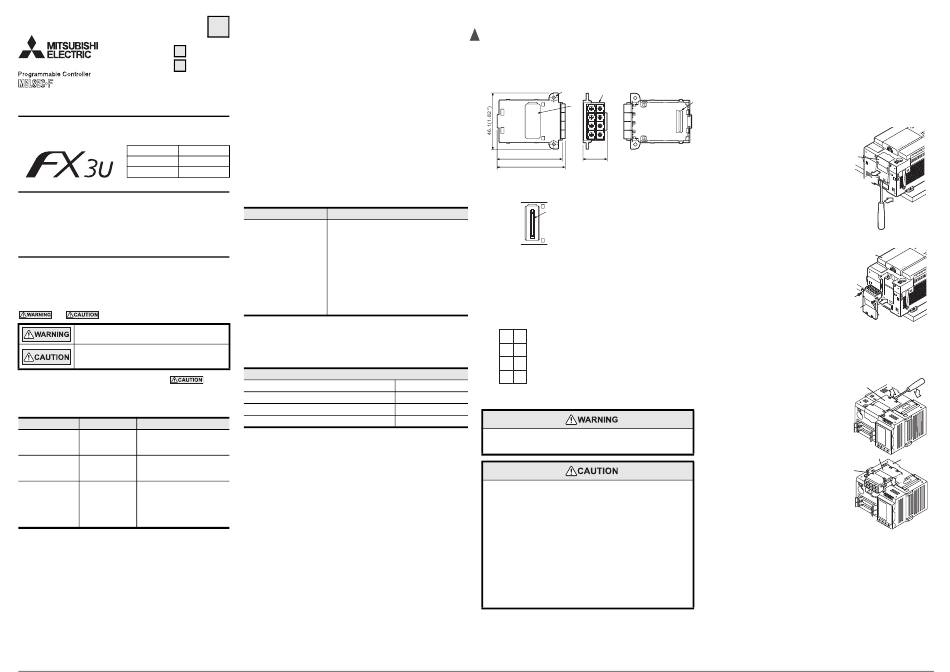

Mitsubishi Electric FX3U-8AV-BD User Manual

JY997D40901D
Side
JAPANESE
A
Side
ENGLISH
B
FX -8AV-BD
3U
USER'S MANUAL
Manual Number JY997D40901
Revision D
Date June 2018
This manual describes the part names, dimensions, mounting, and specifications
of the product. Before use, read this manual and the manuals of all relevant
products fully to acquire proficiency in handling and operating the product. Make
sure to learn all the product information, safety information, and precautions.
Store this manual in a safe place so that it can be taken out and read whenever
necessary. Always forward it to the end user.
Registration:
The company and product name described in this manual are registered
trademarks or the trademarks of their respective companies.
Effective June 2018
Specifications are subject to change without notice.
©
2010 Mitsubishi Electric Corporation
Safety Precautions
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and .
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury or
physical damage.
Depending on the circumstances, procedures indicated by
cause severe injury.
It is important to follow all precautions for personal safety.
Associated Manuals
Manual name Manual No. Description
FX Series JY997D16501 Explains the FX Series PLC
3U 3U
User's Manual MODEL CODE: specification details for I/O, wiring,
- Hardware Edition 09R516 installation, and maintenance.
FX 3UC Series JY997D28701 Explains the FX 3UC Series PLC
User's Manual MODEL CODE: specification details for I/O, wiring,
- Hardware Edition 09R519 installation, and maintenance.
FX /FX /FX /
3S 3G 3GC
FX /FX Series
3U 3UC
JY997D16601 Describes PLC programming for
Programming
MODEL CODE: basic/applied instructions and
Manual
09R517 devices.
- B a s i c & A p p l i e d
Instruction Edition
How to obtain manuals
For product manuals or documents, consult with the Mitsubishi Electric dealer
from who you purchased your product.
Side
B
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive and LVD directive for the entire mechanical module
should be checked by the user/manufacturer. For more information please consult with
your nearest Mitsubishi product provider.
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (of the identified
standards below) and design analysis (through the creation of a technical construction
file) to the European Directive for Electromagnetic Compatibility (2014/30/EU) when
used as directed by the appropriate documentation.
Attention
This product is designed for use in industrial applications.
Type: Programmable Controller (Open Type Equipment)
Models: MELSEC FX series manufactured
3U
from August 1st, 2010 FX 3U -8AV-BD
Standard
EN61131-2:2007 Com pli anc e w it h al l rel ev ant asp ects of t he
Programmable controllers standard.
- Equipment requirements EMI
and tests • Radiated Emission
• Conducted Emission
EMS
• Radiated electromagnetic field
• Fast transient burst
• Electrostatic discharge
• High-energy surge
• Voltage drops and interruptions
• Conducted RF
• Power frequency magnetic field
1. Introduction
The FX 3U -8AV-BD is an expansion board equipped with eight analog set points which
can be used as an analog timer.
1.1 Incorporated Items
Check to ensure the following product and items are included in the package
Included Item
may also
FX -8AV-BD
3U
Trimmer layout label
M3 tapping screws for installation
Manuals (Japanese version, English version)
1.2 External Dimensions and Part Names
[1]
53.5(2.11")
55.9(2.20")
Special adapter connector
cover is removed
[5]
Remark
[1] Mounting holes(2- φ3.2 (0.13"))
[2] Special adapter connector cover
[3] Analog volume
[4] Main unit connector
[5] Special adapter connector
1.3 Trimmer Layout
VR0 VR1
VR2 VR3
VR4 VR5
VR6 VR7
1 unit
1 sheet
2. Installation
2 pcs
INSTALLATION
1 manual each
PRECAUTIONS
• Make sure to shut down all phases of the power supply externally before
installing.
Failure to do so may cause electric shock or damage to the product.
INSTALLATION
PRECAUTIONS
• Use the product within the generic environment specifications described in
PLC main unit manual (Hardware Edition).
Never use the product in areas with excessive dust, oily smoke, conductive
dusts, corrosive gas (salt air, Cl
vibration or impacts, or expose it to high temperature, condensation, or rain
and wind.
If the product is used in such conditions, electric shock, fire, malfunctions,
deterioration or damage may occur.
• Use screwdrivers carefully when performing installation work, thus avoiding
accident or product damage.
• When drilling screw holes or wiring, make sure that cutting and wiring debris
do not enter the ventilation slits of the PLC.
Failure to do so may cause fire, equipment failures or malfunctions.
• Do not touch the conductive parts of the product directly.
Doing so may cause device failures or malfunctions.
• Connect the extension board securely to their designated connectors.
Loose connections may cause malfunctions.
2.1 Installation Method
Unit: mm(inches) The following section describes the installation method to the FX
LT(-2) Series PLC.
[3]
2.1.1 FX
3U
[4]
1) Power off the PLC.
[2]
Disconnect all the cables connected to the PLC.
Demount the PLC from the DIN rail.
2) Using a flat head screwdriver as shown in
the figure on the right, lift the dummy
expansion board cover (fig. A) making sure
n o t t o d a m a g e t h e c i r c u i t b o a r d o r
electronic parts.
19.7
3) Remove the dummy expansion board
(0.78")
cover (fig. A) perpendicularly away from
the main unit.
MASS(Weight): Approx. 20g(0.05lbs)
4) Make sure the expansion board (fig. B) is in
parallel with the main unit (fig. C) and
attach it to the expansion board connector.
5) Fix the expansion board (fig. B) to the main
unit (fig. C) using the provided M3 tapping
screws (fig. D).
Tightening torque: 0.3 to 0.6 N•m
2.1.2 FX
3UC
1) Power off the PLC.
Disconnect all the cables connected to the PLC.
Demount the PLC from the DIN rail.
2) Using a flat head screwdriver as shown in
the figure on the right, lift the dummy
expansion board cover (fig. A) making sure
not to damage the circuit board or electronic
parts.
3) Remove the dummy expansion board cover
(fig. A) perpendicularly away from the main
unit.
4) Make sure the expansion board (fig. B) is in
parallel with the main unit (fig. C) and attach
it to the expansion board connector.
5) Fix the expansion board (fig. B) to the main
unit (fig. C) using the provided M3 tapping
screws (fig. D).
Tightening torque: 0.3 to 0.6 N•m
, H S, SO or NO ), flammable gas,
2 2 2 2
/FX -32MT-
3U 3UC
Series PLC
A
3)
2)
C
5)
D
B
4)
D
-32MT-LT(-2) Series PLC
3)
A
2)
B
C
5)
D
4)
