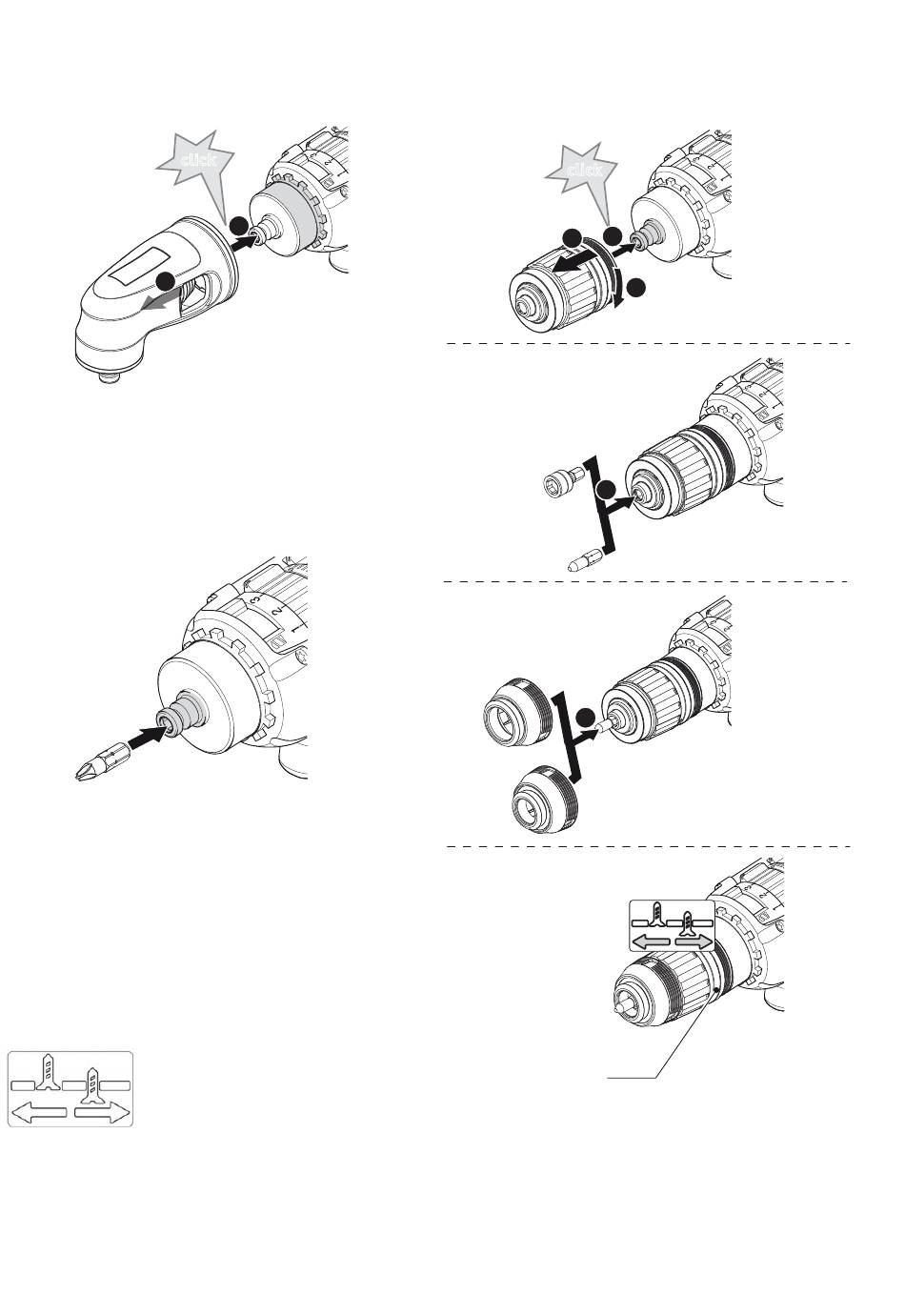

Angle attachment [5]

Drilling and screwdriving at right angle to machine
(partly as an accessory).
5
1

Tool holder in the drill spindle [6]

Bits can be inserted directly into the hexagon sock-
et holder of the drill spindle.
6

Depth stop [7]

The depth stop (partly as an accessory) allows the
user to insert screws to a predefined depth. You can
set the dimension by which the screw head pro-
trudes above or is recessed below the surface of the
workpiece.
Depth setting
Turn the housing [7-1] to set the
desired fastening depth. Each
10
click
2
detent position changes the fastening depth by 0.1
mm.
Sleeve A/B must be removed before a screw can be
unscrewed.
7
click
2
1
4
A
5
B
7-1
3
