4400 Series UPS Seismic Adapter Kit
The 4400 Series cabinets can be installed to meet California OSHPD seismic specifications using the
optional Seismic Kit and the floor anchorages specified below.
These instructions describe how to install the seismic adapter kits on the 4400 Series UPS, Battery , and
Auxiliary Cabinets. There is a SEISMIC KIT for each cabinet style: 15-30 kVA, 50 kVA, and 80 kVA.
1. 4400 15-30kVA
2. 4400 50kVA
Seismic Installation
3. 4400 80kVA
Seismic Installation
1. 4400 15-30kVA Seismic Installation

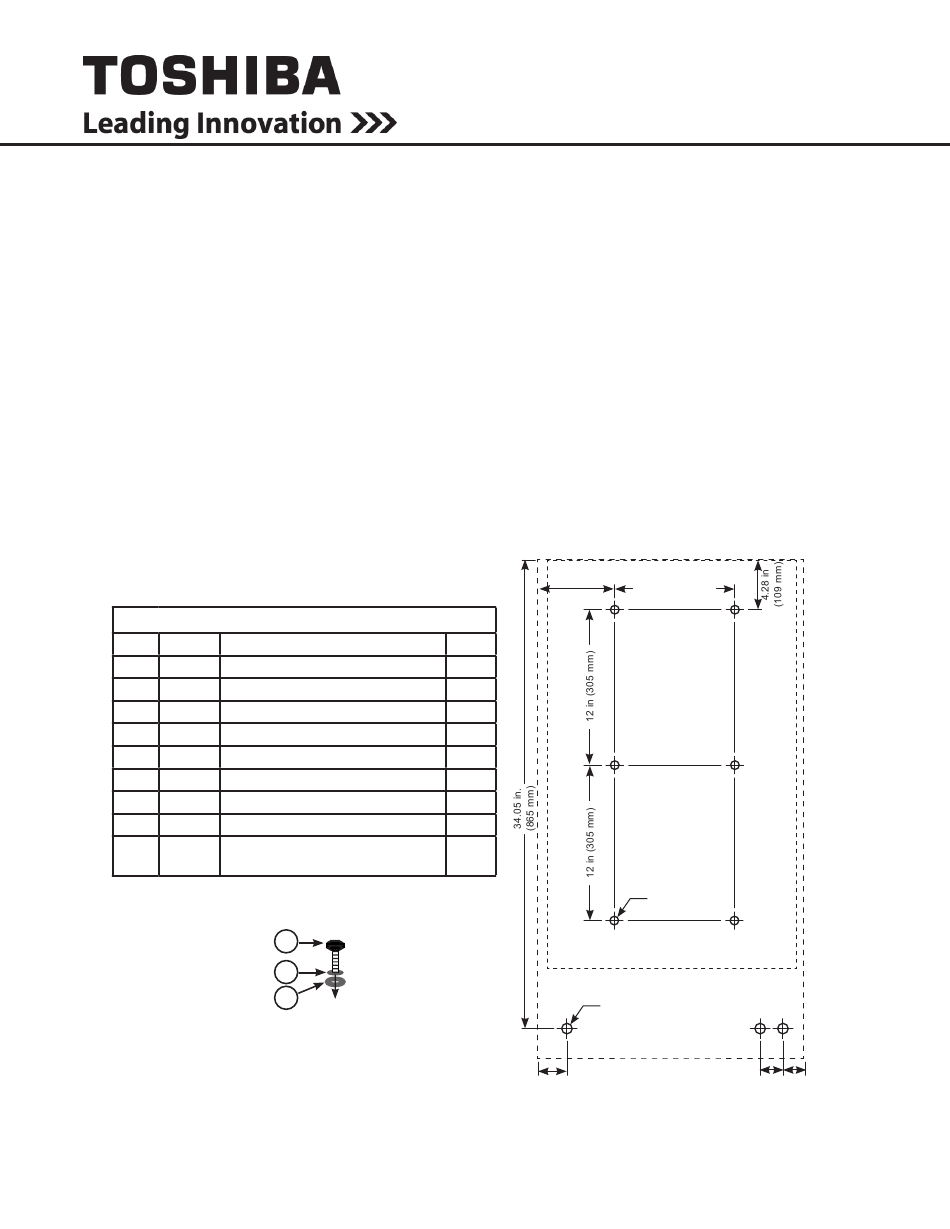

Table 1 lists the contents of the 4400 15-30kVA Seismic Kit. Figure 1 shows the order of assembly for the
[bolt + lockwasher + washer] fastener group.
TABLE 1 15-30KVA SEISMIC CONTENTS
440300SEISMICKIT Contents
No.
P/N*
1
93437
TOP SEISMIC BRACKET 30kVA)
3
67813
BASE MOUNTING BRACKET,
4-a
Hex Bolt, 1/4—20,1-1/2"
4-b
Flat Washer, 1/4
4-c
E—Ring, F/0.25 Shaft
11-a
Hex Bolt, 5/16—18 x 1"
11-b
Lock Washer, 5/16
11-c
Flat Washer, 5/16
94016
4400 Seismic Kit Installation
Manual
a
b
c
FIGURE 1: FASTENER GROUP
(BOLT +LOCK WASHER +
WASHER)
4400 Series UPS Seismic Kit Installation Instructions – 94016-001
Date: October 2015
Doc. No.: 94016-001
Seismic Installation
Description
Quan
1
1
1
1
1
10
10
10
1
5.55 in
(141 mm)
9.22 in (234 mm)
1/2 in. Bolt (6)
Base Plate Footprint
Conduit Knock-out
(3 Places)
Cabinet Footprint
2.75 in
2.0 in
(70 mm)
(51 mm)
FIGURE 2: 15-30KVA SEISMIC
ANCHORAGE - FLOOR PATTERN
1.75 in
(44.4 mm)
