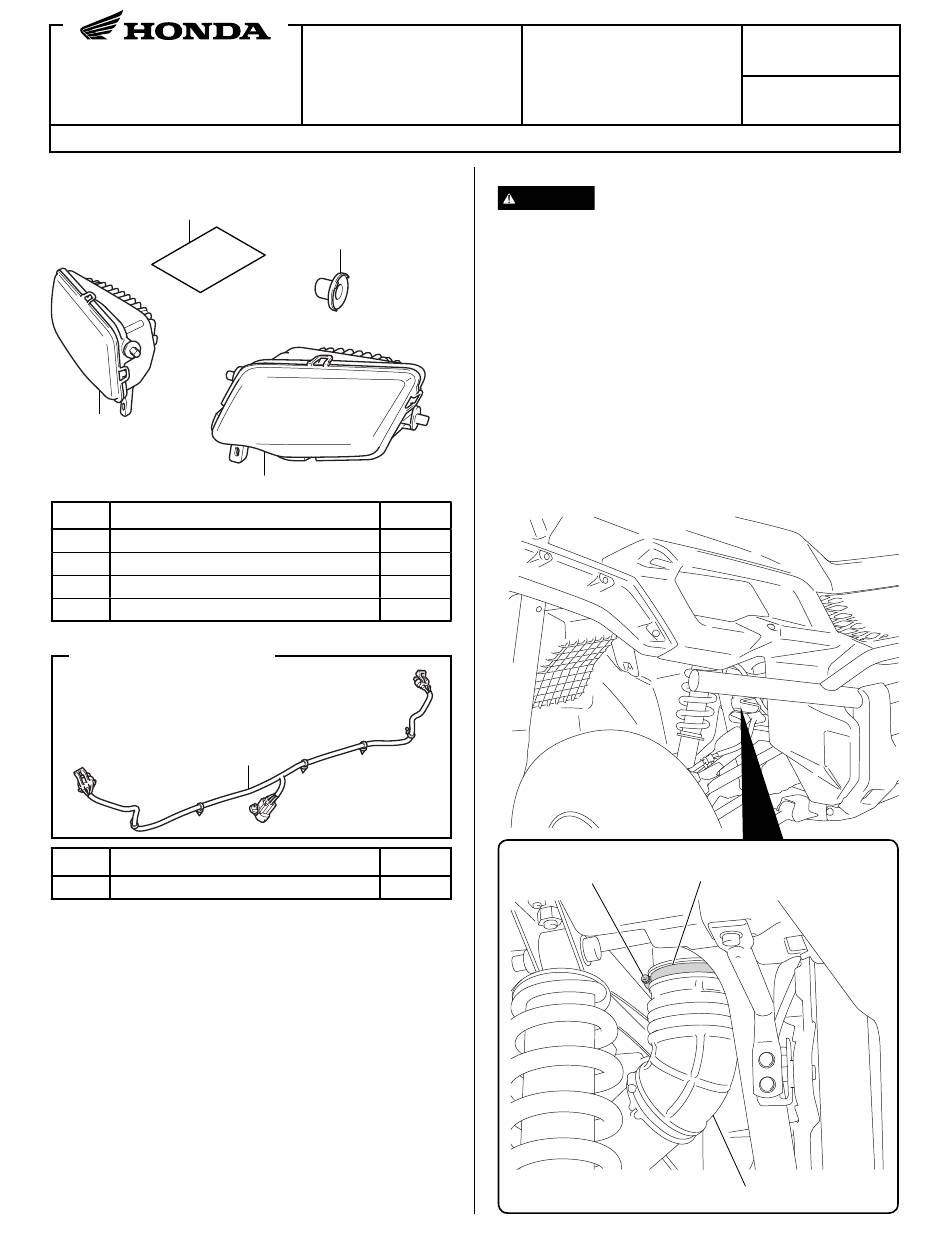

INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of these instructions to your customer.
PARTS LIST
(1)
(2)
No.
Description
(1)
Installation Instructions URL
(2)
Right LED headlight
(3)
Left LED headlight
(4)
Headlight cap
LED HEADLIGHT SUB HARNESS
Sold separately
No.
Description
(1)
LED Headlight sub harness
TORQUE CHART
Refer to the Service Manual for the torque values of the
removed parts.
© 2015 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
LED HEADLIGHT
P/N 08V71-HL4-A00
(4)
(3)
Qty
1
1
1
4
(1)
Qty
1
Application
SXS1000M3/M3P/M5P
INSTALLATION
CAUTION
• To prevent burns, allow the engine, exhaust system,
radiator, etc., to cool before installing the accessory.
NOTE:
• Disconnect the battery negative (-) cable before
installing this accessory.
• The memory of the clock will be erased when
you disconnect the battery. Reset the clock after
reconnecting the battery.
• Reinstall the removed parts on the vehicle and make
sure that the wires and harnesses are not pinched.
1.
Loosen the band as shown.
<Right side>
SCREW
Loosen.
1 of 7
Publication No.
MII 15262
Issue Date
September 2015
BAND
DUCT
87972-HL4-A001

Advertisement

   Related Manuals for honda 08V71-HL4-A00

   Summary of Contents for honda 08V71-HL4-A00

  • Page 1

    SXS1000M3/M3P/M5P Issue Date P/N 08V71-HL4-A00 INSTRUCTIONS September 2015 Honda Dealer: Please give a copy of these instructions to your customer. PARTS LIST INSTALLATION CAUTION • To prevent burns, allow the engine, exhaust system, radiator, etc., to cool before installing the accessory.

  • Page 2

    2. Remove the vehicle’s parts as shown. 4. Remove the clips as shown. <Left side> CLIP CLIP BOLT BOLT 3. Remove the front bumper as shown. CLIP 5. Remove the left front door as shown. LEFT FRONT DOOR FRONT BUMPER Remove the bolts as shown.

  • Page 3

    6. Remove the left front mud guard as shown. 10. Remove the battery stay as shown. LEFT FRONT BATTERY STAY MUD GUARD BOLT CLIP CLIP 11. Remove the battery and battery cushion as shown. Remove the bolt as shown. • Disconnect the negative (-) cable first. BATTERY BATTERY CUSHION BOLT...

  • Page 4

    12. Remove the filter cover as shown. 15. Remove the connectors as shown. • Cover the duct with a shop towel to prevent 2-PIN WATERPROOF debris from entering the duct. CONNECTOR (Black) FILTER COVER CLIP DUCT 6-PIN WATERPROOF CONNECTOR (Black) 16.

  • Page 5

    17. Remove the front fender as shown. 19. Remove the clip and connector as shown. • Cover the duct with a shop towel or similar to FRONT FENDER prevent debris from entering the duct. BOLT CLIP SCREW 3-PIN WATER PROOF CONNECTOR (Green) CLIP HEADLIGHT...

  • Page 6

    23. Remove the left headlight as shown. 25. Install the left LED headlight as shown. LEFT HEADLIGHT (Save) LEFT LED HEADLIGHT SPRING SPRING (Reuse) (Reuse) SCREW SCREW (Reuse) LEFT HEADLIGHT COVER LEFT HEADLIGHT COVER (Reuse) 24. Install the headlight caps on the left LED headlight LEFT LED HEADLIGHT as shown.

  • Page 7

    26. Install the assembled left headlight cover in the 29. Install the clip and connector as shown. reverse order of removal. • Repeat on the right side. FRONT FENDER SCREW (Reuse) 3-PIN WATERPROOF CONNECTOR (Black) ASSEMBLED LEFT HEADLIGHT COVER LED HEADLIGHT SUB HARNESS FRONT FENDER (Reuse)
