INSTALLATION
INSTRUCTIONS

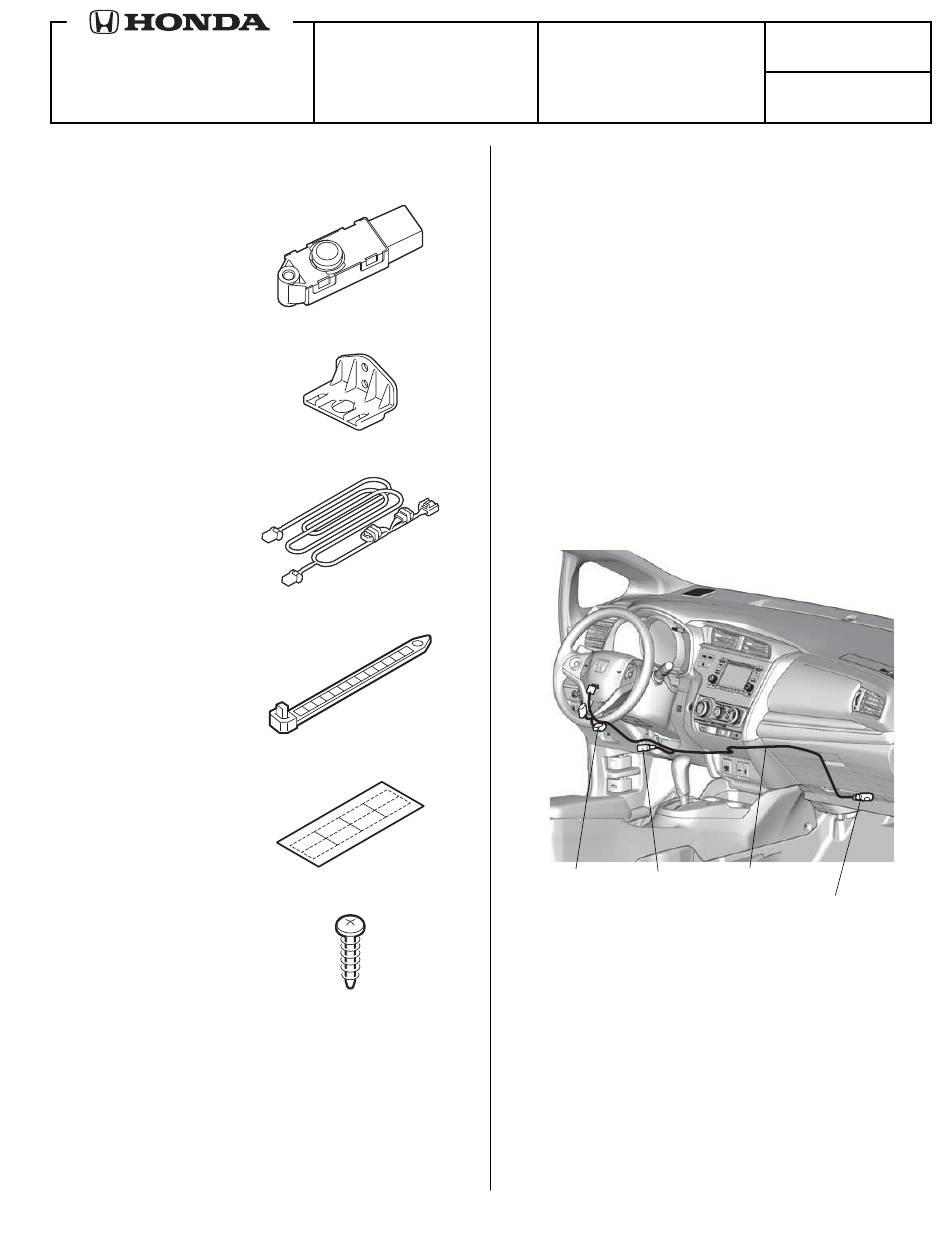

PARTS LIST
2
Ambient lights
Bracket
Ambient light harness
8
Wire ties
Fuse label
3
Self-tapping screws
© 2015 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
AMBIENT LIGHTS
P/N 08E10-T5A-100
TOOLS AND SUPPLIES REQUIRED
Phillips screwdriver
10 mm Open end wrench
Ratchet
10 mm Socket
Diagonal cutters
Isopropyl alcohol
Shop towel
Tape
The following tool is available through the Honda Tool and
Equipment Program. On the iN, click on: Service >
Service Bay > Tool and Equipment Program, then enter
the number under "Search." Or, call 888-424-6857.
• Trim Tool Set (T/N SOJATP2014)
Illustration of the Ambient Lights in the Vehicle
01671-01
Application
2016 FIT
2A FUSE
AMBIENT
AMBIENT
LIGHT
LIGHT
HARNESS
Publications No.
VERSION 1
Issue Date
MAR 2015
QC90411AJ
AMBIENT
LIGHT
1 of 7
08E10-T5A-1000-90

Advertisement

Table of Contents
loading

  Related Manuals for Honda 08E10-T5A-100

No related manuals

  Summary of Contents for Honda 08E10-T5A-100

  • Page 1 Illustration of the Ambient Lights in the Vehicle Wire ties Fuse label 2A FUSE AMBIENT AMBIENT QC90411AJ Self-tapping screws LIGHT LIGHT HARNESS AMBIENT LIGHT 1 of 7 © 2015 American Honda Motor Co., Inc. – All Rights Reserved. 01671-01 08E10-T5A-1000-90...

  • Page 2: Installation

    Pull back the door opening seal, and remove the UNDER COVER 2 PINS driver’s dashboard side lid. QC90301AJ DOOR OPENING SEAL (Pull away.) DRIVER’S 5 RETAINING QC71818AJ DASHBOARD TABS SIDE LID 2 of 7 01671-01 © 2015 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 3 (2A FOOT LIGHT (ILLUMI+)) AMBIENT LIGHT HARNESS QC90303AJ QC83101AH CENTER LOWER CENTER COVER Attach the fuse label to the ambient light harness CONSOLE fuse case. 3 of 7 © 2015 American Honda Motor Co., Inc. – All Rights Reserved. 01671-01...
  • Page 4 BRACKET SELF-TAPPING DRIVER’S SCREW DASHBOARD LOWER COVER VEHICLE QC90305AJ GREEN QC90402AJ CLIP TAPE WIRE AMBIENT LIGHT VEHICLE HARNESS HARNESS 4 of 7 01671-01 © 2015 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 5 17. Secure the ambient light harness to the vehicle harness with one wire tie. WIRE TIE AMBIENT QC90404AJ AMBIENT LIGHT LIGHT HARNESS 4-PIN CONNECTOR VEHICLE QC90406AJ AMBIENT LIGHT HARNESS HARNESS 5 of 7 © 2015 American Honda Motor Co., Inc. – All Rights Reserved. 01671-01...
  • Page 6 19. Route the ambient light harness as shown. AMBIENT PASSENGER’S LIGHT UNDER COVER AMBIENT LIGHT QC90410AJ QC90408AJ AMBIENT LIGHT HARNESS 4-PIN HARNESS CONNECTOR 6 of 7 01671-01 © 2015 American Honda Motor Co., Inc. – All Rights Reserved.

  • Page 7: How To Operate

    • If the ambient lights do not come on, check the fuse and all the connectors. LIGHT SWITCH QC92501AJ 7 of 7 © 2015 American Honda Motor Co., Inc. – All Rights Reserved. 01671-01...
