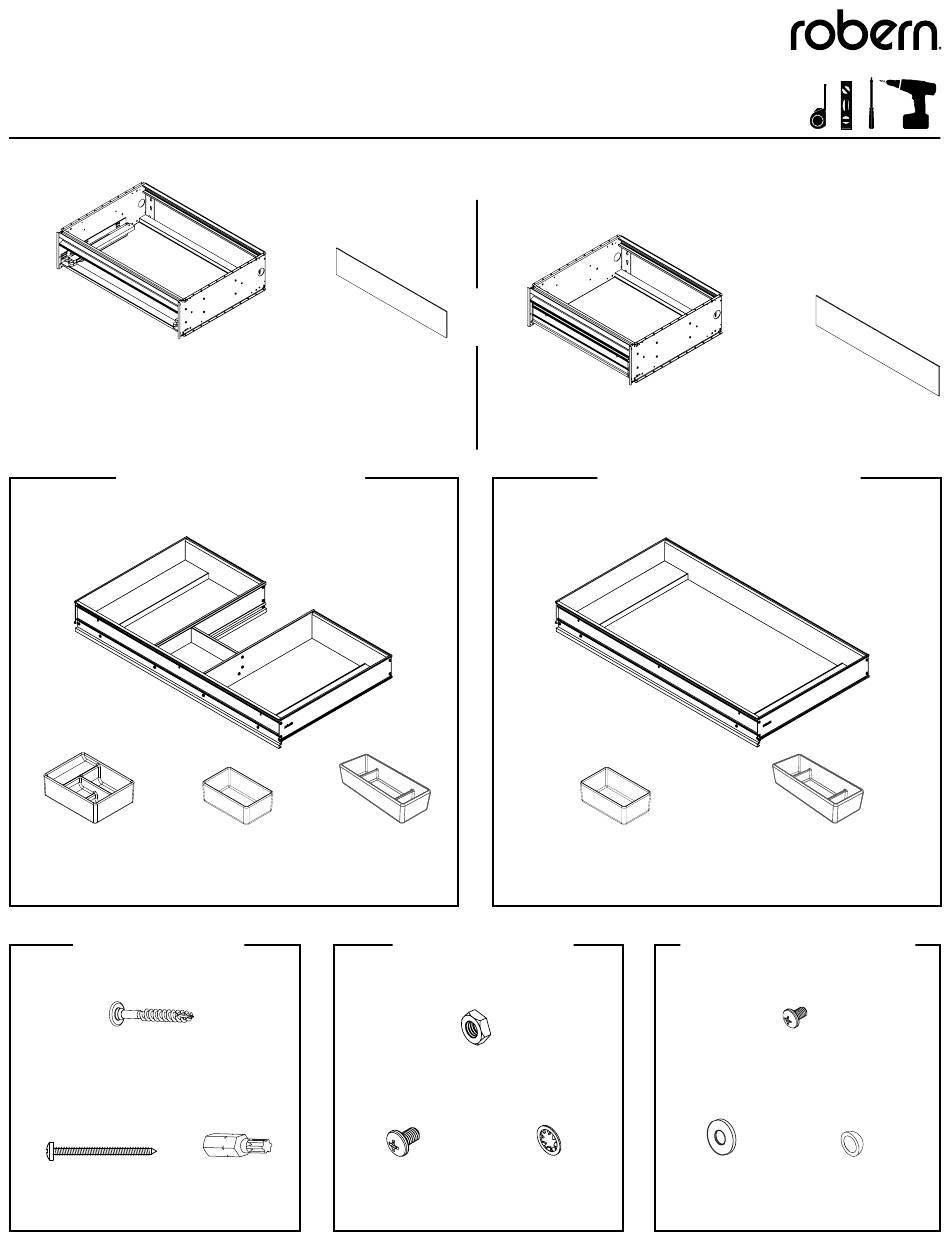

Parts / Pièce / Partes
(1) 12", 24", 30", or 36" Cartesian frame
30" shown here
(1) 304mm, 610mm, 762mm, or 914mm Repère Cartesian
762mm présentés ici
(1) 304mm, 610mm, 762mm, or 914mm Marco Cartesian
762mm muestran aquí
24", 30", or 36" Plumbing Drawer
610mm, 762mm, or 914mm Plomberie tiroir
610mm, 762mm, or 914mm Fontanería Cajón
[202-1356]
(1) Glass Center Bin (2) Medium Glass Bin
(1) Bac De Verre Central (2) Support Verre Bin
(1) Bandeja Central Glass (2) Medio de Cristal Bin
[216-1073]
Mounting Hardware Bag
Montage sac de quincaillerie
De Accesorios montaje bolsa
[203-1256]
(4) 5/16" x 2-1/2"
Structural Bolt
(4) Boulon
(4) Perno estructural
[SS674]
(5) #10 x 2" Screw
(5) 51mm hélice
(5) 51mm tornillo
209-1231-C-Cartesian H1
(1) Drawer front
(1) face de tiroir
(1) frente de cajón
[202-1124] [202-1123]
(2) Large Glass Bin
(2) Grand verre BIN
(2) Gran Vidrio BIN
[203-1270] [SS268]
T-30 Driver (4) 10-32 Screw
Goupille T-30
Llave T-30 (4) tornillo
800.877.2376
or
ou
o
Tip Out Drawer and frame
(1) 610mm, 762mm, or 914mm Astuce le tiroir et le cadre
(1) 610mm, 762mm, or 914mm Verter cajón y el marco
(2) Medium Glass Bin
(2) Support Verre Bin
(2) Medio de Cristal Bin
[216-1145]
Stacking Hardware Bag
Empilant les sacs de matériel
Apilamiento bolsa de hardware
[203-1317]
(4) 10-32 Nut
(4) écrou
(4) tuerca
[203-1390]
(4) #10 Washer
(4) Vis (4) rondelle
(4) arandela
www.robern.com
Plumbing and full drawers are not
available with Tip out drawer
Plomberie et pleins tiroirs sont pas disponibles
Fontanería y completos cajones no están
disponibles con punta a cabo cajón
(1) 24", 30", or 36"
12", 24", 30", or 36" Full Drawer
304mm, 610mm, 762mm, or 914mm Full tiroir
304mm, 610mm, 762mm, or 914mm cajón lleno
[202-1124]
(2) Large Glass Bin
Drawer front Hardware Bag
Sac de quincaillerie pour façade du tiroir
cajón bolsa bccesorios frontal
[203-1198]
(3) Washer
(3) rondelle
(3) arandela
rev. 04/28/16 © 2016 Robern, Inc.
avec le tiroir Astuce
(1) Drawer front
(1) face de tiroir
(1) frente de cajón
[202-1123]
(2) Grand verre BIN
(2) Gran Vidrio BIN
[216-1147]
[203-1382]
(3) Screw
(3) Vis
(3) tornillo
[SS348]
(3) Screw Cap
(3) Bouchon de vis
(3) Tapa a rosca
