User Manual

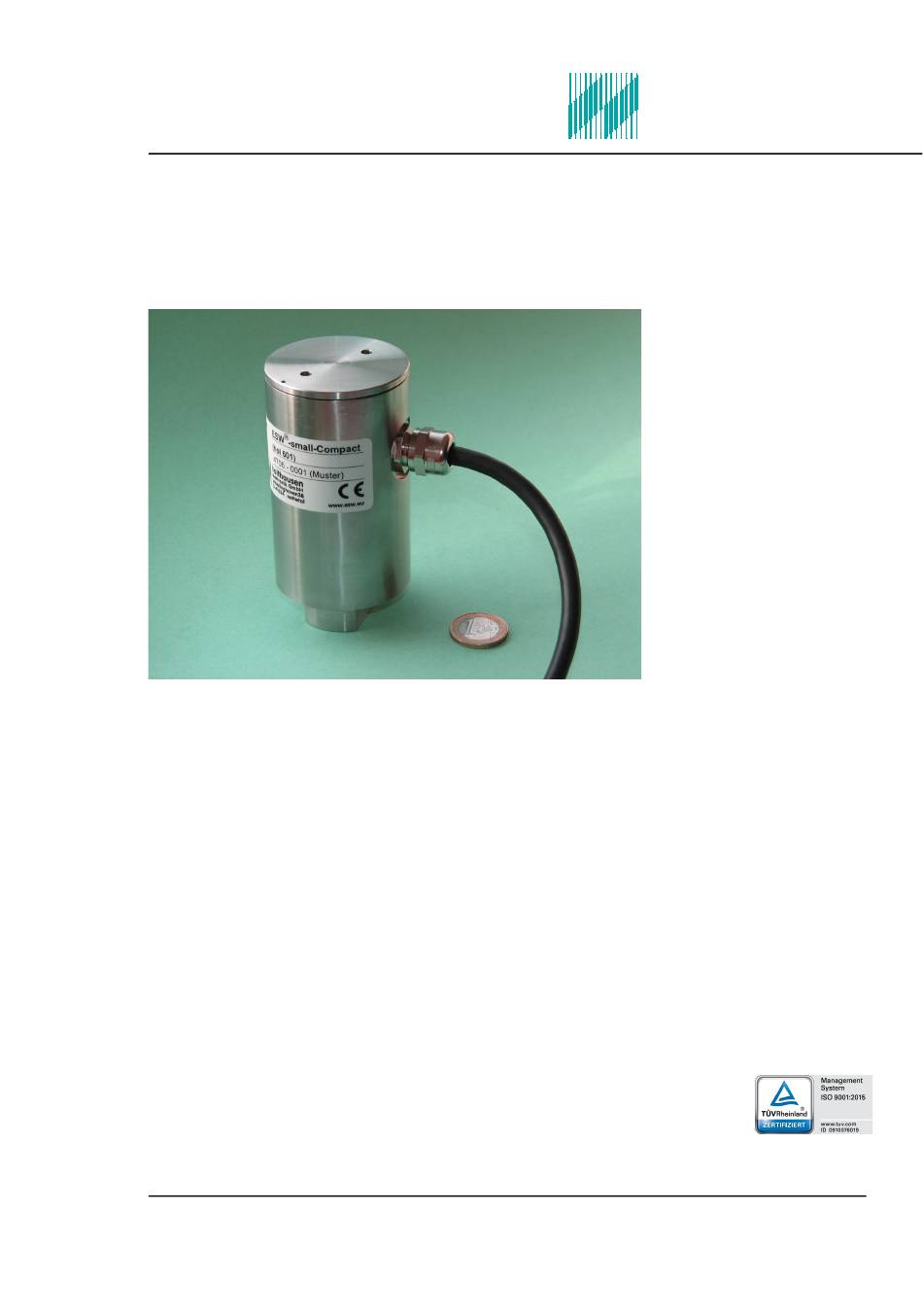

Picture shows Aluminium-case without ground on earth terminal
Electronic Vibration Monitoring Unit
ESW
®
-small-Compact (hol601)
date: 12 January 2018
technical modification possible
holthausen elektronik GmbH is certified according to DIN EN ISO 9001:2015.
holthausen elektronik GmbH
Wevelinghoven 38
41334 Nettetal
(Translation of the original instructions)
phone: +49 (0) 21 53 - 40 08
fax: +49 (0) 21 53 - 89 99 4
holthausen
elektronik GmbH
info@holthausen-elektronik.de
www.holthausen-elektronik.de
Advertisement
Table of Contents
Summary of Contents for holthausen elektronik ESW-small-Compact
- Page 1 Electronic Vibration Monitoring Unit ® -small-Compact (hol601) date: 12 January 2018 technical modification possible holthausen elektronik GmbH is certified according to DIN EN ISO 9001:2015. holthausen elektronik GmbH phone: +49 (0) 21 53 - 40 08 info@holthausen-elektronik.de Wevelinghoven 38 fax: +49 (0) 21 53 - 89 99 4 www.holthausen-elektronik.de...
-
Page 2: Table Of Contents
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact Table of Contents 1. Generally basical safety-indications......page 4 2. Packing and the transport..........page 4 3. Application..............page 5 4. Measurement principle..........page 5 5. Grounding concept............page 6 6. Mounting of the vibration control unit......page 7 7. - Page 3 The device is solely intended for the usage as described below. It is particularly not intended for the direct or indirect protection of persons. holthausen elektronik GmbH assumes no liability whatsoever as regards suitability for some specific purpose. If any question should remain open, please never hesitate to contact us.
-
Page 4: Generally Basical Safety-Indications
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 1. Generally basical safety-indications Don’t use this device as the only invigilator, if a malfunctioning of ESW ® -small-Compact could lead to damages on goods or Persons. To obtain the desired result be sure, that the device with its technical data fits to the bulk of the object you want to supervise. -
Page 5: Application
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 3. Application The ESW ® -small-Compact unit will be installed on machines like ventilators, blasts, separators or decanters in order to protect these machines in the application against inadmissible mechanical vibration. The unit monitor continuously the intensity of vibration and warn reliably during exceeding of, inside the unit, adjusted limit values. -
Page 6: Grounding Concept
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 5. Grounding concept main control box with power supply optional vibration connection box control unit shield shield signal ground signal ground main control vibration control unit ground connection box ground box ground local local local... -
Page 7: Mounting Of The Vibration Control Unit
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 6. Mounting of the vibration control unit - Whole mounting-, connecting- and adjustment-work should be done from qualified personal only! - Protect the ESW ® -small-Compact definitely against drop, stroke and other mechanical shock! - The case of the unit must be connected over the attachment or the ground-on-earth- Terminal with the potential compensation of the monitored machine. -
Page 8: Opening And Closing Of The Vibration Control Unit
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 7. Opening and closing of the vibration control unit The user must switch off the power supply, before opening the measurement unit. To open the unit the user needs a 0,9mm type of wrench “inbus - key“ and a forehead key with two- bore nut, with size of 4mm. -
Page 9: Display- And Operation- Elements
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 9. Display- and operation- elements The display and operating elements will be accessible after unscrewing the cover of the ® -small-Compact. Display elements LED1 yellow flashes Limit value G1 exceeded LED3 or adjust Limit value K1 LED1 LED2 yellow on... -
Page 10: Measurement Range Switching
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact Setting instructions The following points apply for devices with optional “self-test on starting”: After applying the operating voltage the device starts a complete function test. The green LED3 flashes during the function test (see 18.3). After the function test the relays switches - the switching contacts are closed thereafter. -
Page 11: Analog Output Settings
holthausen Electronic Vibration monitoring Unit elektronik GmbH -small-Compact ® 13. Analog output settings The 0 to 20mA output can be used for displaying of several values on the analog output. With the standard setting (S2=OFF) the output current corresponds to the measured signal. For example, an analog current value of 20mA corresponds to a measured vibration velocity that has reached 100% of the measuring range set. -
Page 12: Example To Adjust The Limit Value
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 15. Example to adjust the limit value Analog output 0 to 20mA (10% to 100% = 2mA to 20mA, mean 0.2mA per %) Example: Adjust the limit value G1 to 22.5%, and the limit value G2 to 35%: Measured range 20mm/s SET-Mode active Balancing of the limit value G1... -
Page 13: Automatic Self-Test In The Background
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 17.1 Automatic self-test in the background If an error occurs, the green LED flashes one to three times depending on the type of the error, the pre and main contact trips and a fault current of 22mA can be measured at the analog output. -
Page 14: Self-Test On Starting (Optional)
holthausen Electronic Vibration monitoring Unit elektronik GmbH -small-Compact ® After the expiry of response delay 2 for threshold value 2, relay 2 responds and the red LED lights for a time period equal to release delay 2. Then the relay releases again and the LED goes out. -
Page 15: Housing Size
holthausen Electronic Vibration monitoring Unit elektronik GmbH ® -small-Compact 18. Housing size (in mm), with optional ground on earth terminal Case material: Aluminium-, V2A- or V4A picture 1 The unit will be mounted via one threaded pin AM10*25 per DIN 913. -
Page 16: Cable Connection Draft
The outlined contacts of the alarm-relays are in position: without supply voltage. Under normal working conditions are the closer- and middle-contacts connected. case The analog signal is measured between analog output (grey) and earth (blue). is a registered trademark of holthausen elektronik GmbH, Wevelinghoven 38, 41334 Nettetal ®...
