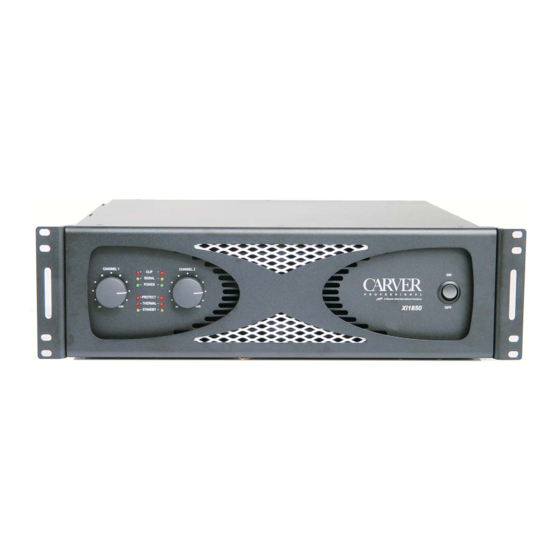

- Page 1 All manuals and user guides at all-guides.com Xi1850 / Xi2600 User Manual A Product of Phoenix Gold International, Inc. 9300 North decatur Street Portland, Oregon 97203 Tel: 503.286.9300 Fax: 503.978.3302 www.carverpro.com...
-
Page 2: Safety Instructions
IMPORTANT receptacles, and the point where they exit from the apparatus. Xi1850 and Xi2600 amplifiers require Class 2 output wiring. 11) Only use attachments/accessories specified by the manufacturer. 12) Unplug this apparatus during lightning storms or when unused for long periods of time. -
Page 3: Table Of Contents
Finally, take a moment to fill out the Warranty Registration Card packed with the amplifier and return Output Wiring it to Carver Professional. This will allow us to keep you informed about new products as they become Multi-Way Binding Posts available. -
Page 4: Power Specifications
STANDBY OWER PECIFICATIONS Xi1850 Xi2600 • 370W per channel into 8 ohm stereo loads, 20 Hz to 20 kHz, with less than 0.5% THD+N • 500W per channel into 8 ohm stereo loads, 20 Hz to 20 kHz, with less than 0.5% THD+N •... -
Page 5: Front Panel Controls & Features
All manuals and user guides at all-guides.com Front Panel Controls and Features CHANNEL 1 CHANNEL 2 CLIP SIGNAL POWER PROTECT Xi2600 THERMAL STANDBY 1 Channel 1 Level Control is a 41 detent potentiometer allowing adjustment 3 Channel 2 Level Control is a 41 detent potentiometer allowing adjustment from from infinite attenuation to 0dB attenuation in 40 steps. -
Page 6: Rear Panel Controls & Features
All manuals and user guides at all-guides.com Rear Panel Controls and Features 9300 North Decatur St. Portland, OR 97203 WARNING AVERTISSEMENT RISK OF HAZARDOUS ENERGIE ELECTRIQUE DANGEREUSE. ENERGY! MAKE PROPER CH 1 VOIR LA NOTICE SPEAKER CONNECTIONS. LIMIT DE FONCTIONNEMENT. CONSU T USER MANUA LPF 120 LP ON... -
Page 7: Installation
Mechanical Considerations XLR: Use a male XLR connector. Pin 2 carries The Xi1850 and Xi2600 require three rack space units (5.25”) and a depth of 16” inside the rack, the”+” (high, non-inverted) side of the signal, including the rear supports. Secure the unit mechanically using four screws with washers to Pin 3 carries the “-”... -
Page 8: Output Wiring
All manuals and user guides at all-guides.com Output Wiring DIP Switches: Use heavy gauge cable for speaker connections. The greater the distance between the amplifier The Xi Amplifiers have an eight position and the speakers, the larger the diameter the cable should be to minimize power losses across DIP switch located at the input of each channel the cable and improve the damping of the speaker. -
Page 9: Volt Direct Drive
70-volt distribution systems without using a step-up transformer at the amplifier. In this configuration, the Xi1850 delivers up to 370 watts per channel and the Xi 2600 500 watts per channel to the 70V system, depending on the impedance of the total system. As with all 70V systems, step-down transformers are still required at each loudspeaker. -
Page 10: Warranty Information
If your Carver Professional Carver Professional reserves the right to improve its products at any time. Therefore, specifications are subject to change product proves defective in material or workmanship, the liability of Carver Professional shall without notice. -
Page 11: In Case Of Difficulty
If you are having trouble, or suspect a problem with your Xi Series amplifier, try some simple troubleshooting before contacting an Authorized Carver Professional Dealer, Authorized Carver Professional Service Center or Carver Professional Technical Service. Below are listed some general problems and items that should be checked in an attempt to resolve the difficulty. - Page 12 All manuals and user guides at all-guides.com Carver Professional 9300 North Decatur Street Portland, Oregon 97203 Phone 503.286.9300 Fax 503.978.3302 Email: support@carverpro.com Web: www.carverpro.com 8100.0305A...
