Sony VAIO VGP-WMS30 Operating Instructions

Wireless Laser Mouse
VGP-WMS30
Operating Instructions
Mode d'emploi
Instrucciones de funcionamiento
4-178-529-11(1) © 2009 Sony Corporation Printed in Japan
English
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or
moisture.
Caution
Do not look directly into the lens. The laser light may cause eye injury.
To prevent battery fluid leaks and damage, observe the following precautions:
 Insert the battery with the correct +/- orientation.
 Do not charge a dry cell battery.
 If the mouse has not been used for a long time, remove the battery.
 If a battery fluid leak occurs, carefully wipe the battery compartment, and
insert a new battery.
 To prevent accidental operation, be careful not to press any buttons when
replacing the battery.
If any solid object or liquid falls onto the mouse, set the power to off and have
it checked by qualified personnel before continuing its use.
Do not place the mouse in a location where it is:
 On an unstable surface
 In very humid areas or where there is no ventilation
 Subject to excessive dust
 Subject to direct sunlight or extreme heat
 Extremely cold
If the mouse is brought directly from a cold to a warm location or is placed in a
very damp room, moisture may condense on the inside of the mouse. If this
occurs, the mouse may not work properly.
In this case, wait about 30 minutes for the moisture to evaporate. If the mouse
does not work properly after one hour, consult your nearest Sony dealer.
Keep away the wireless receiver and battery from children.
Owner's Record
The model number and the serial number are located inside the battery
compartment of the mouse. Record the serial number in the space provided
below. Refer to this number whenever you call your Sony dealer regarding this
product.
Model No. VGP-WMS30, VGP-WRC6
Serial No. ____________________
For customers in the U.S.A.
This device contains the following wireless devices;
Wireless mouse (VGP-WMS30), Wireless receiver (VGP-WRC6)
The following FCC statement applies only to the version of this model
manufactured for sale in the USA. Other versions may not comply with FCC
technical regulations.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
For questions regarding your product or for the Sony Service Center nearest
you, call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.
The number below is for FCC related matters only.
Declaration of Conformity
Trade Name: SONY
Model No.: VGP-WRC6
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
For customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation of the
device.
For customers in the U.S.A. and Canada
This wireless mouse and wireless receiver comply with FCC/IC radiation
exposure limits set forth for uncontrolled equipment and meet the FCC radio
frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102
of the IC radio frequency (RF) Exposure rules. This wireless mouse and
wireless receiver have very low levels of RF energy that it deemed to comply
with maximum permissive exposure evaluation (MPE). But it is desirable that
they should be installed and operated with at least 20cm and more between the
radiators and person's body (excluding extremities: hands, wrists, feet and
ankles).
This wireless mouse and wireless receiver and their antennas must not be co-
located or operating with any other antenna or transmitter except Grant
condition.
This wireless mouse is classified as a CLASS 1 LASER PRODUCT and
complies with the Laser Products Safety Standard IEC 60825-1(2007)/EN
60825-1(2007).
Caution - Repair and maintenance of this wireless mouse should be made only
by Sony authorized technicians. Improper repairs and use can create safety
hazards.
Caution - Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
You can find the following sticker on the bottom of the wireless mouse.
For customers in other countries and regions
This wireless mouse is classified as a CLASS 1 LASER PRODUCT and
complies with the Laser Products Safety Standard IEC 60825-1(2007)/EN
60825-1(2007).
Caution - Repair and maintenance of this wireless mouse should be made only
by Sony authorized technicians. Improper repairs and use can create safety
hazards.
Caution - Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
You can find the following sticker on the bottom of the wireless mouse.
For customers in Singapore
http://www.sony.net/
Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free
vegetable oil based ink.
Impreso en papel 70% reciclado (o más) con tinta a base de aceites vegetales sin contenido
de compuestos orgánicos volátiles (VOC).
VGP-WMS30_U 4-178-529-11(1)
00000/POSTEL/2010
2034
For Republic of Indonesia
Trademarks and notice
VAIO is a trademark of Sony Corporation.
Microsoft, Windows, and Windows Vista are registered trademarks of
Microsoft Corporation in the United States and/or other countries.
IBM and PC/AT are registered trademarks of International Business Machines
Corporation.
In this manual, Microsoft® Windows® XP Home Edition and Microsoft®
Windows® XP Professional are referred to as Windows XP.
In this manual, Microsoft® Windows Vista® Home Basic, Microsoft® Windows
Vista® Home Premium, Microsoft® Windows Vista® Business and Microsoft®
Windows Vista® Ultimate are referred to as Windows Vista.
In this manual, Microsoft® Windows® 7 Ultimate, Microsoft® Windows® 7
Professional, Microsoft® Windows® 7 Home Premium, Microsoft® Windows® 7
Home Basic or Microsoft® Windows® 7 Starter are referred to as Windows 7.
All other names of systems, products, and services are trademarks of their
respective owners. In this manual, the ™ or ® marks are not specified.
Before Use
The Wireless Mouse is designed for use with IBM PC/AT compatible
computers with USB ports and pre-installed with the Windows 7, Windows
Vista or Windows XP (SP2 and after) operating system (as of January 2010).
When not in use, the receiver can be stored directly in the storage to make it
easier to carry around.
Notes
 Operation is not guaranteed for all computers meeting the above system requirements.

Operation is not guaranteed for home-built computers, white box PCs, and computers
with OS upgrades and multi-boot systems.
Names of Parts

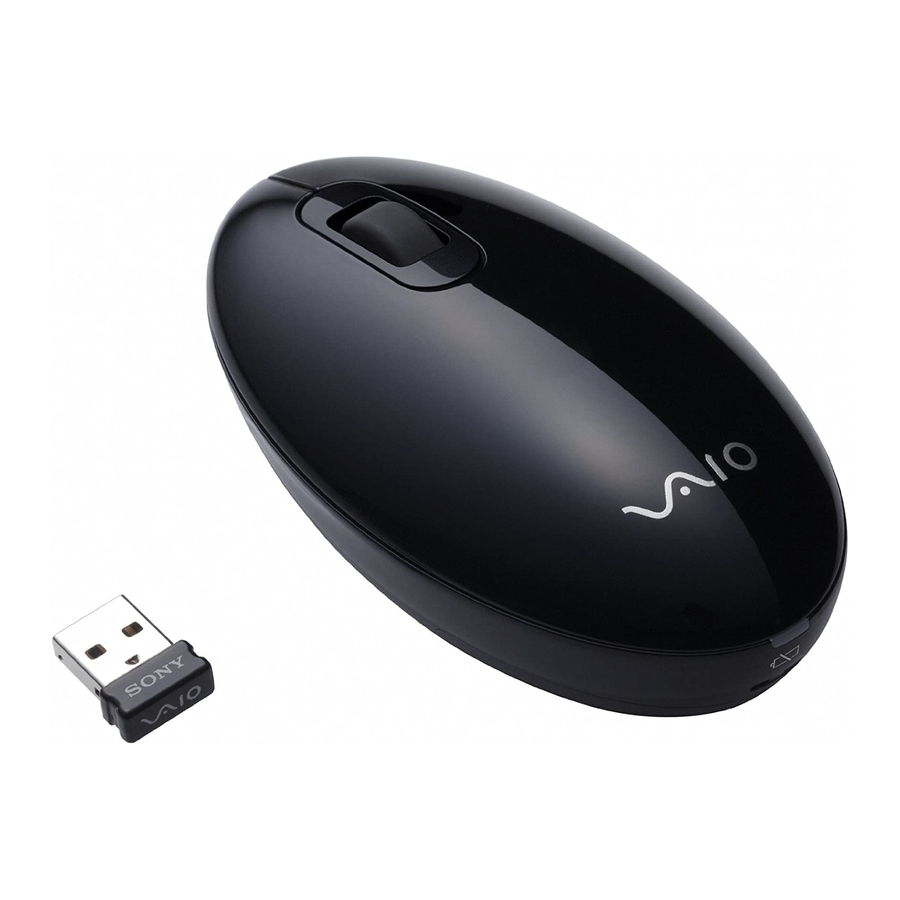

Wireless mouse
Right button
Lens
Wheel button
Power switch
Left button Status light
Wireless receiver
USB Plug
Preparations
Inserting the battery into the mouse
1
Set the power switch located on the bottom of the mouse to
OFF.
2
Open the battery compartment cover and insert the supplied
LR6 (size AA) battery with the correct + - orientation.
3
Close the battery compartment cover.
Replacing the battery
When cursor movement becomes sluggish and the communication distance
between the mouse and your personal computer decreases, check the status
light on the mouse. The status light lashing orange indicates that the battery life
is running low. Replace the battery when this occurs.
When not using the mouse, set the power switch to OFF. This will make the
battery last longer.
Connecting the mouse with the receiver
Note
Use the mouse in combination with the supplied receiver. The mouse cannot be
connected to any other kind of receivers.
1
Insert the receiver into the computer's USB port.
When connecting to the USB port, please connect to the USB port with
"  " mark.
2
Set the power switch of the mouse to ON.
The status light lights up green (for approx. 10 seconds).
3
Move the mouse. If the pointer displayed on your screen moves
appropriately, the connection is complete.
To stop using the mouse
Disconnect the receiver from the USB port of the computer.
You can disconnect and connect the receiver without turning the computer off.
 hint
When you carry the personal computer, disconnect it from the receiver.
To store the receiver in the mouse
The receiver can be stored in the battery compartment cover of the mouse.
Using the Wireless Mouse
When you move the mouse, the pointer displayed on your screen moves in the
same direction.
Note
Due to the characteristics of the laser sensor, the mouse may not work properly on
transparent surfaces or on a mouse pad that has a clear surface. Avoid using on such
materials, or use a commercially-available mouse pad that is compatible with a laser
sensor mouse.
Operating distance of the mouse
The mouse can normally be operated within about a 10 m (32 ft.) radius
around the receiver. Depending on the usage environment, sometimes the
usable distance may be notably shorter, preventing normal operation.
In such a case, take the following measures:
 Use the mouse as far away from other wireless devices as possible.
 Use the mouse closer to the receiver.
 Use a mouse pad.
Basic operations
Wheel button
Rotate the wheel to scroll up and down.
Right button
Press to perform specific shortcut functions.
Left button
Press to perform specific mouse functions.
 hint
If necessary, you can adjust the mouse pointer speed under "Mouse Properties. "
To display "Mouse Properties" with the Windows 7 operating system, click "Hardware
and sound, " and then "Mouse" in the "Control Panel. "
To display "Mouse Properties" with Windows Vista and Windows XP operating systems,
click "Mouse" in the "Control Panel. " (If you use Windows XP operating system, switch to
Classic View.)
Cleaning the outside of the mouse
When you clean the mouse, make sure to remove the battery.
Clean the mouse with a soft, dry cloth or a soft cloth lightly moistened with a
mild detergent solution. Do not use any type of abrasive pad, scouring powder,
or solvent such as alcohol or benzine.

Specifications

Wireless mouse
Communication method Digital wireless transmission *
Position tracking method Laser sensor type (Class 1 Laser)
Sensor resolution 300 dot/cm (800 dpi)
Communication distance 10 m (32 ft.) max. line of sight **
Power requirements 1.5 V DC (LR6 [size AA] battery)
Battery life Approx. 4 months (alkaline battery) ***
Dimensions Approx. 61.0 (w) × 36.1 (h) × 115.1 (d) mm
(2.4 (w) × 1.5 (h) × 4.6 (d) inches)
Mass Approx. 100 g (3.6 oz.) (including battery)
Wireless receiver
Interface USB (Also usable with a USB 2.0 port)
Frequency band 2.4 GHz
Dimensions Approx. 14.5 (w) × 6.2 (h) × 18.7 (d) mm
(0.58 (w) × 0.25 (h) × 0.74 (d) inches)
Mass Approx. 2 g (0.1 oz.)
Miscellaneous
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
(temperature gradient less than 10 °C (18 °F)/hour)
Operating humidity 20% to 80% (not condensed), provided that humidity
is less than 65% at 35 °C (95 °F)
(hygrometer reading of less than 29 °C (84 °F))
Storage temperature -20 °C to +60 °C (-4 °F to +140 °F)
(temperature gradient less than 10 °C (18 °F)/hour)
Storage humidity 10% to 90% (not condensed), provided that humidity
is less than 20% at 60 °C (140 °F)
(hygrometer reading of less than 35 °C (95 °F)
Accessories Wireless receiver (VGP-WRC6) (1)
LR6 (size AA) Alkaline battery (1)
Operating Instructions (this document) (1)
Warranty Card (1)
* This unit does not support communication with wireless LAN and
Bluetooth®.
** The communication range varies, due to walls or other obstacles
between devices, the materials used in the walls, environmental
conditions such as radio frequency interference, and the software
program used.
*** This estimate is based on five hours of use per day, five days per week.
These could be different depending on the usage environment.
Design and specifications are subject to change without notice.

Troubleshooting

If you are not able to locate a solution in this section, contact a Sony authorized
dealer.
Nothing happens when I press a mouse button.
 The receiver is not connected properly to the USB port.
 Close all programs, and then reconnect the receiver to your computer.
 The operating system is not compatible.
 Use a supported operating system.
 The USB port is not available.
 Check the "System Properties" of your personal computer.
 The mouse battery is drained.
 If the status lamp does not light when the mouse is turned on, replace the
battery. For details, see "Preparations".
 The mouse and receiver are not communicating.
 Perform steps of "Enabling communication between the mouse and
receiver" to ensure that proper communication is possible.
 In some operating environments, the usable distance may be notably
shorter, preventing normal operation. In such a case, use the mouse farther
away from other electronic devices such as other computers and displays.
 If the mouse is too far from the receiver, communication is not possible.
Bring the mouse and receiver closer together.
 The mouse may have difficulty communicating in a 2.4 GHz wireless LAN
environment.
 It is best to use the mouse in a location with low interference from wireless
devices.
The scrolling features do not work.
 The operating system is not compatible.
 Use a supported operating system.
 The program you are using is not compatible with the scrolling features.
 The scrolling features only work with programs that use a scroll function.
 Some programs do not support the scrolling features.
 After the receiver was installed, the computer was returned to normal mode from
power-saving mode.
 Disconnect the receiver from the USB port, wait a few seconds, and then
reconnect it.
The pointer does not move when I move the mouse.
 Processing performed by Windows or other software may temporarily
disable the mouse. Wait a few moments for the processing to finish before
using the mouse.
 You may find some useful solutions in your computer's operating
instructions. Refer to the manuals provided with your computer.
 Also see "Nothing happens when I press a mouse button. "
The mouse pointer does not move smoothly across the screen.
 Due to the characteristics of the laser sensor, the mouse may not work properly
on transparent surfaces, or on a mouse pad that has a clear surface. Avoid using
on such materials. A commercially-available mouse pad that is compatible with a
laser sensor mouse is recommended.
I cannot make the computer exit power-saving mode with the
mouse, or it takes a long time.
 Press any key or the power button on the keyboard.
When I start the computer an error message appears, saying that
the mouse is not connected.
 Select the check box that offers not to display this message again, and then click
"OK".
The mouse does not move smoothly after returning the computer
from the power-saving mode.
 Disconnect the receiver from the USB port, wait a few seconds, and then
reconnect it.
After connecting the receiver, it takes a while before the mouse can
be used.
 If the receiver is connected while the computer is processing commands from
Windows, other software, or another USB device, it may take a while for the
computer to detect the receiver.
VGP-WMS30_U 4-178-529-11(1)
