Sony VAIO VGP-BMS21 - Bluetooth Laser Mouse Manual

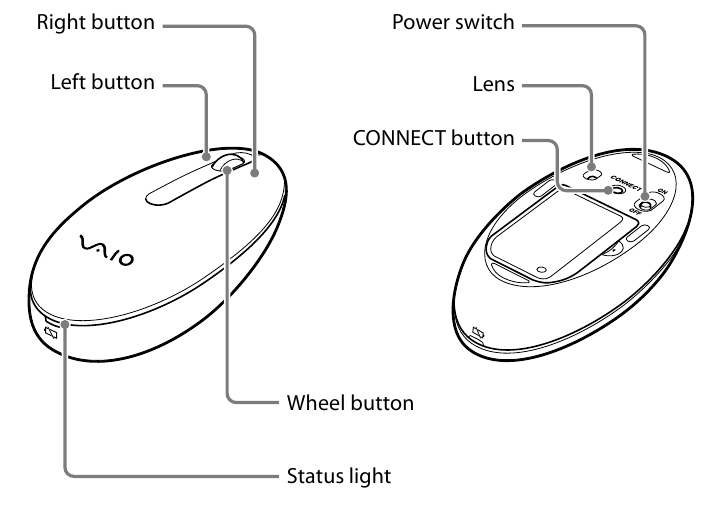

Part names

This product is a laser mouse equipped with BLUETOOTH technology.

Inserting batteries into the mouse

1. Turn off the mouse.
2. Open the battery compartment cover. Insert the two supplied batteries using the correct +/– orientation.

3. Close the battery compartment cover.

Replacing the batteries
If cursor movement becomes sluggish, or the communication distance between the mouse and your personal computer decreases, check the status light on the mouse. The status light flashing orange indicates that the battery life is running low. Replace the batteries.
When not using the mouse, set the power to off. This will extend battery life.

Enabling communication between the mouse and your personal computer

1. Click (Start), All Programs, and VAIO Smart Network or click (the VAIO Smart Network icon) in the desktop notification area.
2. Make sure that the switch next to BLUETOOTH is toggled to On in the VAIO Smart Network window.
   If it is set to Off, click it to toggle to On.
   Hint
   Make sure that the WIRELESS indicator light on your personal computer is on.
3. Click (Start), then click "Devices and Printers."
4. Turn on the mouse.
5. Press the CONNECT button on the bottom of the mouse.
   The status light flashes green.
6. Click "Add a device" in the "Devices and Printers" window.
7. In the device list, select "VGP-BMS21," and click "Next."
   Hint
   If the "Select a pairing option" window is displayed, select "Pair without using a code," and click "Next."
8. Click "Close" in the "Add a device" window.
9. Move the mouse. If the pointer displayed on your screen moves appropriately, the connection is complete.

Disconnecting
Turn off the mouse.

Reconnection
Turn on the mouse, then reconnect.

Note It may take time to reconnect after turning off the mouse.

Notes on use

• Due to the characteristics of the laser sensor, the mouse may not work properly on transparent surfaces or on a mouse pad that has a clear surface. Avoid using on such materials, or use a commercially available mouse pad that is compatible with a laser sensor mouse.
• Although the polytetrafluoroethylene (PTFE) fluorocarbon polymer in the sole is a low-friction, non-stick material, the level of friction may vary depending on the material of the desktop and mouse pad.

Hint
If necessary, you can adjust the mouse pointer speed under "Mouse Properties."
To display "Mouse Properties" with the Windows 7 operating system, click "Hardware and sound," and then "Mouse" in the "Control Panel."

Wireless communications

• The 2.4 GHz band used by BLUETOOTH devices and wireless LAN devices is also used by various other devices. BLUETOOTH devices and wireless LAN devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous use of the BLUETOOTH devices and wireless LAN devices, however, may cause radio interference and result in reduced communication speeds and distance than the standard values.
• The data transfer rate will vary depending on distance and obstacles between devices, device configuration, radio interference, operating system, software application, and so on. In some cases, communication may be interrupted.
• Communication range will vary according to whether walls or other obstacles are located between devices, the material used in walls, the presence of radio frequency interference and other environmental conditions, and the type of software being used.
• If BLUETOOTH functionality and wireless LAN functionality are used at the same time on the same personal computer, communication speed may be reduced due to electromagnetic interference, and other unwanted effects may occur.

Maintenance
When you clean the mouse, make sure to remove the batteries.
Clean the outside of the mouse with a soft, dry cloth. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

Specifications

* The communication range varies, due to walls or other obstacles between devices, the materials used in the walls, environmental conditions such as radio frequency interference, and the software program used.
** This estimate is based on five hours of use per day, five days per week. These could be different depending on the usage environment.
Design and specifications are subject to change without notice.

Troubleshooting

If you are not able to locate a solution in this section, contact a Sony authorized dealer.

The laser does not light up when I turn on the mouse.
The laser light from the lens is invisible. This is not a malfunction.

The pointer/cursor does not move when I move the mouse.
The mouse is not turned on.

• If the mouse is turned off, the mouse and your personal computer are not communicating. Turn on the mouse.
• With sufficient battery power, if you turned on the mouse, after a few seconds, the status light lights green momentarily. If not, there are no batteries in the mouse, or the batteries are exhausted. Insert new batteries. For more information, see "Inserting batteries into the mouse."

The mouse and the personal computer are not communicating.
For more information, see "Cannot connect to the personal computer."
The mouse is being used on an unsuitable surface.
Due to the characteristics of the laser sensor, the mouse may not work properly on transparent surfaces. Avoid using on such surfaces, or use a commercially available mouse pad that is compatible with a laser sensor mouse.
The CONNECT button is pressed while operating the mouse.
If the CONNECT button is pressed while operating the mouse, the mouse goes into a standby mode for about 3 minutes and cannot be operated during this time. If you press the CONNECT button, turn off the mouse once before starting to work with the mouse.
The mouse may have difficulty communicating in an environment with 2.4 GHz wireless LAN or other BLUETOOTH communication.

• It is best to use the mouse in a location with low interference from wireless devices.
• Processing performed by Windows or other software may temporarily disable the mouse. Wait a few moments for the processing to finish before using the mouse.
• You may find some useful solutions in your personal computer's operating instructions. Refer to the manuals provided with your personal computer.

Cannot connect to the personal computer

The mouse is not turned on.
For more information, see "The pointer/cursor does not move when I move the mouse."
Make sure that the WIRELESS indicator light on your personal computer is on. If the WIRELESS indicator light is not lit, perform step 1 and 2 of "Enabling communication between the mouse and your personal computer."
Turn off the mouse, after a few seconds, turn on the mouse to connect to the personal computer. For details on connecting, see "Enabling communication between the mouse and your personal computer."
If the mouse and the personal computer are too far apart, transmission may be affected. The maximum communication distance between the mouse and the personal computer is about 10 m (32 ft.). If used on a metal table or if obstacles are between the mouse and the personal computer, the usable distance may be less. Connect the mouse and the personal computer as close as practically possible.
Depending on usage environment, communication distance may decrease, and improper operation may result. In such a case, keep other electronic equipment away from the host field.

The scrolling features do not work

The program you are using is not compatible with the scrolling features.

When I am using the mouse, the display goes dark or the personal computer enters power saving mode.
The computer's power saving mode is ignoring mouse activity.

• Change the power management settings for the personal computer to prevent it from entering power saving mode. For details, refer to the manuals provided with your personal computer.
• Touch the touchpad or press any key on the keyboard to exit power saving mode.

The mouse pointer does not move smoothly across the screen.
The mouse may not work properly on transparent surfaces due to the characteristics of the mouse's laser sensor.
Avoid using on such materials, or use a commercially-available mouse pad that is compatible with a laser sensor mouse.
Due to the characteristics of its laser sensor, if dust attaches to the bottom of the mouse, the mouse may not work properly. In this case, remove the dust with a dry cotton swab. Wipe gently to avoid scratching the lens, which could cause a malfunction.
Your mouse may be experiencing interference from other BLUETOOTH devices that are connected to your computer.
Disconnect them all once, wait a few seconds, then connect them again.

Exiting power saving mode with the mouse is not possible.
Press any key on the keyboard.

The mouse does not move smoothly after returning from the power saving mode.
Deactivate the BLUETOOTH connection, wait a few seconds, and then reestablish connection.

I am asked to enter a key when connecting to my personal computer.
Enter "0000" as the key.
