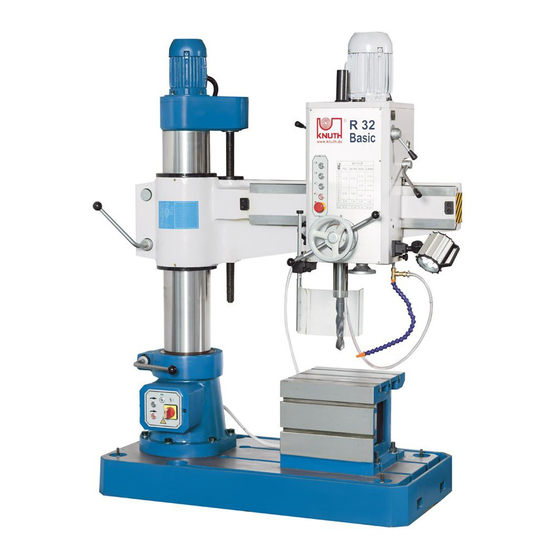

- Page 1 Machine Tools Operation Manual OPERATION MANUAL R32 Basic KNUTH Werkzeugmaschinen GmbH Schmalenbrook 14, D-24647 Wasbek, Germany Tel:+49 4321 6090 Fax:+49 4321 68900 www.knuth.de E-mail:info@knuth.de Website:...
-
Page 2: Table Of Contents
CONTENTS 1、Main application and feature......................3 2、Main parameter and dimension ......................3 3、Driving system ...........................5 4、Main structure and adjust .........................10 5、Electric system ..........................15 6、Lubricate ............................20 7、Moving and assemble of the machine ....................21 8、Operation of the machine .........................22... -
Page 3: 1、Main Application And Feature
Machine Tools OPERATING INSTRUCTIONS 1、Main application and feature 1.1 Application ： This machine is widely suitable for machinery processing. That is drilling、scrape、 ream and tapping. Under certain conditions, it also can boring hole. 1.2 Feature： 1. Appearance is bounteous. The total layout is proportional。 2 Mechanical speed change which easily operation。... - Page 4 Machine Tools OPERATING INSTRUCTIONS 2.3 Install and adjust precision Put the iron pad according to the draft. The number of vertical section...
-
Page 5: 3、Driving System
Machine Tools OPERATING INSTRUCTIONS and horizontal section can’t allowance exceed to 0.04/1000. After adjust the all parts, adjust the precision. After that, fix the iron pats and foot nut by cement, When it dry, tight the foot nut and proofread the precision at last. Base figure 3、Driving system... - Page 6 Machine Tools OPERATING INSTRUCTIONS 3.1. driving system 3.2 Driving system parts list...
- Page 7 Machine Tools OPERATING INSTRUCTIONS precisio Head Tooth Model Angle and material treatment & number direction grad hardness 40Cr 40Cr 40Cr 40Cr 40Cr 40Cr 40Cr 40Cr T235 4°05′08 right HT300 4°05′08 right T235 40Cr D0.3-461 40Cr 40Cr 40Cr 40Cr 40Cr 40Cr 3.3 Bearing...
- Page 8 Machine Tools OPERATING INSTRUCTIONS...
- Page 9 Machine Tools OPERATING INSTRUCTIONS 3.3.1 Rolling bearing diagram Quantit Item Specification Precision 6007 35×62×14 6205N 25×52×15 6305 25×62×17 6208 40×80×18 6204 20×47×14 6008 40×68×15 6203N 17×40×12 6004 20×42×12 6205 25×52×15 6203 17×40×12 51203 17×35×12 6003 17×35×10 51106 30×47×11 6006 30×55×13 16005 25×47×8 6009...
-
Page 10: 4、Main Structure And Adjust
Machine Tools OPERATING INSTRUCTIONS 4、Main structure and adjust 4.1 Spindle and feeding speed change structure... - Page 11 Machine Tools OPERATING INSTRUCTIONS 4.2 Horizontal shaft structure...
- Page 12 Machine Tools OPERATING INSTRUCTIONS 4.3 Worm shaft structure Adjust the feeding insurance clutch.Open the cover on the right of spindle head，adjust bolt 1 , enable the pressure of Spring increase or decrease , then spindle feeding resistant power to a allowed number 。...
- Page 13 Machine Tools OPERATING INSTRUCTIONS 4.4 Spindle and its balancing structure Adjust the balance of spindle:Unti-clockwise loosen the screw 1, which can increase the balancing power. Otherwise, reducethe balancing power。 4.5 Head clamping structure Adjust the head clamping power. Loosen the nut 1 and remove the part 2, which can adjust the power of head clamping.
- Page 14 Machine Tools OPERATING INSTRUCTIONS 4.6 Column arm up and down...
-
Page 15: 5、Electric System
Machine Tools OPERATING INSTRUCTIONS 4.7 Arm and clamp 5、Electric system 5.1 Brief This machine use 400V、50HZ 、3 three phase alternating current . Control circuit and illume circuit was used by control transformer which reduce the pressure , the voltage is 110V、24V fitted for all kinds of electric component , are all listed on the detailed electric component list . - Page 16 Machine Tools OPERATING INSTRUCTIONS the base ,column clamping motor installed on top of the column, other electric equipment on spindle body or arm . Because there is no junction station on top of the column , so do not always turn the arm continuously to a direction when in operation , in order twist off line Which cross the inner the column.
- Page 17 Machine Tools OPERATING INSTRUCTIONS Electric principle map Electric wiring diagram...
- Page 18 Machine Tools OPERATING INSTRUCTIONS Detailed electric parts list...
- Page 19 Machine Tools OPERATING INSTRUCTIONS Specification and Symbol Name Remarks model three phase 1.5KW，Y900L1-4，B5 motor three phase 550W，Y8014，B5 motor Cooling pump 90W，OB-25 With pump motor QF1,QF2.QF DZ47-63、IP、1A breaker ( )depend Control JBK2-100( )/110,24,6V on rating transformer voltage KM1-KM4 3TB4022， 110V， 50-60Hz contactor JRS1-09/F、...
-
Page 20: 6、Lubricate
Machine Tools OPERATING INSTRUCTIONS 6、Lubricate Lubricate part lubricating oil No Lubricate circle Remarks Spindle guide 68# machinery oil Always keep oiling Up and down 3# lubricate grease Injecting oil three gear box month one time Radial up and 68# machinery oil Injecting oil every down thread bar time... -
Page 21: 7、Moving And Assemble Of The Machine
Machine Tools OPERATING INSTRUCTIONS 7、Moving and assemble of the machine Do not make the packing case slant when moving,。 When remove the trunk ,you’d Better underlay soft thing at the place of interface between coed and machine surface,for fear that scratch the machine. -
Page 22: 8、Operation Of The Machine
Machine Tools OPERATING INSTRUCTIONS 8、Operation of the machine The name of the Part operation part General electricity switch Cooling pump switch Arm down button Arm clamping handle Arm up button Motor stop button Overall stop button Spindle reverse button Spindle change button Fixing cutting limitation handle Spindle speed change... - Page 23 Machine Tools OPERATING INSTRUCTIONS 8.5、The empty block of spindle Take the spindle speed change handle 10 to the “0” position , then you can turning the Spindle easily by hand . Notice ;You must stop before change the speed . 8.6、Spindle feeding Organism feeding—pull the Handle 12 out., then spindle feeding automatically .
