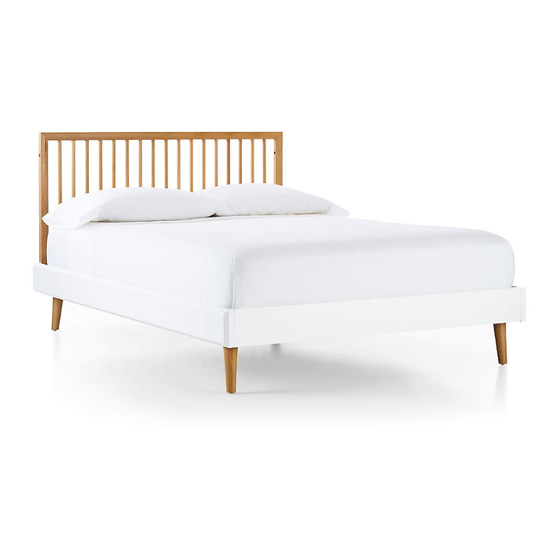

Mid-Century Spindle Conversion Bed
Assembly Instructions
WARNING
!
• Do not place near windows where cords from blinds or drapes may strangle a child.
• Do not place items with a string, cord or ribbon around a child's neck, such as hood
strings or pacifier cords.
• Do not suspend strings over a bed for any reason.
• The intended mattress dimension on the bed are as follows:
Full: 53"-54"W x 74"-75"L
CLEANING AND CARE:
Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.
Periodically check and ensure that the components of this bed are in their proper position,
free from damage, and all connectors are tight.
Made in Vietnam - r04
800.967.6696 | crateandbarrel.com
Advertisement
Related Manuals for Crate&Barrel Mid Century Spindle Conversion Bed
Summary of Contents for Crate&Barrel Mid Century Spindle Conversion Bed
- Page 1 Mid-Century Spindle Conversion Bed Assembly Instructions WARNING • Do not place near windows where cords from blinds or drapes may strangle a child. • Do not place items with a string, cord or ribbon around a child’s neck, such as hood strings or pacifier cords.
- Page 2 Mid-Century Spindle Conversion Bed Assembly Instructions This page lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
- Page 3 Mid-Century Spindle Conversion Bed Assembly Instructions 1 - Side panel 2 - Leg A 2 - Leg B *Provided with *Provided with *Provided with crib packaging crib packaging crib packaging 1 - Slat assembly 2 - Side rails 1 - Footboard 800.967.6696 | crateandbarrel.com...
- Page 4 Mid-Century Spindle Conversion Bed Assembly Instructions side panel/ headboard foot rail (Pre-attached to large bolts) Attach 1 leg A and 1 leg B to 1 side panel/headboard as shown. Using a small Allen wrench, secure each leg with 2 large bolts, 2 spring washers and 2 flat washers as shown.
- Page 5 Mid-Century Spindle Conversion Bed Assembly Instructions footboard assembly (Pre-attached to large bolts) With assistance of another adult, attach footboard assembly to side rail with 2 large bolts, 2 spring washers and 2 flat washers as shown. (Pre-attached to large bolts) At this point, insert 1 large bolt, 1 spring washer, 1 flat washer and 1 half-moon bracket into footboard assembly as shown.
- Page 6 Mid-Century Spindle Conversion Bed Assembly Instructions (Pre-attached to large bolts) Attach remaining side panel to bed assembly and secure with 5 large bolts, 5 spring washers and 5 flat washers as shown. (Pre-attached to large bolts) At this point, insert 1 large bolt, 1 spring washer, 1 flat washer and 1 half-moon bracket into footboard assembly as shown.
- Page 7 Mid-Century Spindle Conversion Bed Assembly Instructions Position bed assembly upright. Place slat assembly into bed assembly and secure with 14 screws as shown. Secure, but do not over tighten, screws with a Phillips head screwdriver. Insert 2 bolt caps into exposed holes of outside of headboard assembly as shown. Secure each bolt cap with 1 small bolt, 1 spring washer and 1 flat washer, using 2 small Allen wrenches.
