Info: The most current version of these instructions can be found online at www.grahamfield.com.
WARNING: Important! Read and understand these instructions before assembling or
using your Lumex Drop Arm VersaMode. If you do not understand any part of these
warnings, cautions or instructions, contact a healthcare professional for direction in
the use of this product. If the VersaMode is not properly adjusted, personal injury and
damage to the VersaMode could result.
WARNING: If components are damaged or missing, contact your GF authorized distributor
immediately. DO NOT use substitute parts. Use only Lumex replacement parts. Non-Lumex
replacement parts could cause personal injury and damage to the VersaMode.
WARNING: This product has a maximum weight capacity of 300 lb, EVENLY DISTRIBUTED.
WARNING: Notice for California Customers- California Proposition 65 WARNING: This
product contains a chemical known to the State of California to cause cancer and
reproductive or developmental harm.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper assembly or use of this product.

INTENDED USE

To provide transport, transfer, and commode functions with one device.

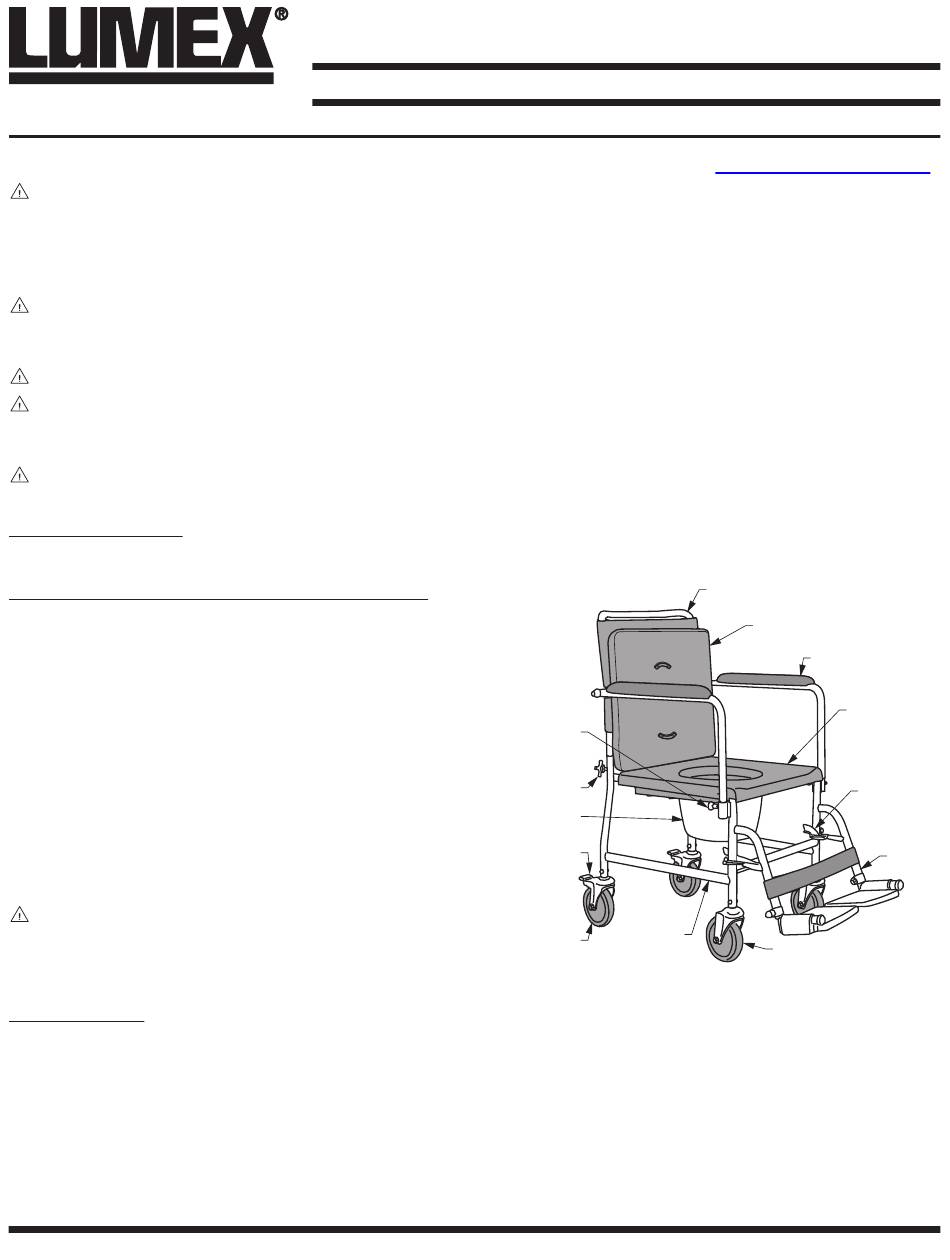

ASSEMBLY (SEE PICTURE AT RIGHT)
1. Carefully remove components from box.
2. Install back and arm assembly on base and
seat frame assembly by inserting back tubes
into base frame tubes. If necessary loosen,
but do not remove, knobs.
3. Tighten knobs at rear seat until secure — do
not overtighten.
4. Install footrests on base frame footrest
brackets. Lock footrests into place.
5. Slide the commode pail in under the seat from
the back.
WARNING: Before use, ensure all
components are securely installed and
VersaMode is assembled as described
above.

OPERATION

Drop Armrests
The VersaMode armrests drop to facilitate transfer. To drop the armrest, pull the release lever
outward until the armrest releases, lift the armrest up out of the socket, then swing it downward.
Lock Rear Casters
The rear casters lock into place to prevent movement. To lock, step on the rear pedal until it
latches. To unlock, step on the rear pedal until it unlatches.
6810A-INS-LAB-RevRevC15
6810A: DROP ARM VERSAMODE
ASSEMBLY AND OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
PARA INSTRUCCIONES EN ESPAÑOL, VÉASE LA PÁGINA 3
armrest
release
lever
knob
commode
pail
locking
pedal
base and
rear
seat frame
(locking)

assembly

caster
6810A Drop Arm VersaMode
™
back and arm
assembly
seat cushion (flipped up
to show commode seat)
armrest
commode seat
footrest
release
lever
front caster
footrest
1
