Series FR566DG Deluxe Clinical Care Recliner with Drop Arm
Series FR566GH Deluxe Clinical Care Recliner
Series FR566DGH Deluxe Clinical Care Recliner with Drop Arm
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX
FR566G / FR566DG / FR566GH / FR566DGH DELUXE CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.

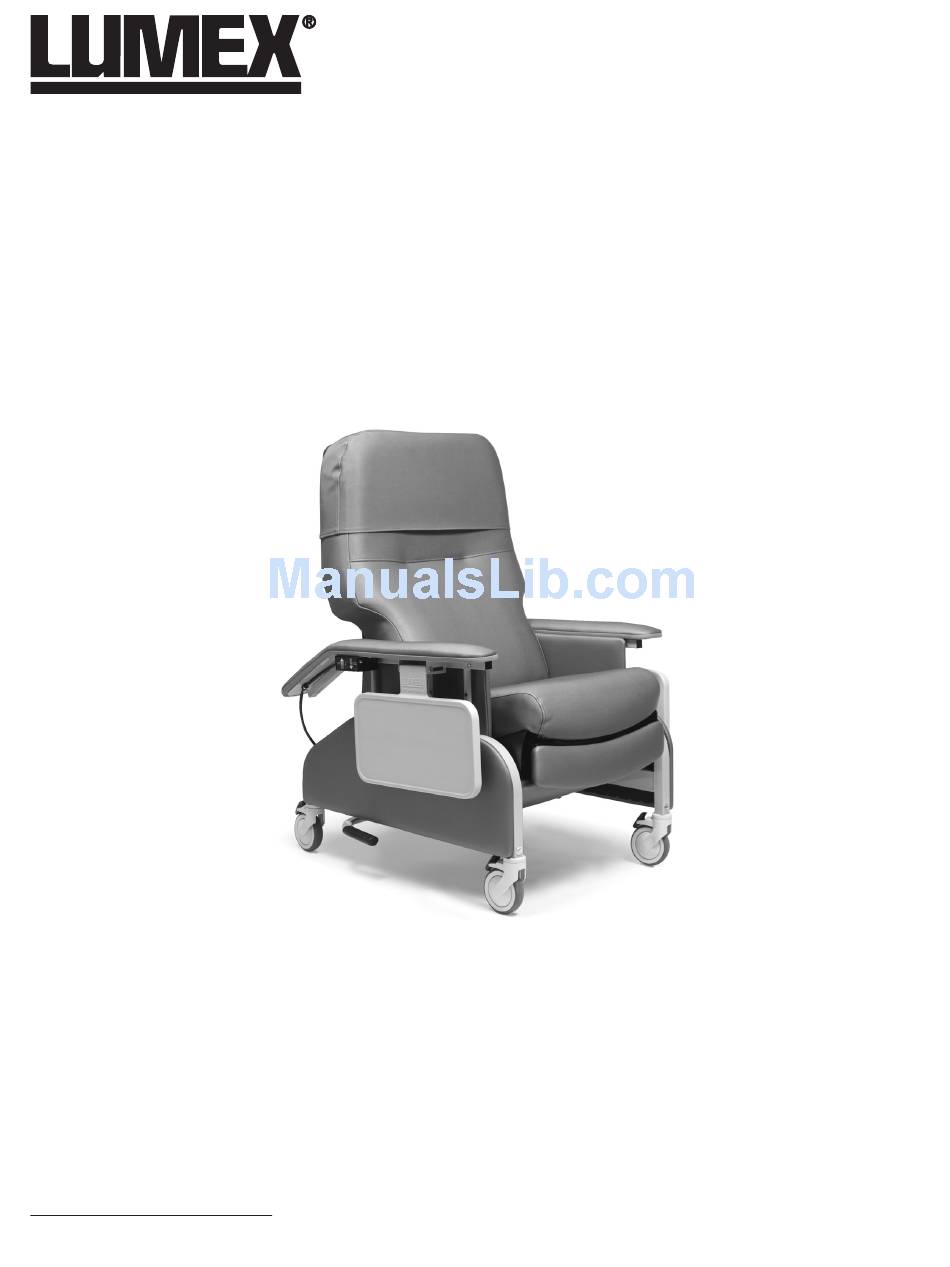

Series FR566G Deluxe Clinical Care Recliner
with Heat and Massage
with Heat and Massage
Assembly and Operating Instructions
FR566DG-INS-LAB-RevF16
Advertisement
Table of Contents
Related Manuals for Lumex FR566G
Summary of Contents for Lumex FR566G
- Page 1 Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR566G / FR566DG / FR566GH / FR566DGH DELUXE CLINICAL CARE RECLINER. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT www.grahamfield.com.
- Page 2 TRENDELENBURG POSITION (ALSO KNOWN AS SHOCK POSITION) ..........12 DROP ARM FUNCTION, FR566DG AND FR566DGH ONLY ................13 TO OPERATE THE DROP ARM FEATURE ....................13 LUMEX CLINICAL CARE RECLINERS WITH HEAT AND MASSAGE FEATURE ..........14 INSTALLATION AND OPERATING GUIDE .....................14 DESCRIPTION ............................14 CONNECTION ............................15...
-
Page 3: Introduction
The safety statements presented in this chapter refer to the basic safety information that the FR566G / FR566DG / FR566GH / FR566DGH user must pay attention to and abide by. There are additional safety statements in other chapters or sections, which may be the same as or similar to the following, or specific to the operations. - Page 4 WARNING: This product has a maximum weight capacity of 350 lb (158 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.
-
Page 5: Assembly
(total of 3 on recliner; black locking tab) frame rear directional (swivel) locking caster (right rear leg only; green locking tab) Trendelenburg release bar removable side panel Clinical Care Recliner Series FR566G FR566DG-INS-LAB-RevF16... -
Page 6: Features, Fr566Dg And Fr566Dgh
Features, FR566DG and FR566DGH upholstered back upholstered seat upholstered armrest padded push handle gas spring upholstered actuating lever legrest / skirt upholstered footrest fold down side table total locking caster frame (total of 3 on recliner; black locking tab) rear directional (swivel) locking caster removable side panel (right rear leg only;... -
Page 7: Upholstered Back Assembly, All Models
Upholstered Back Assembly, All Models upholstered back upholstered skirt threaded knobs upholstered back’s kd brackets steel tube mechanism’s bayonet links bracket and link to be even threaded knob through large hole in bayonet link kd bracket bayonet link 1. Lift the skirt on the rear of the upholstered back. To make assembly easier, hold skirt up with a small piece of tape to fully expose the kd (knock-down) brackets that are to be mated to the two bayonet lugs on the recliner mechanism. -
Page 8: Operation
WARNING: Casters must be locked at all times, except during transport. black actuator tab green actuator tab All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE. Specifically designed for use in healthcare environments, the new casters are easier to clean, easier to move, and tolerate a wide array of cleaners and chemicals. -
Page 9: Side Table Operation, All Models
SIDE TABLE OPERATION, ALL MODELS To Raise Table side table (disengaged position) Raise the side table all the armrest way up and slide in toward the armrest until tabs engage " clevis pin slots in mount bracket. Press attachment down lightly on table to ensure side table (engaged position) locking tabs are engaged. -
Page 10: Side Panel Operation
SIDE PANEL OPERATION For easy cleaning and access to the side and underside of the recliner, Lumex Clinical Care Recliners feature easy-to-remove side panels. FR566G and FR566GH To Remove Side Panel: depress panel tabs the two push buttons located side panel on the lower sides of frame. -
Page 11: Recliner Operation, All Models
RECLINER OPERATION, ALL MODELS The Lumex Series FR566G / FR566DG / FR566GH / FR566DGH recliners feature three positions for patient comfort. The fourth position is a Trendelenburg (or Shock Position) that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the recliner. -
Page 12: Third Position
Third Position The third position is the Second Recline Position and is also known as the “Full Recline” position. This position is ideal for patient treatment, rest and reading. Upright Position First Recline Position (TV Position) To Achieve Third Position / Second Recline Position: • Reclining by the patient: from the First Recline Position continue to push against the back by placing your hands on the armrests and continue to recline... -
Page 13: Drop Arm Function, Fr566Dg And Fr566Dgh Only
DROP ARM FUNCTION, FR566DG AND FR566DGH ONLY The Lumex Deluxe Clinical Care Recliner with Drop Arm (Series FR566DG and FR566DGH) features self-storing drop arms that are simple for the caregiver to actuate. By lowering the arm, a safer and easier lateral transfer for the resident and caregiver can be achieved. -
Page 14: Lumex Clinical Care Recliners With Heat And Massage Feature
Heat and Massage Unit, controllable by the user and / or caregiver, designed to enhance the comfort of the patient / resident during the use of Lumex Clinical Care Recliners. The Heat and Massage Unit offers three levels of seat and back heat, as well as a gentle or firm massage function for just lower back or both lower and upper back. -
Page 15: Connection
Connection The Heat and Massage Unit comes pre-installed in Lumex Clinical Care Recliners with the Heat and Massage Option (FR566GH and FR566DGH). During recliner shipment, the Heat and Selector Switch connections are disconnected. Several easy connections are all that is required to make the unit functional. -
Page 16: Heat And Massage Unit Setup Instructions
Heat and Massage Unit Setup Instructions 1. Place the back cushion over the vertical bayonet recliner mechanism lugs of the recliner mechanism. Secure back on each side with the threaded screw knobs enclosed knob with the Recliner Operating Instructions, as shown at right. -
Page 17: Heat And Massage Unit Operation Instructions
Heat and Massage Unit Operation Instructions 1. Plug the power supply cord into any grounded outlet. 2. The Heat and Massage Unit is operated using the single multi-position selector switch located on the right side of the recliner underneath the armrest. The Heat and Massage functions can be operated independently. -
Page 18: Heat And Massage Unit Troubleshooting Guide
Heat and Massage Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison. -
Page 19: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure casters into frame. • Check brakes on casters. • Check and clean lock recline mechanism. • Check recliner mechanism for operation in all positions, including Trendelenburg Position, with assistant seated in recliner. UPHOLSTERY MAINTENANCE AND STAIN REMOVAL • Ordinary dirt: wash with warm water and a mild soap or detergent. • Stubborn dirt: using a soft bristle brush, wash with warm water and a mild soap or detergent. -
Page 20: Cdc Recommendations
The information published in this care guide refers to the performance of PERMABLOK3® products in specific tests conducted under laboratory conditions. Results may vary under actual conditions. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. - Page 21 • Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offices). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. • Do not perform disinfectant fogging in patient-care areas. • Avoid large-surface cleaning methods that produce mists or aerosols, or disperse dust in patient-care areas. • Follow proper procedures for effective uses of mops, cloths, and solutions.
-
Page 22: Ce Certification (Series Fr566G / Fr566Dg Only)
CE CERTIFICATION (SERIES FR566G / FR566DG ONLY) Info: CE Certification applies ONLY to Series FR566G Deluxe Clinical Care Recliner and Series FR566DG Deluxe Clinical Care Recliner with Drop Arm. CE Certification DOES NOT apply to Series FR566GH Deluxe Clinical Care Recliner with Heat and Massage nor Series FR566DGH Deluxe Clinical Care Recliner with Drop Arm with Heat and Massage. -
Page 23: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
