alpro EB1001 Instructions

TECHNICAL INFORMATION
Power to Lock/Fail open.
Stainless steel bolt - diameter 15mm
- throw 15mm
Voltage required 12vDC
Activating current 1.0A
Holding current 250 mA
Fully protected against transients and
reverse polarity
The Autolock Time Delay can be set for
0, 3, 6 or 9 seconds.
Monitoring - Door position switch (DSS)
- Bolt position indicator
GENERAL INSTALLATION
INSTRUCTIONS
1
Ensure you have the following:-
- Strike plate
- Electric bolt
2
All rebate strips and/or frame stops
should be fitted before starting.
3
A 2 amp Power Supply should be
provided to ensure there is a Full 1
amp for the bolt. This should allow for
a basic Access System and a back up
battery to be connected to the same
source.
WARNING - THE CONNECTION
OF AN INCORRECT VOLTAGE
MAY RESULT IN DAMAGE NOT
COVERED BY THE PRODUCT
WARRANTY.
4
The selection of appropriate power
supply cable is very important to
ensure lock receives sufficient power
to operate.
lpro
®
First Choice for Locking Solutions
T 01202 676262
Electric Bolt
EB1001 - Instructions
40
14
172
17
3

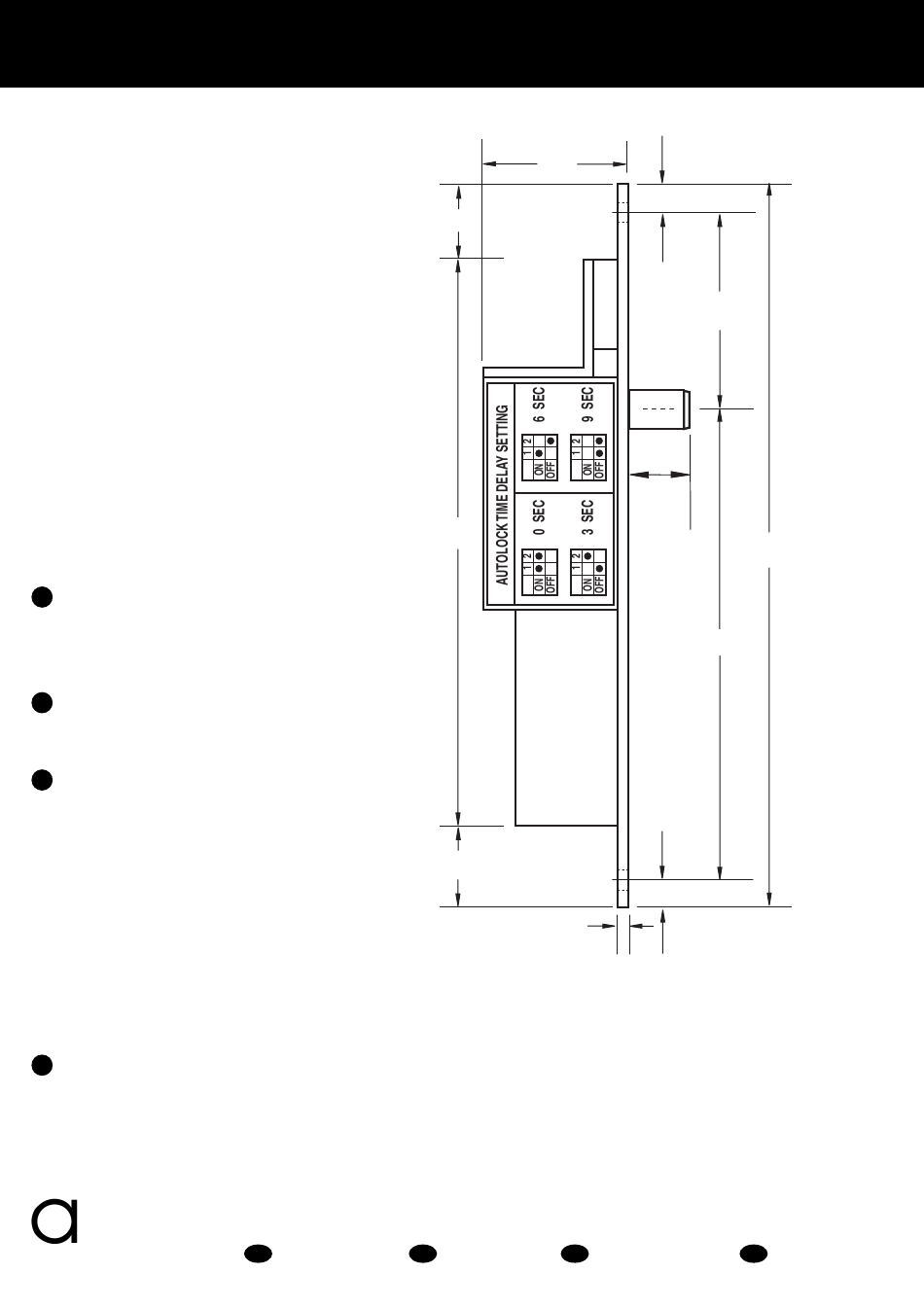

Bolt Face Plate 203 x 34 x 3mm
Strike Plate 98 x 34 x 3mm
F 01202 680101 E
9.5
57.5
15
203
126.5
9.5
