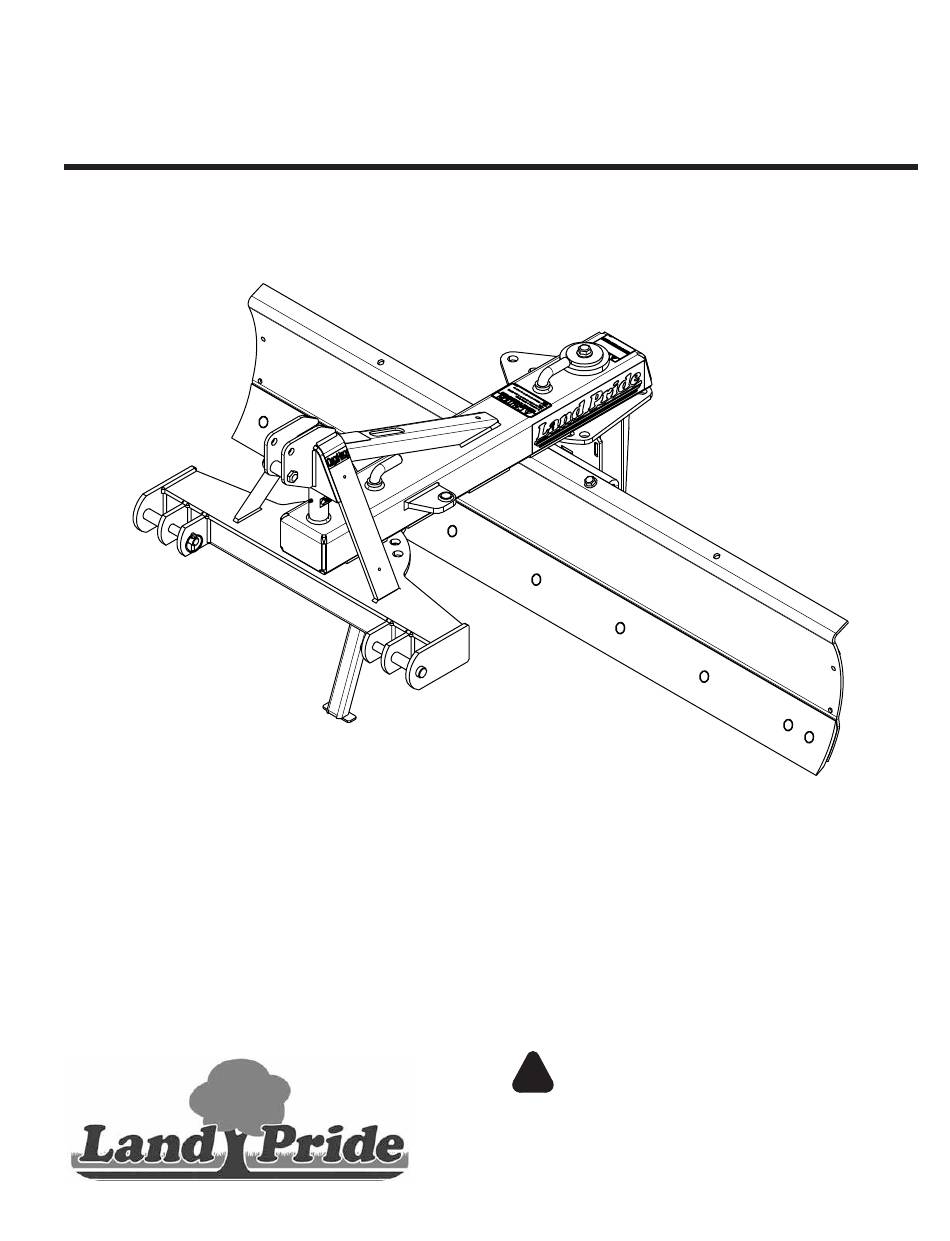

Re a r Bla d e s
RB3772, RB3784, & RB3796
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
301-457M
Operator's Manual
Printed 11/27/18
35450

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB3772 and is the answer not in the manual?

Questions and answers

Summary of Contents for Land Pride RB3772

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 11/27/18...
  • Page 2: Machine Identification

    Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.
  • Page 6: Tire Safety

     Lower implement to the ground and  Replace parts on this implement implement. follow all shutdown procedures with genuine Land Pride parts only.  Attach the chain to the tractor before leaving the operator’s seat to Do not alter this implement in a way drawbar support or other specified perform maintenance.
  • Page 7 Use Seat Belt and ROPS signals are recommended Keep Riders Off whenever driving on public roads. Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Never carry riders on tractor or structures (ROPS) and seat belt implement.
  • Page 8: Safety Labels

    Spray soapy water on the surface where the label is to all damaged or missing labels. Order new labels from your be placed. nearest Land Pride dealer. To find your nearest dealer, Peel backing from label. Press firmly onto the surface. visit our dealer locator at www.landpride.com.
  • Page 9 Table of Contents Important Safety Information 818-798C Warning: Pinch Point Hazard 35451 818-487C Warning: Crushing Pinching Hazard 35451 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 10: Using This Manual

    Table of Contents Introduction Introduction Land Pride welcomes you to the growing family of new NOTE: A special point of information that the product owners. This Rear Blade has been designed with operator should be aware of before continuing. care and built by skilled workers using quality materials.
  • Page 11: Tractor Requirements

    1" bent pin (#16). aligned with hole “B” in mainframe. Make sure Z-bracket (#5A) is caught under pivot plate (#10). 10. Clean excess grease and paint from around top of blade pivot shaft (#8). 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 12: Point Hook-Up

    35453 Cat. I & II Top Center Hitch Mounting Holes Linchpin Hitch Pin Linchpin Quick Hitch Hook-up Hitch Pin Parking Stand Cat. l Hook-Up Cat. ll Hook-Up Tractor 3-Point Hitch Figure 1-2 RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 13: Hydraulic Angling Kit

    13. Remove bent pin (#13) and store with pivot cap (#6). pins (#2A & #2B) and four cotter pins (#1A & #2A). Store only clevis pin (#2B) with pivot cap (#6). 35454 Hydraulic Blade Angling Accessory Kit Figure 2-1 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 14: Skid Shoes

    3. Insert skid shoe (#1) into skid shoe mount (#2) and secure with bent pin (#10) and hairpin cotter (#11). 4. Repeat steps 1-3 above for the opposite end of moldboard (#3). RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 15: Blade Offset

    , pull bent pin (#3) up until pin 2. Pull bent pin (#2) pin from mainframe. is out of hole in hitch turntable (#1). 3. Rotate blade 180 and then reinsert bent pin (#2). 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 16: Blade Tilt

    IMPORTANT: To help protect the Rear Blade from damage while backfilling, lengthen the center 3- point link to decrease blade pitch until blade moves across the top of the ground without forcing itself into the soil. RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 17: Operating Checklist

    Avoid catching hydraulic hoses on brush, posts, tree limbs, • implement as this can damage property and cause tractor to and other protrusions that could damage and/or break them. pivot violently resulting in loss of control. 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 18: Inspection After Hook-Up

    Angle blade as far as possible towards the left rear implement offset to one side can extend beyond the tractor tractor tire and repeat steps 2 through 6 tire which creates a a higher risk of hitting traffic and other obstructions. RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 19: Rear Blade Functions

    11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 20: General Operating Instructions

    Manual, completed operations checklist, and properly or cutting a new ditch bank or forming a road crown, you attached your Land Pride Rear Blade to your tractor, you will probably want to offset the blade in combination with are almost ready to begin work. Hopefully you have setting an appropriate tilt angle.
  • Page 21: Long Term Storage

    Land Pride parts. Do not alter the blade in a way which TU, QT, or GL to the end of the Aerosol part will adversely affect its performance.
  • Page 22 Quantity = Coat Generously 35450 Hours Hitch Pivot Shaft Type of Lubrication: Multi-Purpose Grease Quantity = Until grease emerges 35460 Hours Blade Pivot Shaft Type of Lubrication: Multi-Purpose Grease Quantity = Until grease emerges 35461 RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 23: Section 6: Specifications & Capacities

    1/2" x 6" Heat treated, Replaceable & Reversible (Double bevel) Parking Stand Folding Accessories Hydraulic Blade Angling, Skid Shoes, and End Plates 38 1/4" RB3772 = 71 1/2" RB3784 = 83 1/2" 51 3/4" RB3796 = 95 1/2" 35462 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 24: Section 7: Features And Benefits

    End plates hold material in to be moved. Skid Shoes (accessory) Help protect from hitting low obstructions by keeping the cutting edge off the ground. Set skid shoes to clear obstructions like manhole covers and street cracks. RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 25: Section 8: Troubleshooting

    Moldboard Falls From the Moldboard retaining bolt is missing. Check Moldboard pivot bolt daily. Make sure Mainframe it is properly tightened. Apply loctite if it keeps coming loose. Replace missing bolt. 11/27/18 RB3772, RB3784, & RB3796 Rear Blades 301-457M...
  • Page 26: Section 9: Torque Values Chart

    = nominal thread diameter in millimeters x thread pitch 1-1/2" - 12 1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. RB3772, RB3784, & RB3796 Rear Blades 301-457M 11/27/18...
  • Page 27: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 28 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
