4-575-277-01(1)
交換レンズ
Interchangeable Lens
Objectif interchangeable
取扱説明書
Operating Instructions
Mode d'emploi
Manual de instrucciones

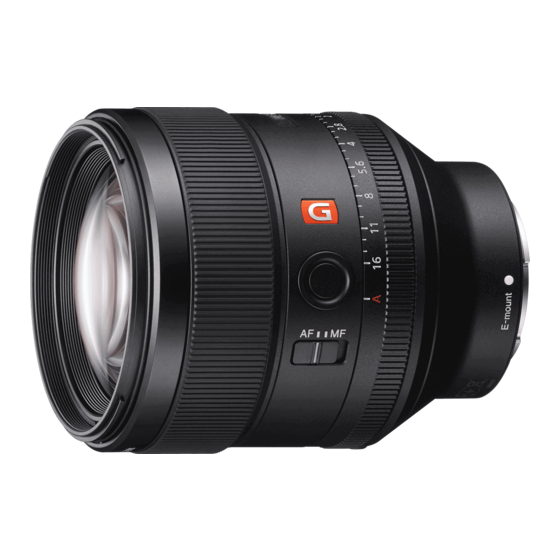

FE 85mm
F1.4 GM
E-mount
(1)
SEL85F14GM
(2)
©2015 Sony Corporation
Printed in Thailand
1
2
3
4 5
a
6
7 8
12
13
9
10
11
4
この取扱説明書には、 事故を防ぐための重要な注意事項と製品
の取り扱いかたを示しています。この取扱説明書をよくお読
みの上、 製品を安全にお使いください。お読みになったあとは、
–1
いつでも見られる所に必ず保管してください。
この 「取扱説明書」 ではレンズの使いかたを説明し
ています。使用上のご注意など、 レンズに共通した
ご注意や説明については別冊の 「使用前のご注意」
でご覧頂けます。
必ずご使用の前に、 本書と合わせてよくお読みのう
えでご使用ください。
(1)
(2)
本機はソニー製αカメラシステムEマウントカメラ専
用のレンズです。Aマウントカメラにはお使いになれ
ません。
35mm判相当の撮像素子範囲に対応しています。
35mm判相当の撮像素子搭載機種ではカメラ設定に
よってAPS-Cサイズでも撮影が可能です。
カメラの設定方法については、 カメラの取扱説明書を
–2
ご覧ください。
カメラ本体との互換情報については専用サポートサイ
トでご確認ください。
http://www.sony.jp/support/ichigan/
使用上のご注意
• • レンズを取り付けてカメラを持ち運ぶときは、 カメラと
レンズの両方をしっかり持ってください。
• • 本機は防じん、 防滴性に配慮して設計されていますが、 防
水性能は備えていません。雨中使用時などは、 水滴がか
からないようにしてください。
フラッシュ使用時のご注意
• • フラッシュ使用時には、 レンズフードをはずして1m以上
離れて撮影してください。レンズとフラッシュの組み合
わせによっては、 レンズがフラッシュ光を妨げ、 写真の下
部に影ができることがあります。
周辺光量について
• • レンズは原理的に画面周辺部の光量が中心部に比べ低下
します。周辺光量の低下が気になる場合は、 開放絞りか
ら1~ 2段絞り込んでご使用ください。
各部のなまえ
1• レンズフード指標
2• フォーカスリング
3• 絞り指標
4• 絞り目盛
5• 絞りリング
6• マウント標点
7• フォーカスモードスイッチ
8• フォーカスホールドボタン
9• レンズフード
10•フード取りはずしボタン
11• 絞りリングクリック切換スイッチ
12•レンズ信号接点*
13•レンズマウントゴムリング
*•直接手で触れないでください。
レンズの取り付けかた/取りはず
しかた
取り付けかた (イラスト–参照)
1
前後のレンズキャップとカメラのボディ
キャップをはずす。
ˎ レンズフロントキャップは図の (1) 、 ( 2) の2通りの方
ˎ
法で取り付け/取りはずしができます。 ( 2) は、 レン
ズフードを付けた状態でのレンズキャップの取り付
け/取りはずしに便利です。
2
レンズとカメラの白の点 (マウント標点) を
合わせてはめ込み、 レンズを軽くカメラに押
し当てながら、 時計方向に 「カチッ」 とロック
がかかるまでゆっくり回す。
ˎ レンズを取り付けるときは、 カメラのレンズ取りは
ˎ
ずしボタンを押さないでください。
ˎ レンズを斜めに差し込まないでください。
ˎ
取りはずしかた (イラスト–参照)
カメラのレンズ取りはずしボタンを押したま
ま、 レンズを反時計方向に回してはずす。
レンズフードを取り付ける
画面外にある光が描写に影響するのを防ぐために、 レ
ンズフードの使用をおすすめします。
レンズフードの赤線をレンズの赤線 (レンズ
フード指標) に合わせてはめ込み、 「 カチッ」 とい
うまで時計方向に回す。
• • カメラ内蔵、 もしくは外付けフラッシュを使って撮影す
るときは、 フラッシュ光が遮られることがありますので、
レンズフードをはずしてください。
• • 撮影後レンズフードを収納するときは、 逆向きにレンズ
に取り付けてください。
取りはずしかた
レンズフードのフード取りはずしボタンを押し
ながら、 反時計方向に回してはずす。
ピントを合わせる
ピント合わせは、 以下3つの設定方法があります。
・オートフォーカス
ピント合わせを自動で行う。
・DMF(ダイレクトマニュアルフォーカス)
オートフォーカスでピントを合わせた後に、 マニュア
ルでピントを微調整する。
・マニュアルフォーカス
ピント合わせを手動で行う。
各モードの設定方法は、 カメラの取扱説明書をご覧く
ださい。
電気製品は、 安全のための注意事項を守ら
動画時のAFは一部のカメラ本体においてお使いにな
ないと、 人身への危害や火災などの財産へ
れません。
の損害を与えることがあります。
カメラ本体との互換情報については専用サポートサイ
トでご確認ください。
AF(オートフォーカス)/ MF(マニュアル
フォーカス) の切り替え
AF(オートフォーカス:自動ピント合わせ)/ MF(マ
ニュアルフォーカス:手動によるピント合わせ) の設定
を、 レンズ側で切り替えることができます。
AFで撮影する場合は、 カメラ側とレンズ側両方の設定
をAFにします。カメラ側あるいはレンズ側のいずれか
一方、 または両方の設定がMFの場合、MFになります。
レンズ側の設定
フォーカスモードスイッチを、AFまたはMFの
いずれか設定したいほうに合わせる (1) 。
• • カメラのフォーカスモードの設定方法については、 カメ
ラの取扱説明書をご覧ください。
• • MFではファインダー等を見ながらフォーカスリングを
回して、 ピントを合わせます (2) 。
AF/MFコントロールボタンを装備したカメラをお
使いの場合
• • AF動作時にAF/MFコントロールボタンを押すと、 一時的
にMFへ切り替えることができます。
• • MF動作時にAF/MFコントロールボタンで一時的にAFへ
切り替えができるのは、 レンズの設定がAF、 カメラの設
定がMFの場合となります。
フォーカスホールドボタンを使用
する
• • 本製品のフォーカスホールドボタンは、 一部のカメラ本
体においてお使いになれません。 •
カメラ本体との互換情報については専用サポートサイト
でご確認ください。
AF中にフォーカスホールドボタンを押すと、AFの駆
動を止めることができます。ピントが固定され、 その
ままのピントでシャッターを切れます。シャッターボ
タンを半押しした状態で、 フォーカスホールドボタン
を離すと、AFが再開します。
明るさを調節する
Attaching and Detaching the
Lens
絞り指標に絞り目盛 「A」 を合わせると、 オートアイリ
スモードになり、 カメラ本体で明るさを調節できます。
To attach the lens
また、 絞りリングを回すことで、 光量をF1.4 ~ F16にマ
(See illustration – .)
ニュアル調節できます。
1
マニュアルで光量調節する
Remove the rear and front lens caps and
the camera body cap.
カメラがMモードまたはAモードの状態で、 絞りリング
ˎ You can attach/detach the front lens cap in two
ˎ
を回して、 希望の絞り値 (F値) に合わせる。
ways, (1) and (2). When you attach/detach the
ご注意
lens cap with the lens hood attached, use method
動画撮影時に絞りリングを操作するときは、 絞りリン
(2).
2
グクリック切換スイッチを 「OFF」 にしてください。 ( イ
Align the white index on the lens barrel
ラスト-a)
with the white index on the camera
絞りリングクリック切換スイッチがOFFのときは、 操
(mounting index), then insert the lens
作音が軽減されます。 ( 動画撮影用)
into the camera mount and rotate it
絞りリングクリック切換スイッチを 「ON」 にしたまま
clockwise until it locks.
動画撮影中に絞りを変更すると、 操作音が記録されま
す。
ˎ Do not press the lens release button on the
ˎ
camera when mounting the lens.
主な仕様
ˎ Do not mount the lens at an angle.
ˎ
To remove the lens
商品名
FE 85mm F1.4 GM
(See illustration – .)
(型名)
(SEL85F14GM)
焦点距離 (mm)
While holding down the lens release
85
焦点距離イメージ*
1
(mm) 127.5
button on the camera, rotate the lens
レンズ群一枚
counterclockwise until it stops, then detach
8-11
画角1*
the lens.
2
29°
画角2*
2
19°
Attaching the Lens Hood
最短撮影距離*
(m)
3
オートフォーカス時
0.85
It is recommended that you use a lens hood to
マニュアルフォーカス時
0.8
reduce flare and ensure maximum image quality.
最大撮影倍率 (倍)
0.12
Align the red line on the lens hood with the
最小絞り
F16
red line on the lens (lens hood index), then
フィルター径 (mm)
insert the lens hood into the lens mount and
77
外形寸法 (最大径×長さ)
rotate it clockwise until it clicks into place.
89.5 × 107.5
(約:mm)
ˎ
ˎ
When using a built-in camera flash or an external
質量 (約:g)
flash attached to the camera, remove the lens hood to
820
avoid blocking the flash light.
手ブレ補正機能
なし
When storing, fit the lens hood onto the lens
ˎ
ˎ
*
• 撮像素子がAPS-Cサイズ相当のレンズ交換式デジタル
1
backwards.
カメラ装着時の35mm判換算値を表します。
To remove the lens hood
*
2
• 画角1は35mm判カメラ、 画角2はAPS-Cサイズ相当の撮
像素子を搭載したレンズ交換式デジタルカメラでの値
While holding down the hood release button
を表します。
on the lens hood, rotate the lens hood
*
• 最短撮影距離とは、 撮像素子面から被写体までの距離を
3
counterclockwise.
表します。
Focusing
• • レンズの機構によっては、 撮影距離の変化に伴って焦点
距離が変化する場合があります。記載の焦点距離は撮影
There are three ways to focus.
距離が無限遠での定義です。
Auto focus
ˎ
ˎ
同梱物 ( (•) 内の数字は個数)
The camera focuses automatically.
レンズ (1) 、 レンズフロントキャップ (1) 、 •
DMF (Direct manual focus)
レンズリヤキャップ (1) 、 レンズフード (1) 、 •
ˎ
ˎ
レンズケース (1) 、 印刷物一式
After the camera focuses in auto focus, you can
make a fine adjustment manually.
仕様および外観は、 改良のため予告なく変更すること
Manual focus
がありますが、 ご了承ください。
ˎ
ˎ
You focus manually.
および
はソニー株式会社の商標です。
For details on mode settings, refer to the instruction
manual supplied with the camera.
With some camera models, AF does not function
during movie recording.
For further information on compatibility, visit the
This instruction manual explains how to use
web site of Sony in your area, or consult your dealer
lenses. Precautions common to all lenses such
of Sony or local authorized service facility of Sony.
as notes on use are found in the separate
"Precautions before using". Be sure to read both
To switch AF (auto focus)/
documents before using your lens.
MF (manual focus)
The focus mode can be switched between AF and
This lens is designed for Sony α camera system
MF on the lens.
E-mount cameras. You cannot use it on A-mount
For AF photography, both the camera and lens
cameras.
should be set to AF. For MF photography, either or
The FE 85mm F1.4 GM is compatible with the range
both the camera or lens should be set to MF.
of a 35mm format image sensor.
A camera equipped with a 35mm format image
To set the focus mode on the lens
sensor can also be set to shoot at APS-C size.
Slide the focus mode switch to the
For details on how to set your camera, refer to its
appropriate mode, AF or MF (1).
instruction manual.
ˎ
ˎ
Refer to the camera manuals to set the focus mode of
For further information on compatibility, visit the
the camera.
web site of Sony in your area, or consult your dealer
ˎ
ˎ
In MF, turn the focusing ring to adjust the focus (2)
of Sony or local authorized service facility of Sony.
while looking through the viewfinder, etc.
To use a camera equipped with an AF/MF
Notes on Use
control button
ˎ
ˎ
By pressing the AF/MF control button during AF
ˎ
ˎ
When carrying a camera with the lens attached,
operation, you can temporarily switch to MF.
always firmly hold both the camera and the lens.
ˎ
ˎ
Pressing the AF/MF control button during MF
ˎ
ˎ
This lens is not water-proof, although designed with
operation lets you temporarily switch to AF if the lens
dust-proofness and splash-proofness in mind. If using
is set to AF and the camera to MF.
in the rain etc., keep water drops away from the lens.
Precautions on using a flash
Using the Focus Hold Buttons
ˎ
ˎ
When using a flash, always remove the lens hood and
shoot at least 1 m (3.3 feet) away from your subject.
ˎ
ˎ
The focus hold button of this lens does not function
With certain combinations of lens and flash, the lens
with some camera models.
may partially block the light of the flash, resulting in a
For further information on compatibility, visit the web
shadow at the bottom of the picture.
site of Sony in your area, or consult your dealer of
Sony or local authorized service facility of Sony.
Vignetting
When using the lens, the corners of the screen
ˎ
ˎ
Press the focus hold button in AF to cancel AF.
become darker than the center. To reduce this
The focus is fixed and you can release the shutter
phenomena (called vignetting), close the aperture by
on the fixed focus. Release the focus hold button
1 to 2 stops.
while pressing the shutter button halfway to start
AF again.
Identifying the Parts
Adjusting the Exposure
1 Lens hood index
2 Focusing ring
When you align "A" on the aperture scale to the
3 Aperture index
aperture index, the camera is set to auto iris mode
4 Aperture scale
and the exposure is set by the camera. And you can
5 Aperture ring
adjust the amount of light between f/1.4 and f/16 by
6 Mounting index
rotating the aperture ring.
7 Focus mode switch
Adjust the amount of light manually
8 Focus hold button
9 Lens hood
Rotate the aperture ring to the desired
10 Hood release button
exposure (f-stop) when the camera is set to
11 Aperture click switch
the M mode or A mode.
12 Lens contacts*
Notes
13 Lens mount rubber ring
Set the aperture click switch to OFF when shooting
* Do not touch the lens contacts.
movies. (See illustration -a)
When the aperture click switch is set to OFF, the
sound of the aperture ring is reduced. (For movie
recording)
If you change the aperture value while shooting a
movie with the aperture click switch set to ON, the
sound of the aperture ring will be recorded.
Specifications
Product name
FE 85mm F1.4 GM
(SEL85F14GM)
(Model name)
Focal length (mm)
85
35mm equivalent focal
127.5
length*
(mm)
1
Lens groups-elements
8-11
Angle of view 1*
2
29°
Angle of view 2*
2
19°
Minimum focus*
3
(m (feet))
Auto focus
0.85 (2.79)
Manual focus
0.8 (2.63)
Maximum magnification (X) 0.12
Minimum aperture
f/16
Filter diameter (mm)
77
Dimensions (maximum
89.5 × 107.5
diameter × height)
(3 5/8 × 4 1/4)
(approx., mm (in.))
Mass (approx., g (oz))
820 (29)
Shake compensation
No
function
*
1
This is the equivalent focal length in 35mm format
when mounted on an Interchangeable Lens Digital
Camera equipped with an APS-C sized image sensor.
*
Angle of view 1 is the value for 35mm cameras, and
2
angle of view 2 is the value for Interchangeable Lens
Digital Cameras equipped with an APS-C sized image
sensor.
*
3
Minimum focus is the distance from the image
sensor to the subject.
ˎ
ˎ
Depending on the lens mechanism, the focal length
may change with any change in shooting distance.
The focal lengths given above assume the lens is
focused at infinity.
Included items
(The number in parentheses indicates the number
of pieces.)
Lens (1), Front lens cap (1), Rear lens cap (1),
Lens hood (1), Lens case (1), Set of printed
documentation
Design and specifications are subject to change
without notice.
and
are trademarks of Sony Corporation.
Need help?
Do you have a question about the SEL85F14GM and is the answer not in the manual?
Questions and answers
