Huntcctv HTC-15A-24(DN) User Manual

HTC-15A-24(DN)
HTC-15E-24(DN)
The DSP 3-Axis Color DOMED camera HTC-15A-24(DN) & HTC-15E-24(DN)
incorporate advanced 1/3" high performing CCD Sensor and digital signal processor
(DSP) circuit.
HTC-15A-24(DN) (NTSC) : 1/3" CCD sensor 250,000 pixels
HTC-15A-24(DN) (PAL) : 1/3" CCD sensor 291,000 pixels
HTC-15E-24(DN) (NTSC) : 1/3" CCD sensor 380,000 pixels
HTC-15E-24(DN) (PAL) :1/3" CCD sensor 440,000 pixels
GAIN CONTROL(GC)- ON/OFF Switch
The adoption of an AUTOMATIC GAIN CONTROL (AGC) provides clear image in low
light condition.
ELECTRONIC SHUTTER(ES)- ON/OFF Switch
The 3-Axis Color DOMED Camera HTC-15A-24(DN) & HTC-15E-24(DN) incorporate
the Electronic Shutter up to 1/100,000.
BACK LIGHT COMPENSATION (BLC)—ON/OFF Switch
As you take a picture with strong light behind the subject, the picture would be looked
very dim on the subject.
In this case, you should select BLC ON, the AES should be in ON position.
NOTE: When you select BLC ON, the AES should be in ON position.
LENS
The 3-Axis Color DOMED Camera HTC-15A-24(DN) & HTC-15E-24(DN) include
3.6mm, 6.0mm, 8.0mm, 12.0mm board lens applications.
3-Axis COLOR DOME
3-AXIS ADJUSTMENTS

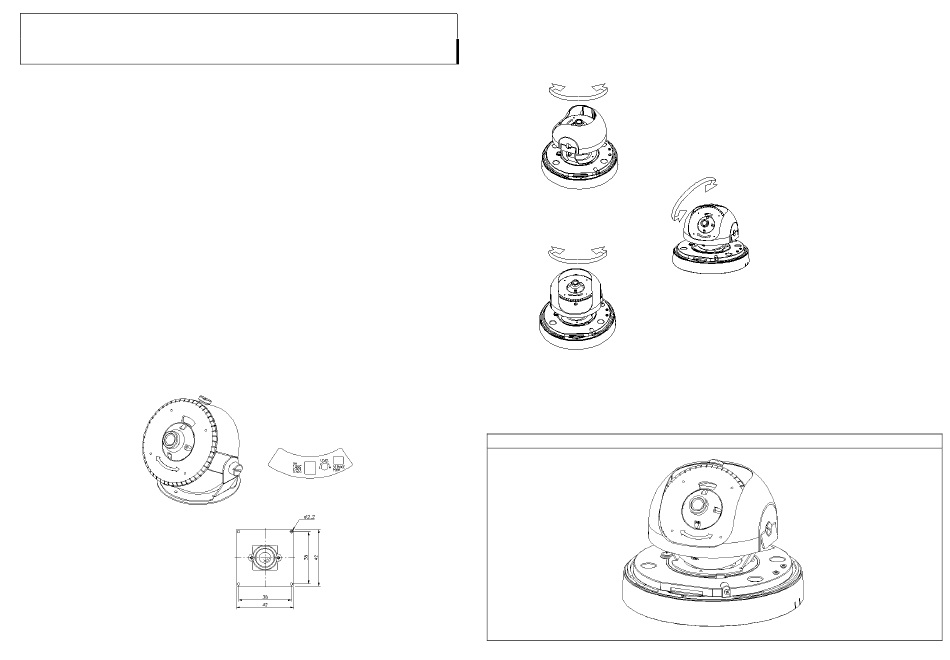

The 3-Axis camera maximum rotation and placement angel diagrams are shown in the
following.
INSTALLATION PROCEDURE
Camera will be installed as below when Ex-factory
1
○
1 Horizontal Rotation: 180˚
○
2 Tilt: 75˚
○
3 Pan: 175˚
