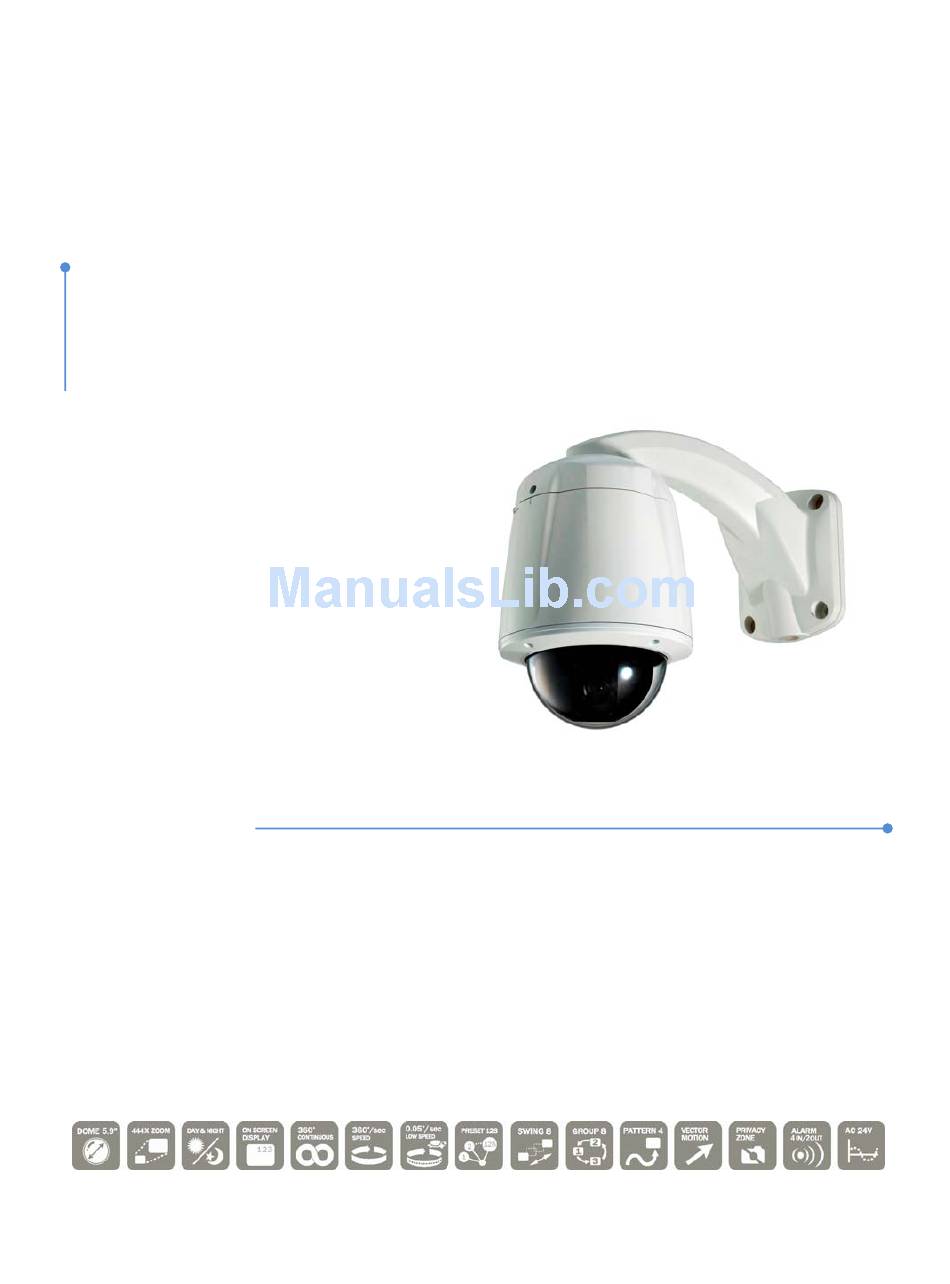

- Page 1 HTP‐T3700 INSTRUCTION MANUAL Ver 1.6 H.264 IP Speed Dome Camera Camera Manual Ver. 1.0...
- Page 2 This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE Important Safeguard Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
-
Page 4: Table Of Contents
CONTENTS ○ Introduction Features Product & Accessories Parts Name & Functions ○ Installation DIP Switch Setup Installation using Wall Mount Bracket Installation using Ceiling Mount Bracket Cabling ○ Operation Checking Before Operation Preset and Pattern Function Pre-Check Start OSD Menu Reserved Preset Preset Swing... -
Page 5: Introduction
INTRODUCTION Features Camera Specifications CCD Sensor : 1/4" Interline Transfer CCD Zoom Magnification : × 37 Optical Zoom, × 12 Digital Zoom (Max × 444 Zoom) Day & Night Function WDR (Wide Dynamic Range) Function HLC (High Light Compensation) Function EIS (Electronic Image Stabilization) Function Various Focus Mode : Auto-Focus / Manual Focus / Semi-Auto Focus. - Page 6 INTRODUCTION PTZ(Pan/Tilt/Zoom) Control With RS-485 communication, max. 255 of cameras can be controlled at the same time. Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware. OSD(On Screen Display) Menu OSD menu is provided to display the status of camera and to configure the functions interactively. The information such as Camera ID, Pan/Tilt Angle, Alarm I/O and Preset can be displayed on screen.
-
Page 7: Product & Accessories
INTRODUCTION Product & Accessories Product & Accessories Main Body * Main Body (Sun-Shield) * Dome Cover Wall mount bracket ** Ceiling Mount Bracket ** Screws cf) *, ** should be option and different by purchase order. Options Pole Mount Adapter Corner Mount Adapter 7/42 Speed Dome Camera Instruction Manual... -
Page 8: Parts Name & Functions
INTRODUCTION Parts Name & Functions Lockup Screws Main Body Cable Mold Line Cabling Terminal Block DIP Switch Fuse Main Body Drop Prevention Connector Spring Main Body Mount Bracket Dome Cover Do not detach protection vinyl from dome cover before finishing all installation process to protect dome cover from scratches or dust. -
Page 9: Installation
INSTALLATION DIP Switch Setup Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. Communication Protocol Camera ID CAM ID Camera ID Setup ID number of camera is set using binary number. The example is shown bellow. - Page 10 INSTALLATION Communication Protocol Setup Select the appropriate Protocol with DIP switch combination. Switch State Protocol/Baud rate (Pin 1) (Pin 2) (Pin 3) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps Otherwise Reserved If you want to control using DVR or P/T controller, their protocol must be identical to camera.
- Page 11 INSTALLATION Terminal resistor Setup erminal resistor is used if your system is one of following two cases. Case1: Control cable between camera and controller is relatively very long (1:1 connection) If communication cable is very long, the electrical signal will bound in the terminal point.
-
Page 12: Installation Using Wall Mount Bracket
INSTALLATION Installation using Wall Mount Bracket ① Install Wall Mount Bracket on wall. ② Wire cables to terminal blocks on the PCB in Wall Mount Bracket. ③ Hook up “Drop Prevention Spring” on main body ④ Line up the mold lines and assemble main body to prevent camera from unexpected drop and to Wall Mount Bracket. -
Page 13: Installation Using Ceiling Mount Bracket
INSTALLATION Installation using Ceiling Mount Bracket ① To pass cables to upside of ceiling, please make a ② Wire cables to terminal blocks on the PCB in hole with 50~60mm diameter on the ceiling panel Ceiling Mount Bracket. and attach the Ceiling mount bracket on it. ③... - Page 14 INSTALLATION ⑤ Turn main body on its axis in CW(Clockwise) direction and, after assembling them, screw main body to Ceiling Mount Bracket to protect them from separation by vibration or others. Gasket Installation Install the included gasket by the following procedure to prevent your camera from dust, insects and so on through the hole for line connection.
-
Page 15: Cabling
INSTALLATION Cabling IrDA Sensor Door Power COMMON+ PWR+ Switch SEN1 SEN2 Sensor PWR- SEN3 SEN4 VIDEO(+) RELAY1 Moinitor Light VIDEO(-) RS-485+ RELAY2 RS-485- Alarm Buzzer RS-485 Output Devices Braket Terminal Block Controller / DVR Power Connection Please, check the voltage and current capacity of rated power carefully. Rated power is indicated in the back of main unit. - Page 16 INSTALLATION Alarm I/O Connection Sensor Input Internal +5V~12V IN COM+ Sensor 1 Output IN 1- Sensor 4 Output IN 4- Before connecting sensors, check driving voltage and output signal type of the sensor. Since output signal types of the sensors are divided into Open Collector and Voltage Output type in general, the cabling must be done properly after considering these typed.
-
Page 17: Operation
OPERATION Check points before operation Before power is applied, please check the cables carefully. The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switch of the camera. If your controller supports multi-protocols, the protocol must be changed to match to that of the camera. -
Page 18: Start Osd Menu
OPERATION Starting OSD Menu Function Using the OSD menu, Preset, Pattern, Swing, Group and Alarm I/O function can be configured for each application. Enter Menu <Go Preset> [95] Reserved Preset Description Some Preset numbers are reserved to special functions. Function <Go Preset>... -
Page 19: Preset
OPERATION Preset Function Max. 127 positions can be stored as Preset position. The Preset number can be assigned from 1 to 128, but 95 is reserved for starting OSD menu. Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently for each preset. -
Page 20: Pattern
OPERATION Pattern Function Pattern Function is that a camera memorizes the path (mostly curve path) by joystick of controller for assigned time and revives the path exactly as it memorized. 4 Patterns are available and Maximum 1200 communication commands can be stored in a pattern. -
Page 21: Group
OPERATION Group Function The group function allows running sequence of Presets, Pattern and/or Swings. Max 8 group can be stored. Each group can have max 20 action entities which can be preset, pattern or swing. Preset speed can be set up and the repeat number of Pattern & Swing can be set up in Group setup. -
Page 22: Other Motion Functions
OPERATION Other Functions Power Up Action This function enables to resume the last action executed before power down. Most of actions such as Preset, Pattern, Swing and Group are available for this function but Jog actions are not available to resume. Auto Flip In case that tilt angle arrives at the top of tilt orbit(90°), zoom module camera turns on its axis by 180°... -
Page 23: Osd Display Of Main Screen
OPERATION OSD Display of Main Screen LABEL12345 PRESET1 Action Title Preset Label I:1--- O:-2 Alarm Information CAM 1 15/4/x1/N Camera ID P/T/Z Information P/T/Z Information Current Pan/Tilt angle in degree, zoom magnification and a compass direction. Camera ID Current Camera ID(Address). Action Title Followings are possible Action Titles and their meaning. -
Page 24: How To Use Osd Menu
HOW TO USE OSD MENU General Rules of Key Operation for Menu The menu items surrounded with ( ) always has its sub menu. For all menu level, to go into sub menu, press NEAR key. To go to up-one-level menu, press FAR key. To move from items to item in the menu, use joystick in the Up/Down or Left/Right. -
Page 25: Display Menu For Main Screen
HOW TO USE OSD MENU Display Setup This menu defines Enable/Disable of OSD display on Main Screen. If DISPLAY SETUP an item is set to be AUTO, the item is displayed only when the value of ------------------------ CAMERA ID it is changed. PTZ INFORMATION AUTO ACTION TITLE... -
Page 26: Privacy Zone Mask Setup
HOW TO USE OSD MENU PRIVACY ZONE MASK Setup Select area in image to mask. PRIVACY ZONE ------------------------ MASK NO Mask No [1~4] or [1~8] UNDEFINED DISPLAY Select Mask number. If the selected mask has CLEAR MASK CANCEL already data, camera moves as it was set. <EDIT MASK>... -
Page 27: Camera Module Setup
HOW TO USE OSD MENU CAMERA SETUP Setup the general functions of zoom camera module. ZOOM CAMERA SETUP ------------------------ Focus Mode [AUTO/MANUAL/SEMIAUTO] FOCUS MODE SEMIAUTO DIGITAL ZOOM Sets camera focus mode. LINE LOCK IMAGE FLIP SEMIAUTO Mode SHARPNESS STABILIZATION This mode exchanges focus mode automatically <WHITE BALANCE SETUP>... - Page 28 HOW TO USE OSD MENU White Balance Setup WB Mode [AUTO/MANUAL] WB SETUP - GLOBAL ------------------------ In Manual mode, Red and Blue level can be WB MODE AUTO ADJUST set up manually BLUE ADJUST Red Adjust [10~60] or [0~255] Blue Adjust [10~60] or [0~255] BACK EXIT...
- Page 29 HOW TO USE OSD MENU Shutter Speed [ESC/A.Flicker/Manual(×128~1/120000 sec)] or [ESC/A.Flicker/Manual((256~1/120000 sec)] If Iris is set to Manual and Shutter Speed is set to ESC, Shutter Speed should have highest priority. If Shutter Speed is set to A.Flicker, remove Flicker, Shutter Speed should be set to 1/100 sec.
- Page 30 HOW TO USE OSD MENU HLC (High Light Compensation) Setup Limit [AUTO/MANUAL] ------------------------ When there are too bright lights, this function LIMIT COLOR blocks light sources on the images to have better images. For example, when there is a car coming to a camera at night, this function bocks car headlights to recognize its number BACK plate.
-
Page 31: Motion Setup
HOW TO USE OSD MENU Motion Setup Setup the general functions of Pan/Tilt motions. MOTION SETUP Motion Lock [ON/OFF] ------------------------ MOTION LOCK PWR UP ACTION If Motion Lock is set to ON, it is impossible to AUTO FLIP set up and delete Preset, Swing, Pattern and JOG MAX SPEED 120/SEC JOG DIRECTION... - Page 32 HOW TO USE OSD MENU Parking Action Setup If Park Enable is set to ON, camera runs assigned function PARKING ACTION SETUP ------------------------ automatically if there is no PTZ command during assigned "Wait PARK ENABLE Time". WAIT TIME 00:10:00 PARK ACTION HOME Park Enable [ON/OFF]...
-
Page 33: Preset Setup
HOW TO USE OSD MENU PRESET Setup Preset Number [1~128] PRESET SETUP ------------------------ If a selected preset is already defined, camera PRESET NO. moves pre-defined position preset CLR PRESET CANCEL characteristics such as Label and Relay Outputs <EDIT SCENE> <EDIT LABEL> LABEL123 show on monitor. - Page 34 HOW TO USE OSD MENU Edit Preset Scene Using Joystick, move camera to desired position. ○ EDIT SCENE - PRESET 1 ------------------------ By pressing NEAR key, save current PTZ data. ○ Press FAR key to cancel. ○ MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL] Edit Preset Label...
- Page 35 HOW TO USE OSD MENU Relay Out Setup Relay Out × [ON/OFF] RELAY OUT - PRESET 1 ------------------------ Sets Relay Outputs for assigned preset. RELAY OUT 1 RELAY OUT 2 BACK EXIT 35/42 Speed Dome Camera Instruction Manual...
-
Page 36: Swing Setup
HOW TO USE OSD MENU Swing Setup Swing Number [1~8] SWING SETUP ------------------------ Selects Swing number to edit. If a selected Swing SWING NO. 1ST POS. NOT USED has not defined, "NOT USED" is displayed in 1st 2ND POS. NOT USED Position and 2nd Position SWING SPEED 30/SEC... -
Page 37: Pattern Setup
HOW TO USE OSD MENU Pattern Setup Pattern Number [1~4 ] PATTERN SETUP ------------------------ Selects Pattern number to edit. PATTERN NO. UNDEFINED If a selected pattern number is not defined, CLR PATTERN CANCEL RUN PATTERN "UNDEFINED" will displayed under <EDIT PATTERN> selected pattern number. -
Page 38: Group Setup
HOW TO USE OSD MENU Group Setup Group Number [1~8] GROUP SETUP ------------------------ Selects Group number to edit. GROUP NO. UNDEFINED If a selected Group number is not defined, CLEAR GROUP CANCEL RUN GROUP "UNDEFINED" will be displayed under selected <EDIT GROUP>... - Page 39 HOW TO USE OSD MENU ④ Set up items such as Action, ###, Dwell and OPT. EDIT GROUP 1 ------------------------ NO ACTION ### DWELL OPT ------------------------ 1 NONE 2 NONE 3 NONE 4 NONE 5 NONE ------------------------ BACK :MOVE CURSOR] CANCEL [ :CHANGE VAL.] ⑤...
-
Page 40: System Initialization
HOW TO USE OSD MENU System Initialization Clear All Data Deletes all configuration data such as display, SYSTEM INITIALIZE camera, motion setup and so on. ------------------------ CLEAR ALL DATA CLR DISPLAY SET Clear Display Set Initializes Display Configuration CLR CAMERA SET CLR MOTION SET CLR EDIT DATA Clear Camera Set Initializes Camera Configuration... -
Page 41: Specifications
SPECIFICATIONS Specifications Appearance Model HTP-T3700 Video Signal System NTSC 1/4'' SONY Double Density Interline Transfer CCD Max. Pixels 811(H)×508(V) 410K 795(H)×596(V) 470K Effective Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K Horizontal Res. 550 TV Line(Color), 680 TV Line(B/W) S/N Ratio 50 dB (AGC Off) Zoom ×37 Optical Zoom, ×12 Digital Zoom... -
Page 42: Dimension
SPECIFICATIONS Dimension Main Body Ceiling Mount Bracket 1-1/2" NPT 158.2 Main Body (Sun-Shield) 227.2 Wall Mount Bracket 3/4" NPT Unit (mm) 42/42 Speed Dome Camera Instruction Manual...
