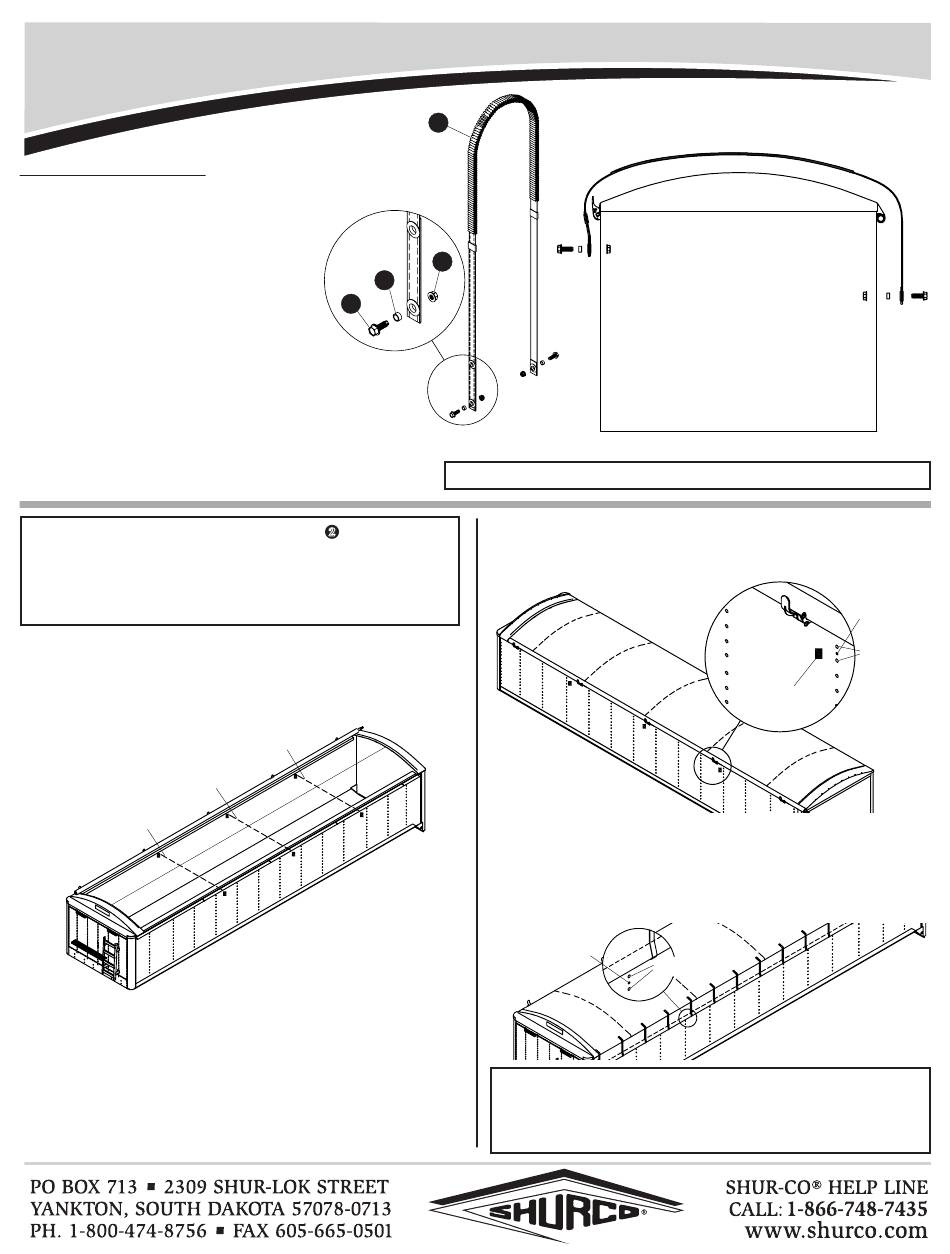

Shurco GustBuster Installation Instructions

Installation Instructions - GustBuster™ Tarp Cords
Item Part # Description
1125679 GustBuster™ Kit - 8' to 9' -
One Cord
1125680 GustBuster™ Kit - 8' to 9' -
Two Cords
1125681 GustBuster™ Kit - 8' to 9' -
Three Cords
1126741 GustBuster ™ Kit - 10' to 11' -
Two Cords
1126742 GustBuster ™ Kit - 11' to 12' -
Two Cords
1126743 GustBuster ™ Kit - 12' to 13'
Two Cords
1. 1705638 GustBuster™ Bolt On - 8' to 9'
1126738 GustBuster™ Bolt On - 10' to 11'
1126739 GustBuster™ Bolt On - 11' to 12'
1126740 GustBuster™ Bolt On - 12' to 13'
2. 1700400 Self-Tapping Screw - 3/8" x 1"
3. 1705992 Aluminum Spacer - 1/2" x 3/8" x 1/4"
4. 1704371 Flanged Hex Nut - 3/8"
NOTE: Where 3/8" x 1" self-tapping screws
use nuts on interior side, if possible, and drill 13/32" holes. If
interior side of trailer is not accessible, self-tapping screws
used without nuts require minimum wall thickness of 3/16".
Drill 5/16" holes.
STEP 1: Roll tarp open against tarp stops. Place mark below top
rail at 1/4 length and 3/4 length of trailer. If installing a
third cord, mark 1/2 length also.
1/2
length
1/4
length
3
2
are used,
2
3/4
length
1
4
NOTE: Tarp will open and close freely under GustBuster™ Tarp Cord.
STEP 2: On tarp stop side of trailer, determine vertical rows of
rivets nearest to marks below top rail. Drill hole between
two rivets, just below trailer frame.
STEP 3: Roll tarp toward latchplate side and let roll tube hang at
its lowest point. On latchplate side, locate row of rivets
directly across trailer from selected row of rivets on tarp
stop side. Drill hole between two rivets, just below lower
edge of tarp.
drill hole
between
rivets
TIP: To confirm selected rows of rivet placement directly across
from each other on trailer, count rivet rows from front-passenger
side of trailer to selected row. Count an equal number of rows
from front-driver side.
P/N 1126168 Rev. C
not to scale
1/4
length
mark
rivets
drill hole
between
rivets
rivets
