Assembly Instructions: Kit #9

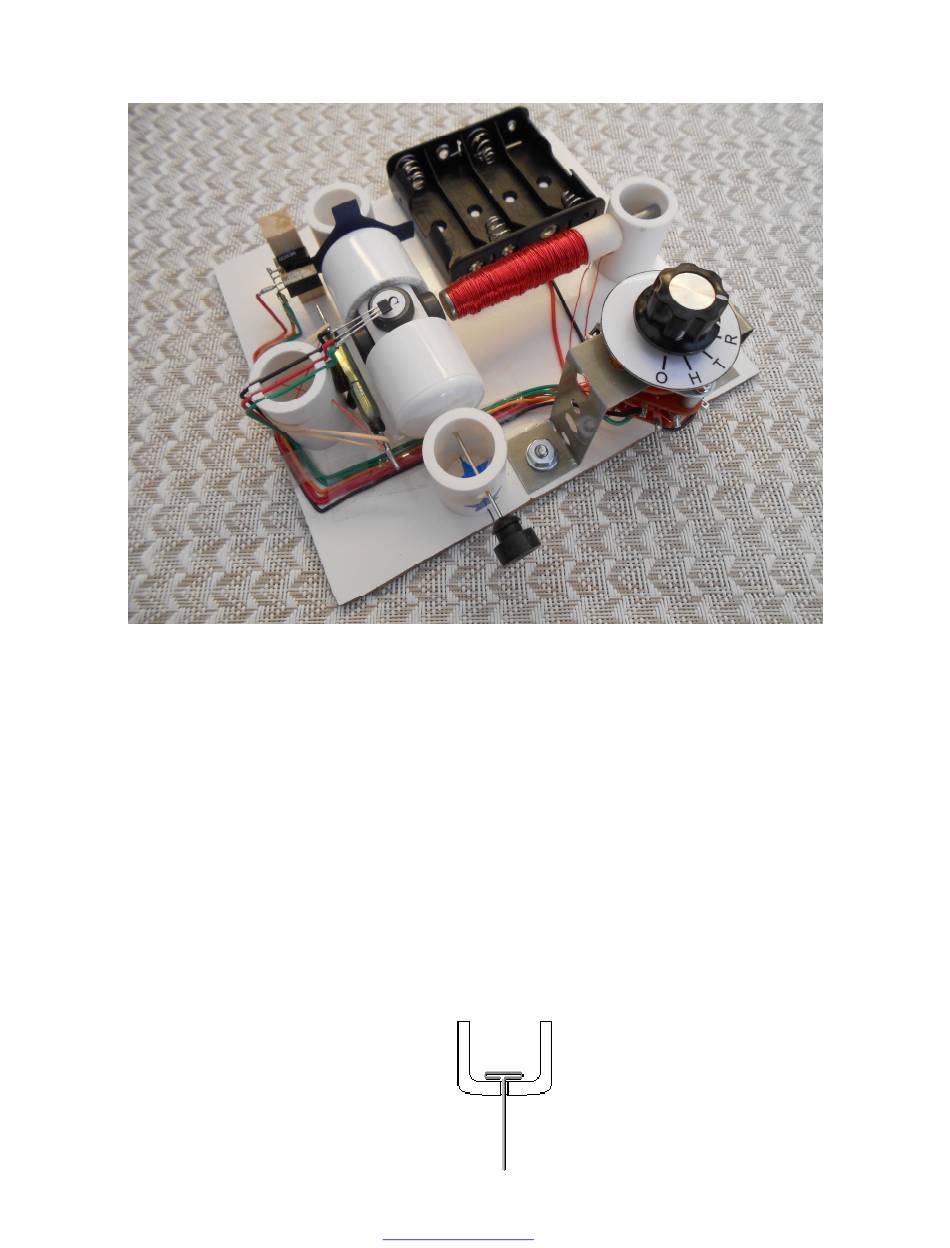

Kit #9 is essentially Kit #8 where with a simple turn of the knob you can switch between four

different motors:

R – Regular reed switch motor

T – Reed switch motor with the transistor

H – Hall Effect motor

O – Motor with optical control

If you are adding the switch to already assembled Kit #8 please note the revised steps on

attaching the Hall Effect switch and the resistors.

1. Insert the T-pin into one of the caps.

Assembly instructions for kit #9

♦

www.simplemotor.com
