Assembly Instructions: Kit #6

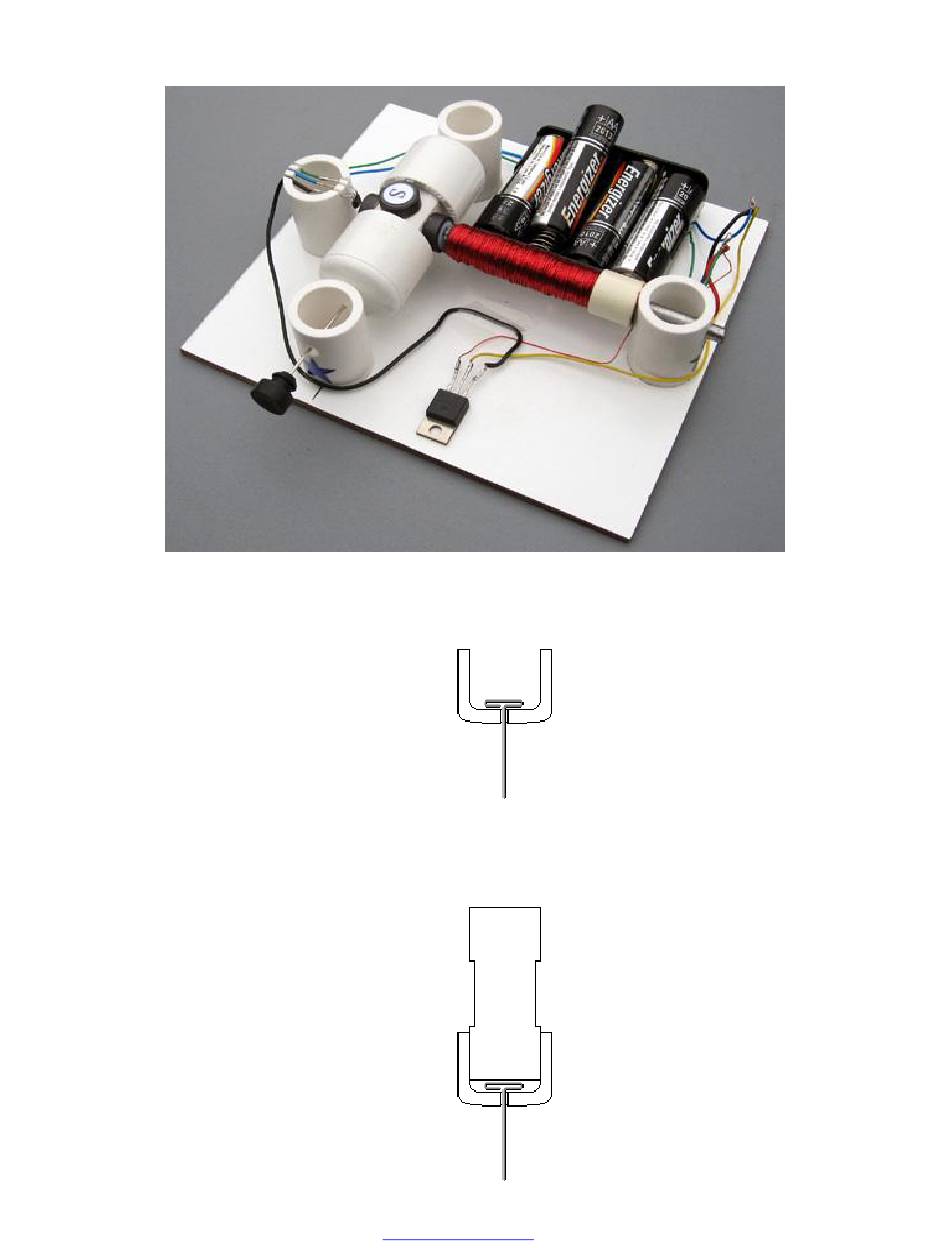

1. Insert the T-pin into one of the caps.
2. Insert the rotor core into the same cap as shown below. Apply some pressure to push the
rotor core approximately 1/2" (10-12 mm) into the cap.
Assembly instructions for kit #6
All rights reserved. 2001 Simple Motors, LLC ♦
♦
www.simplemotor.com
1
Advertisement
Related Manuals for Simple Motors Kit 6
Summary of Contents for Simple Motors Kit 6
- Page 1 2. Insert the rotor core into the same cap as shown below. Apply some pressure to push the rotor core approximately 1/2" (10-12 mm) into the cap. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 2 You may do it before attaching the magnets to the rotor. It is recommended to use regular white glue or a glue stick on the labels for better results. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 3 You can glue different things to the outer flat surface of the plug. Try to be accurate, redo this step if necessary. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 4 Test the electromagnet! Connect one wire to "+" and another wire to "-" of the battery. If electromagnet is assembled correctly the head of the nail should attract metal objects such as paper clips, small nails, knife blade, etc. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 5 Hall Effect IC cool off, and then try it again. Only solder one lead at a time and allow the device to cool before soldering the next connection. Use the same precautions when soldering the transistor. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 6 1/8" (3 mm) or closer. Check the rotation of the rotor to make sure that the magnets do not hit the Hall Effect switch. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 7 4 voltages, but you will need to find appropriate connection points for each voltage setting. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 8 If the motor works, remove the batteries and solder these wires. You may tape the wires to the board using scotch tape. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
- Page 9 CAUTION: Do not leave the motor connected to the batteries if the rotor is stalled. High current through the transistor will make it very hot. It may burn your fingers if you touch it and eventually may destroy the transistor. Assembly instructions for kit #6 All rights reserved. 2001 Simple Motors, LLC ♦ ♦ www.simplemotor.com...
