ICT International HFM1 Manual

Heat flux meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

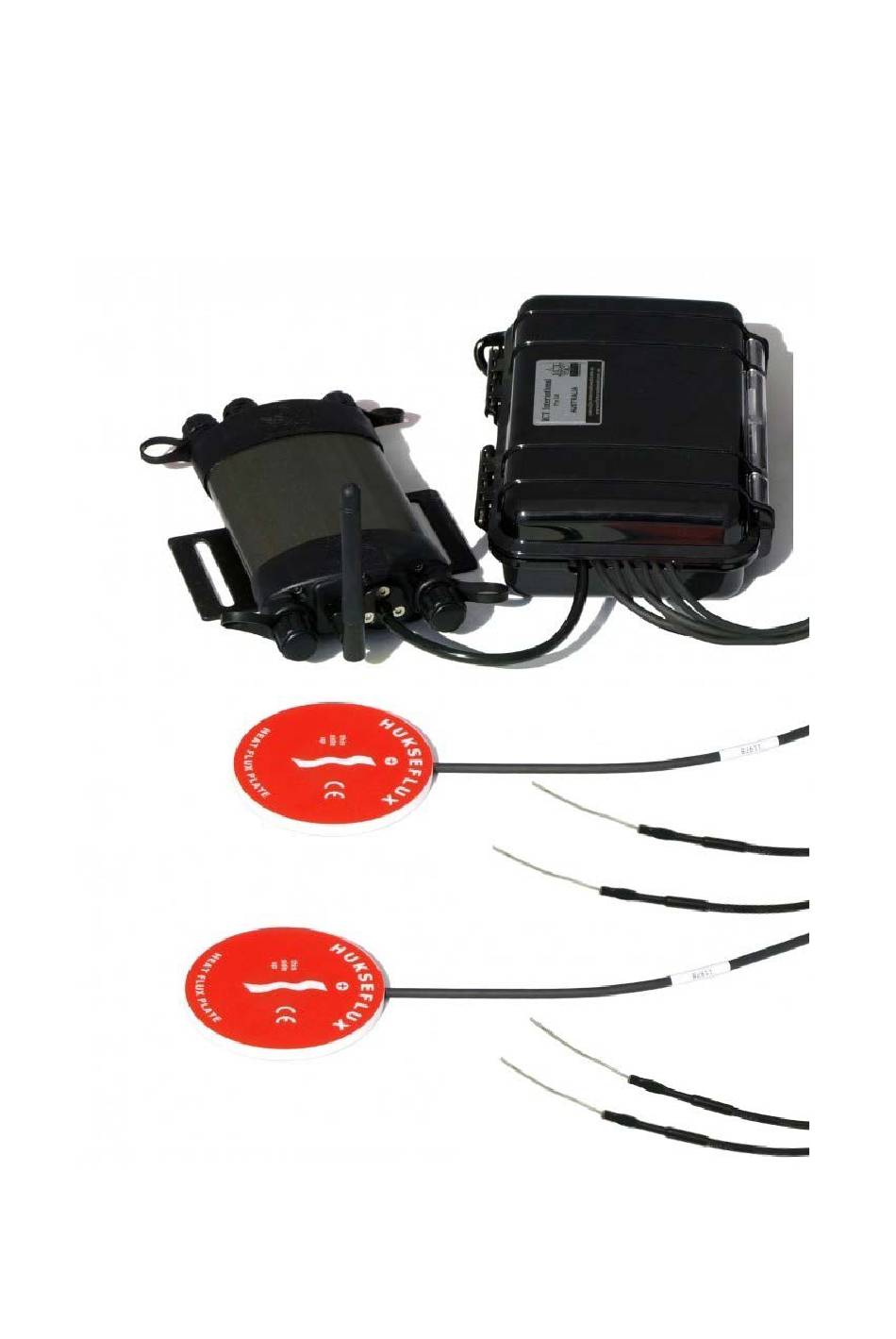

HFM1
Heat Flux Meter
Version VI 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HFM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICT International HFM1

Summary of Contents for ICT International HFM1

  • Page 1 HFM1 Heat Flux Meter Version VI 2018...

  • Page 2: Product Warranty

    (12) months from date of shipment unless otherwise specified. Products not manufactured, but that are re-sold by ICT International, are warranted only to the limits extended by the original manufacturer. Batteries, fine-wire thermocouples, desiccant,...

  • Page 3: Product Assistance

    It is the customers’ responsibility to comply with all international shipping laws and regulations, and those domestic shipping laws and regulations that apply to your country. ICT International will not be held liable for any sanctions or charges laid against you for not complying with such legislation or regulations.

  • Page 4: Table Of Contents

    Connecting Power via Solar Panel ..................11 Connecting sensors to the HFM1 ..............12 Additional Information on the Break-Out Box ..........13 Install the HFM1 Software & USB Driver ............14 Turn the HFM1 On ....................15 Connecting to the HFM1 .................. 16 Connect via MCC Mini ..................

  • Page 5: Introduction

    The output from the HFP01 sensor sensors is W/m and for the temperature sensors is °C. The HFM1 is powered by an internal battery for short term data collection, and can be charged using a solar panel or mains power for uninterrupted continuous data collection.

  • Page 6: Hfm1 Software System Requirements

    HFM1 Software System Requirements 2.1 Hardware Minimum Recommended System Specifications: Intel Atom 1.66 GHz or AMD equivalent and 1GB RAM or higher. 2.2 Software The ICT Instrument software is compatible with the following Operating Systems: Windows 7 Windows 8 & 8.1...

  • Page 7: Charging The Hfm1 Internal Battery

    Connecting a Power Supply to the Instrument on page 10, 11 and 12. An external power supply should be connected to the HFM1 in the field. The unique power-bus plug design was developed by ICT International to simplify the electrical wiring process.

  • Page 8: Connecting A Power Supply To The Instrument

    3.1 Connecting a Power Supply to the Instrument 3.1.1 Individual Power Supply Connections Enabling better research outcomes in soil, plant & environmental monitoring.

  • Page 9: Connecting Power Directly Via Ch24 Power Supply

    (for days to months at a time) is not recommended as this can shorten the life of the internal battery. ICT International recommend using a solar panel directly connected (with no external battery backup in parallel) wherever possible; or a timer switch to turn off external power for 8-12 hours daily to simulate a solar panel during the day and night.

  • Page 10: Connecting Power Via Usb Cable To A Laptop/Pc

    3.1.3 Connecting Power via USB cable to a laptop/PC Enabling better research outcomes in soil, plant & environmental monitoring.

  • Page 11: Connecting Power Via Solar Panel

    3.1.4 Connecting Power via Solar Panel Enabling better research outcomes in soil, plant & environmental monitoring.

  • Page 12: Connecting Sensors To The Hfm1

    Connecting sensors to the HFM1 HFM1 sensors are wired into the logger break-out box channel terminals as detailed below. HFM1 sensors are wired at ICT. Logger Instrument Channel Thermistor excitation reference Spare Single Ended Input HFP01-1 High/+ (Positive Signal) HFP01-1 Low/- (Negative Signal)

  • Page 13: Additional Information On The Break-Out Box

    4.1 Additional Information on the Break-Out Box When your HFM1 arrives from ICT International you do not have to change any of the break-out box settings, having already been configured for HFP01 and THERM- MICRO sensors. The Break-Out box should have the Power Selector Switch always set to Internal Battery.

  • Page 14: Install The Hfm1 Software & Usb Driver

    Install the HFM1 Software & USB Driver Insert the supplied USB drive and run Autorun.exe. Choose Software (a) then choose ICT Instrument Software (b). Follow the on-screen prompts until the finished installation screen appears. To install the USB driver, choose USB Driver (c) and wait for the installation to complete.

  • Page 15: Turn The Hfm1 On

    Turn the HFM1 On To charge and turn on your HFM1, connect the Instrument to a computer via a USB cable. Alternatively, the HFM1 can either be turned on manually by pressing the power button or automatically by connecting an external power supply.

  • Page 16: Connecting To The Hfm1

    Connecting to the HFM1 Connect the USB cable to the instrument and the computer. The HFM1 will automatically be detected by the computer, as with any USB device. Open ICT Instrument Software and Search for Devices. Double-click the instrument in the list to connect to it, or select it and click ‘Connect’.

  • Page 17: Connect Via Mcc Mini

    Connect via MCC Mini Ensure that the HFM1 is on. Connect the MCC Mini to your computer, open ICT Combined Instrument software. Tick ‘Auto RF Discover’ and then Search for Devices. The MCC Mini should appear on the list, it will then automatically search for nearby ICT Instruments.

  • Page 18: Sensor Configuration

    Sensor Configuration 8.1 Channel Configuration Channel configuration allows you to select a conversion table or script to apply to an input channel. Typically, the appropriate scripts for the sensors will be pre-loaded and configured. 8.2 Measurement Suspend and Time Delay This option allows you to set a time for the instrument to begin logging.

  • Page 19: Conversion Configuration

    8.4 Advanced Configuration The Advanced Configuration section is used to combine 2 single-ended inputs into a single differential input. This should not be altered unless instructed to do so by ICT International technical support. 8.5 SD Card Logging Options Options for additional parameters to be logged to the data file. By default, all these options are enabled.

  • Page 20: Download Data

    Download Data The Data tab can be used for basic data visualisation, SD card management, and to download data files from the instrument. Data is stored on the MicroSD card in csv format. The MicroSD card can also be removed from the logger and read by a computer.
  • Page 21 Manage SD displays the content of the instrument SD card. Refresh List loads the list of files currently present on the SD card. Download File downloads the selected file to the location of your choice. Rename File allows you to change the name of the selected file. Note that if the instrument data file is renamed a new file will be created for measurements from that point onward.

  • Page 22: Installation Of The Hfm1

    Installation of the HFM1 10.1 Location of the measurement area The HFM1 should be installed such to ensure a result which is representative of the element being measured, ideally where one-dimensional heat flow perpendicular to the exterior surfaces occurs. Infrared thermography can be used to assist determine the characteristics of the building component when the internal configuration of the component is unknown.

  • Page 23: Mounting The Therm Temperature Sensors

    Check the match of absorptance of the covered HFT with that of the surrounding area by comparing the image or radiometer output of each area after a stabilization time of at least 15 min. 10.3 Mounting the THERM Temperature sensors 10.3.1 Permanent Installation Flush mount temperature transducers by burying them at the same depth that the sensor is thick.

  • Page 24: General Theory Of The Measurement

    0.5°C. HFP01 is the world's most popular sensor for heat flux measurement through building envelopes. The user of the HFM1 is supposed to work according to the relevant standards and perform data analysis in accordance with these standards.
  • Page 25 List of symbols Heat flux Φ Thermal conductivity of the surrounding medium λ W/mK or object on which the sensor is mounted Voltage Output HFP01 Sensitivity µV/Wm Thermal conductivity dependence of E mK/W λ Time Surface Area Electrical Resistance Ω Thermal Resistance Temperature Temperature Dependence...

  • Page 26: Introduction And General Theory

    Introduction and General Theory HFP01 is the world’s most popular sensor for heat flux measurement in the soil, through walls and building envelopes. By using a ceramic-plastic composite body the total thermal resistance is kept small. HFP01 serves to measure the heat that flows through the object in which it is incorporated or on which it is mounted.
  • Page 27 Figure 1 Drawing of HFPO1 sensor Figure 2 HFP01 heat flux plate dimensions: 1. Sensor area. 2. Guard of ceramic-plastic composite. 3. Cable, standard length is 5m. All dimensions are i Enabling better research outcomes in soil, plant & environmental monitoring.
  • Page 28 HFP01 SENSOR SPECIFICATIONS (nominal) 50 µV/W. m (exact value on calibration certificate) cal = 0, Tcal =20°C Sensor thermal 0.8 W/mK conductivity Sensor thermal < 6.25x10 resistance R Response time ± 3 min (equals average soil) (nominal) Range +2000 to -2000 W.m Non stability <...

  • Page 29: Ce Declaration Of Conformity

    11.1 CE declaration of conformity According to EC guidelines 89/336/EEC, 73/23/EEC and 93/68/EEC We: Hukseflux Thermal Sensors Declare that the products: HFP01 and HFP03 Are in conformity with the following standards: Emissions: Radiated: EN 55022: 1987 Class A Conducted: EN 55022: 1987 Class B Immunity: 801-2;...
  • Page 30 www.ictinternational.com sales@ictinternational.com.au Phone: 61 2 6772 6770 PO Box 503, Armidale, NSW, 2350, Australia.
