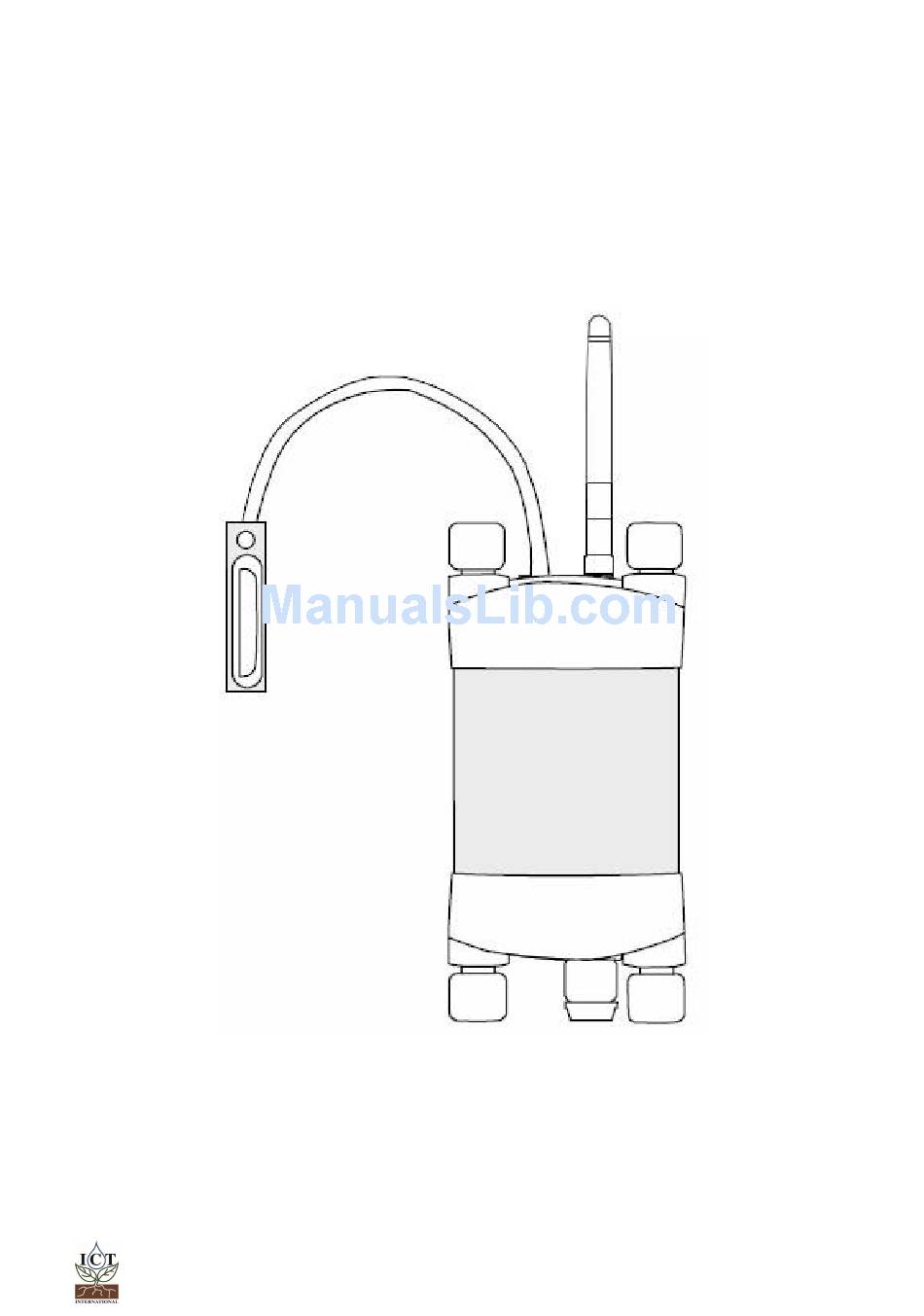

- Page 1 Soil Moisture Meter January 2018 Enabling better global research outcomes in soil, plant & environmental monitoring.
-
Page 2: Table Of Contents
3.1.5 Connecting Power via External 12V Battery (Field Operation) ..............8 Connecting sensors to the SMM ........................9 Additional Information on the Breakout Box ....................9 Install the SMM Software & USB Driver ......................10 Turn the Instrument On ........................... 11 Connect to the Instrument ........................... 12 Connect Via USB ............................ -
Page 3: Introduction
1. Introduction The SMM Soil Moisture Meter is a complete system for collecting and storing data from up to ten sensors in the field or in the laboratory. The SMM is equipped with an internal battery which provides power to the instrument as well as the sensors. A fully charged battery should have the capacity to provide several hours of data collection in the field before recharging is required. -
Page 4: Instrument Specifications
Instrument Specifications Instrument Logging Analogue Channels Up to 10 single ended/5 differential Resolution 0.00001V – 24-Bit Accuracy 0.001V Sampling Frequency 10Hz Data Communications USB, 2.4GHz Wireless RF. Data Storage MicroSD card; SD, SDHC and SDXC compatible. FAT32 Format. Software Compatibility Windows 7, 8, 8.1 &... -
Page 5: System Requirements
2. System Requirements Hardware The ICT Instrument software does not require a powerful computer. Minimum Recommended System Specifications: Intel Atom 1.66 GHz and 1GB RAM or higher. Software The ICT Instrument software is compatible with the following Operating Systems: a. Windows 7 b. -
Page 6: Charging The Smm Internal Battery
24V power supply (for example, the ICT CH24 100 - 240Volts AC Mains to 24Volts DC power supply adapter). The SMM accepts 8 to 30 volts DC input, maximum charge rate of 200mA is active when the external voltage rises above 16 Volts DC. -
Page 7: Connecting A Power Supply To The Instrument
Connecting a Power Supply to the Instrument 3.1.1 Individual Power Supply Connections Note: The SMM Soil Moisture Meter is non-polarised. Enabling better global research outcomes in soil, plant & environmental monitoring. -
Page 8: Connecting Power Via Usb Cable To A Laptop/Pc
3.1.2 Connecting Power via USB cable to a 3.1.3 Connecting Power Directly via CH24 laptop/PC Power Supply USB Cable Laptop/PC 3.1.5 Connecting Power via External 12V Battery 3.1.4 Connecting Power Directly via Solar (Field Operation) Panel (Field Operation) Enabling better global research outcomes in soil, plant & environmental monitoring. -
Page 9: Connecting Sensors To The Smm
Additional Information on the Breakout Box When your ICT Instrument and breakout box arrives from ICT International you do not have to change any settings. The ICT Instrument and breakout box has already been configured for your instrument and sensors. -
Page 10: Install The Smm Software & Usb Driver
The software installation will begin follow the screen prompts until the finished installation screen appears. To install the USB driver, choose USB Driver (c) and wait for the installation to complete. ICT Combined Instrument Software can also be downloaded from the ICT International Software Downloads Page. -
Page 11: Turn The Instrument On
6. Turn the Instrument On To turn on/charge your SMM Soil Moisture Meter connect the Instrument to a computer via a USB cable. Alternatively, the SMM can either be turned on manually by pressing the power button or automatically by connecting an external power supply. -
Page 12: Connect To The Instrument
7. Connect to the Instrument Connect Via USB Connect the USB cable to the instrument. Open ICT Instrument software and click “Search for Devices”, then click the named instrument from the Available Devices within the Device Selection Window. Click the connect button or double-click the instrument from the list. Enabling better global research outcomes in soil, plant &... -
Page 13: Connect Via Mcc Mini
Connect via MCC Mini Ensure that the SMM is on. Connect the MCC Mini to your computer, open ICT Combined Instrument software. Tick ‘Auto RF Discover’ and then Search for Devices. The MCC Mini should appear on the list, it will then automatically search for nearby ICT Instruments. -
Page 14: Set The Measurement Parameters
8. Set the Measurement Parameters When you connect to an instrument, the Channels screen will be displayed. This shows the current measurement status, when the next measurement will take place, the currently configured channels, instrument serial number/name/comment, battery status, external power status, SD card status, and the instrument time and date. -
Page 15: Configuration
In manual mode a measurement will be taken whenever the Start Measurement button on the Channels screen is clicked. If the SMM is in live mode, measurements can be taken from every 250ms to 60 seconds. ICT recommend connecting the SMM to a continuous external power supply (eg: a CH24) when using live mode, as this significantly increases the power usage of the logger. -
Page 16: Measurement Suspend And Time Delay
8.1.3 Measurement Suspend and Time Delay This option allows you to set a time for the instrument to begin logging. This can be handy for completely setting up an instrument prior to installation in the field. Logging can be delayed for up to 24 hours (23:59:59), at which point it will begin to log at the set interval. -
Page 17: Conversion Configuration
Conversion Configuration allows conversion scripts and tables to be added. These can be assigned to a channel in Channel Configuration. When your instrument arrives from ICT International it will be preloaded with all necessary tables and/or scripts. 8.2.3 Advanced Configuration The Advanced Configuration section is used to combine 2 single-ended inputs into a single differential input. -
Page 18: Lookup Tables And Scripts
Lookup Tables commonly used for the ICT Instrument described in this manual are found in Appendix 11.2. If you cannot find the table or script corresponding to your sensor please contact ICT International. Lookup tables can be imported/exported as CSV, where column A is mV and column B is the converted value. - Page 19 User Scripts allow the conversion of millivolt (mV) sensor output into meaningful measurements, and are particularly useful if the relationship between mV and the converted value is non-linear. Scripts can also be used for linear relationships. User scripts can be imported/exported as .uscr files, which can be opened in notepad or any similar program.
- Page 20 Square root. sqrt Example: r2 = sqrt r1 Natural log. Example: res = log r5 Base 10 log. log10 Example: r2 = log10 r1 Base 2 log. log2 Example: r3 = log2 r1 Exponent e^x Example: res = exp r2 Round to the nearest integer.
-
Page 21: Download Data
10. Download Data The Data tab can be used for basic data visualisation, SD card management, and to download data files from the instrument. Data is stored on the MicroSD card in csv format. The MicroSD card can also be removed from the logger and read by a computer. - Page 22 Manage SD displays the content of the instrument SD card. Refresh List loads the list of files currently present on the SD card. Download File downloads the selected file to the location of your choice. Rename File allows you to change the name of the selected file. Note that if the instrument data file is renamed a new file will be created for measurements from that point onward.
-
Page 23: Appendices
11. Appendices 11.1 User Scripts ................... 36 11.1.1 GS-1 – Mineral Soil ..............36 11.1.2 GS-1 – Soilless Media..............36 11.1.3 10HS – Mineral Soil ..............36 11.2 Lookup Tables ................37 11.2.1 MP306 & MP406 ................. 37 11.2.2 SP-110..................37 11.3 Sensor Manuals ................ -
Page 24: User Scripts
11.1 User Scripts 11.1.1 GS1 – Mineral Soil <User Script> GS1Mineral-VWC% GS1Mineral-VWC% r1 = curchan * 0.000494 r2 = r1 - 0.554 res = r2 * 100 11.1.2 GS1 – Soilless Media <User Script> GS1SoilessM-VWC% GS1SoilessM-VWC% r1 = curchan * 0.000591 r2 = r1 - 0.611 res = r2 * 100 11.1.3 10HS –... -
Page 25: Lookup Tables
11.2 Lookup Tables 11.2.1 MP306 & MP406 <CSV Table> MP406-VSW% VSW% 1005 1015 1025 1035 1045 1055 1065 1075 1085 1105 1160 11.2.2 SP-110 <CSV Table> SP-110 W m^-2 1000 5000 Enabling better global research outcomes in soil, plant & environmental monitoring. -
Page 26: Mp406 & Mp306 Sensor Manual
11.3 MP406 & MP306 Sensor Manual Introduction 39 Operation Hand Held Moisture Probe Meter 39 Data Logging or Irrigation Control 39 General Installation Cable Length Power 40 Theory of Operation 40 Theory 40 Results 41 Definitions Calibration General Linear Calibration Polynomial Calibration Polynomial Lookup Table Wiring 44... -
Page 27: Cable Length
The MP406 can be installed by drilling a close-fitting hole into the soil profile, (either at an angle or vertically – suitable augers are available from ICT International) or it can be installed horizontally from a larger hole or soil pit. Care must be taken to ensure the needles are fully in contact with the soil profile after installation. -
Page 28: Theory Of Operation
2. Theory of Operation The MP406 has a high frequency moisture detector which uses the standing wave principle to indicate the ratio of two or more substances forming a body of material, each substance having a different electric constant (Ka). The moisture measurement of the material is based upon the fact that in a water/soil/air matrix, the dielectric constant is dominated by the amount of water present. - Page 29 The results from measurement of the absolute volumetric soil water percent (VSW%) using the MP406 when compared with TDR technology are given in Figure 2. This result is typical of the results obtained from comparative testing of the MP406 compared to TDR technology for a wide range of agricultural soils.
-
Page 30: Linear Calibration
3. Calibration General The results obtained from measurement of the absolute volumetric soil water content (VSW%) using the MP406 are expected to be within ± 2–5% of the actual soil moisture as determined in the laboratory by gravimetric and volumetric methods of determination. Recalibration is not expected to be necessary for most applications in most commonly occurring agricultural soils. -
Page 31: Polynomial Lookup Table
Polynomial Lookup Table Linearisation tables can be added to Data Loggers using the following data: VSW% mV MP406 VSW% mV MP406 0.00 55.00 1015 2.00 60.00 1025 5.00 65.00 1035 10.00 70.00 1045 15.00 75.00 1055 20.00 80.00 1065 25.00 85.00 1075 30.00... -
Page 32: Mechanical Diagram
4.1 Mechanical Diagram 4.2 Electrical and Mechanical Specifications Measurement 0–100 VSW% Range 1 VSW% after calibration to a specific soil type, or Accuracy ±5 VSW% using the supplied soil calibration Interface Input requirements: 9–18 V DC unregulated. Power consumption: 24 mA typical. Output signal: 0-1160mV for 0-100 VSW% Response Time Less than 0.5 seconds... -
Page 33: Contact Details
Contact Details www.ictinternational.com sales@ictinternational.com.au Phone: 61 2 6772 6770 Fax: 61 2 6772 7616 PO Box 503, Armidale, NSW, Australia, 2350. Enabling better global research outcomes in soil, plant & environmental monitoring.
