Turbo Cool Stand-Off Kit Installation Manual

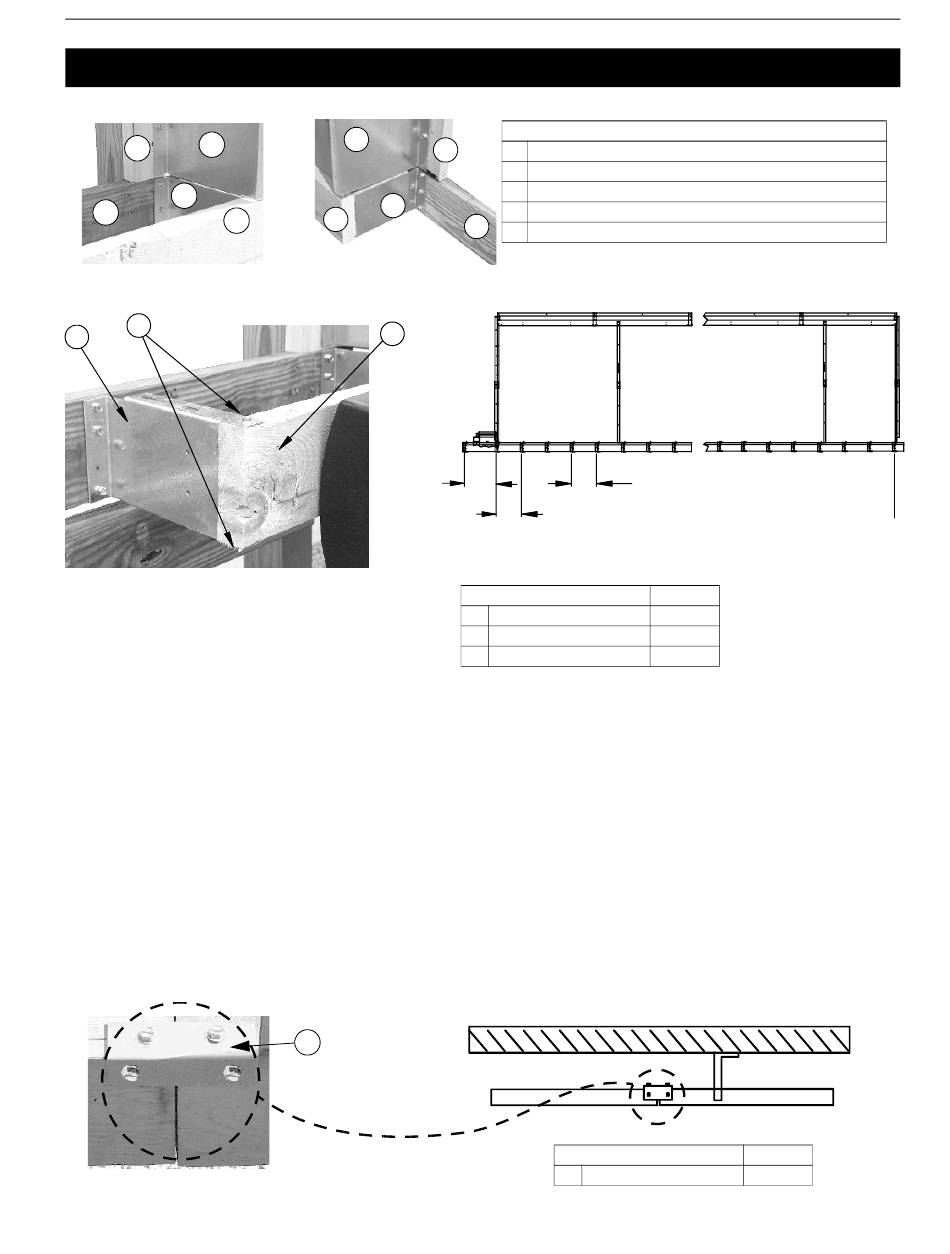

Bottom Brackets
1
A
2
B
C
1609-4 6/99
Figure 4. Sump End
1
3
Figure 7. Bottom Bracket Connection
Important!
1609-1 6/99
MV1609D
1
A
2
C
1609-7 6/99
Figure 5. Non-Sump End
2
20"
15"
MV1609-020 10/00
Put lag bolt in the top and the bottom of the Bottom Bracket, as shown
in Figure 7.
1. First Install Bottom Bracket on sump end, by aligning the Bottom Bracket with
side panels, see Figure 4.
2. Bottom Bracket should align with chalkline, see Figure 1, Dim C.
3. Install Bottom Brackets every 15'' except for non-sump end, shown in Figure 6.
4. Reverse the Bottom Bracket at the non-sump end and mount as shown in Figure 5.
5. Install trough mounting 2 x 6's the full length of system using Lag Screws
provided, shown in Figure 7. Use 2X Connecting Brackets (Item 1, Figure 8) to
join the 2 x 6s together.
1
Part Description
1 End Panel
2 Bottom End Bracket (to be reversed on non-sump end.)
A Side 2 x 4
B 2 x 6 Mounting Board
B
C 2 x 6 Trough Mounting Board
15" Bracket Spacing Typical
Figure 6. Bottom Bracket Spacing.
Lag Bolt Placement
1 Lag Bolt top and bottom 41561
2 Trough Mounting 2 x 6
3 Bottom Bracket
Lag Bolt Placement
1 2X Connector Bracket
Figure 8. Connect 2 x 6's with 2X Connector Brackets
Bottom Brackets
Part No.
43831
Part No.
44379
3
