Top Covers; End Panels - Chore-Time Turbo-Cool Installation Instructions Manual

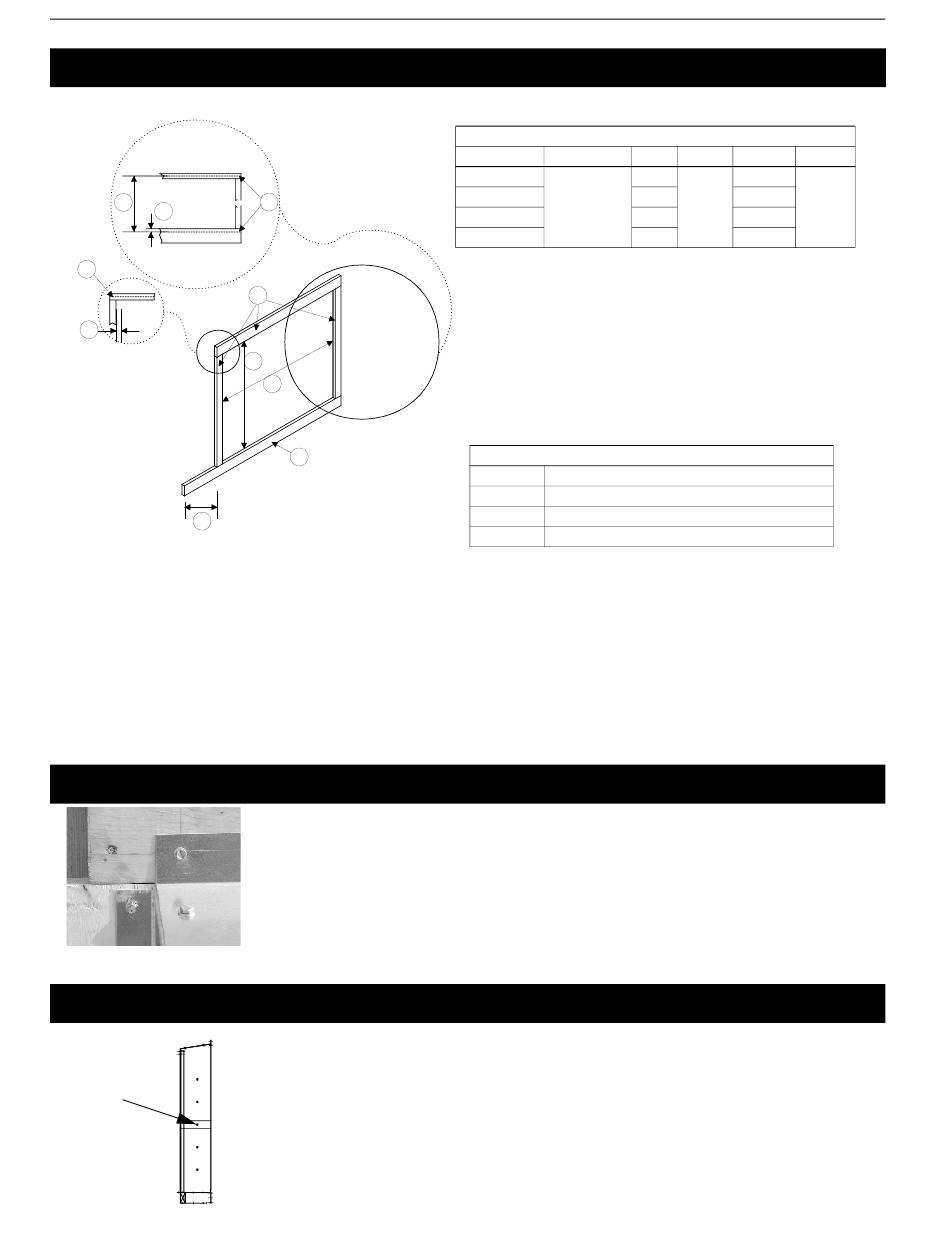

Recommended Framing and Installation
Recommended Framing and Installation
D
C
4
E
3
Important!
Note:

Top Covers

1609-3 6/99
Figure 2. Top Cover

End Panels

Bolt
Washer
Nut
Washer
Figure 3.
End Panel
M V 9 6 8 - 0 0 8 6 / 9 9
2
4
1
B
A
MV1609-006 6/99
2
Figure 1. Framing Detail
Secure the bottom 2 x 6 with lag bolts or proper concrete studs.
All 2 x 4s are to be secured with screws (not provided).
Do NOT secure the lumber with nails!
Install bottom mounting 2 x 6 approximately 3'' below the curtain opening to allow
for an adequate seal between the curtain and the building.
Once framing is completed, install the Inlet Curtain.
It is recommended to pull the curtain up to assure the Tunnel Inlet is
fully open.
Install top covers to framing.
Start first cover from sump end. Align holes in top cover as shown in Figure 1,
Dim E. 
Aligned on the chalk line 1-1/16'' from inside edge of side 2 x 4, then mount cover
to top 2 x 4.
1. Put the End Panels together using 1/4-20 hardware supplied. Be sure to adjust for
proper height of system. (End panels for 48'', 60'' and 72'' are adjustable. The 36''
systems have one piece End Panels.)
2. Install the End Panel to the Top Cover using 1/4-20 hardware.
3. Level end panel and lag to 2 x 4.
Turbo Cool Stand-Off Kit Installation Manual
Table 1. Inside Framing Dimensions
Pad Height A.
36'' 43''
48'' 55''
Pad Length
+ 2-1/8''
60'' 67''
72'' 79''
1. Install 2 x 4 and 2 x 6 framing to building
according to Table Dimensions.
2. Snap a chalk line on the bottom 2 x 6 Figure 1-
Item C, 9/16'' from the top edge going downward.
3. Measure upward from the chalk line on bottom 
2 x 6 using the measurement according to Table 1,-
Item D, then snap a chalk line.
Table 2. Recommended Framing Materials
1 2 x 4 Treated (optional 2 x 6)
2 2 x 6 Treated-Optional 2 x 8 Treated
3 Approximately 20'' overhang on sump end.
4 Chalkline
B. C. D. E.
44-3/4''
56-3/4''
9/16"" 1-1/16"
68-3/4''
80-3/4''
MV1609D
