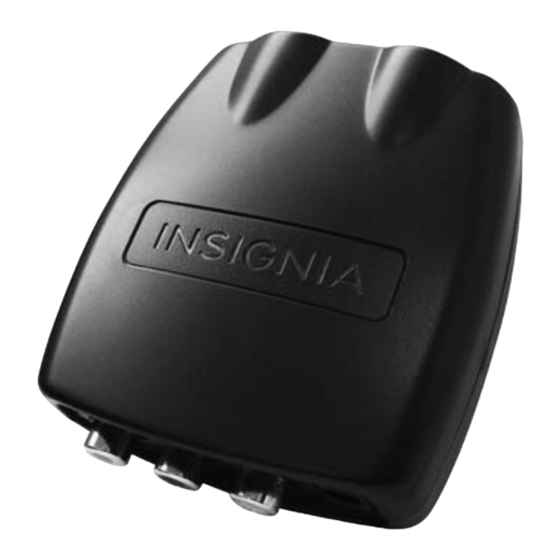

Insignia NS-HZ330 Quick Setup Manual

QUICK SETUP GUIDE
RCA to HDMI
Converter
NS-HZ330
PACKAGE CONTENTS
• Analog to HDMI Converter
• Power Adapter
• Quick Setup Guide
Note: RCA and HDMI cable not included and required for use.
Before using your new product, please read these instructions to prevent any damage.
FEATURES
• Allows easy connection of devices with AV components to any TV or
display with an HDMI input.
• HDMI output with selectable 720p/1080p output works with virtually all
TVs and displays with an HDMI input.
• Power adapter for constant use in any system.
• Supports NTSC/PAL TV formats.

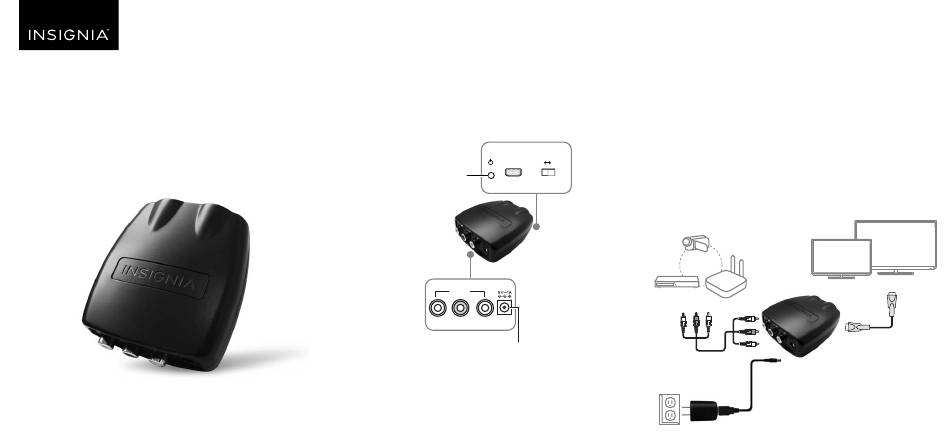

Top view
HDMI OUT 720P 1080P
Power-on indicator (green)
INPUT
VIDEO R-AUDIO-L
SETTING UP YOUR CONVERTER
Note: Before you install this device, turn off the audio/video device that you are
connecting.
1 Connect an AV cable (yellow, red, and white, not included) to the
input port on the converter, then connect it to the AV Out port on
your audio/video device.
2 Using an HDMI cable (not included), connect the converter's HDMI
output to a display device such as TV / LCD / Monitor that has HDMI
input.
3 Connect the AC power adapter to the DC jack on the converter, then
plug the power adapter into a wall outlet.
4 Turn on the connected devices and begin playback. If you are not
getting audio or video, check the connections and settings to make
sure that they are all correct.
5 Select either 720p or 1080p output via the switch on the converter.
If you are not sure, select 720p for maximum compatibility.
HD camera
Blu-ray/DVD player
AV cable
DC jack
(not included)
OR
Set-top box
Power adapter
(included)
Display or TV
HDMI cable
(not included)
