Insignia NS-HZ313 Quick Setup Manual

PACKAGE CONTENTS
• Optical/Coaxial Digital Audio-to-Analog Audio Converter
• Power adapter
• RCA stereo audio cable
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
FEATURES
• Converts digital audio to analog audio signals
• Optical or Coaxial Digital input selectable
• Perfect for connecting audio devices that only have digital audio
outputs to devices that only have analog audio inputs
• PCM stereo support

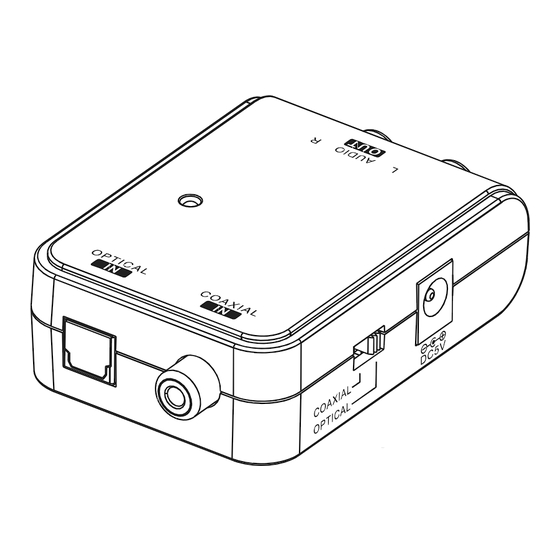

Top view Side view
Coaxial/Optical
input switch
Power-on indicator (green)
Quick Setup Guide |
Optical/Coaxial Digital-to-Analog Converter
SETTING UP YOUR CONVERTER
Note: Before you install this device, turn off the audio and video devices that you
are connecting.
If your digital audio source device, such as a TV, Blu-Ray player, or media
streaming device, has both Optical and Coaxial digital connections, select
the connection you prefer. If your source device only has one, use that
connection. Go to the Optical connection or Coaxial connection section
below, depending on the connection you chose.
Optical connection
1 Slide the input switch on the side of the converter to OPTICAL.
2 Connect a digital optical cable (not included) to the OPTICAL IN port on
the converter, then connect it to the Optical Out port on your audio
source device, such as your TV, Blu-ray player, or media streaming
device.
Caution: Digital optical cables are fragile. DO NOT BEND THE CABLE.
3 Connect the included RCA stereo audio cable to the AUDIO OUT
DC jack
(R and L) jacks on the converter, then
connect it to the Audio In (R and L) jacks on
your stereo, soundbar, headphones or
other audio playback device.
4 Connect the power cable to the DC jack
on the converter, then plug the power
adapter into a wall outlet.
Source device
TV
OR
Streaming
device
Blu-ray/DVD player
NS-HZ313
RCA cable (included)
Digital Optical cable
(not included)
